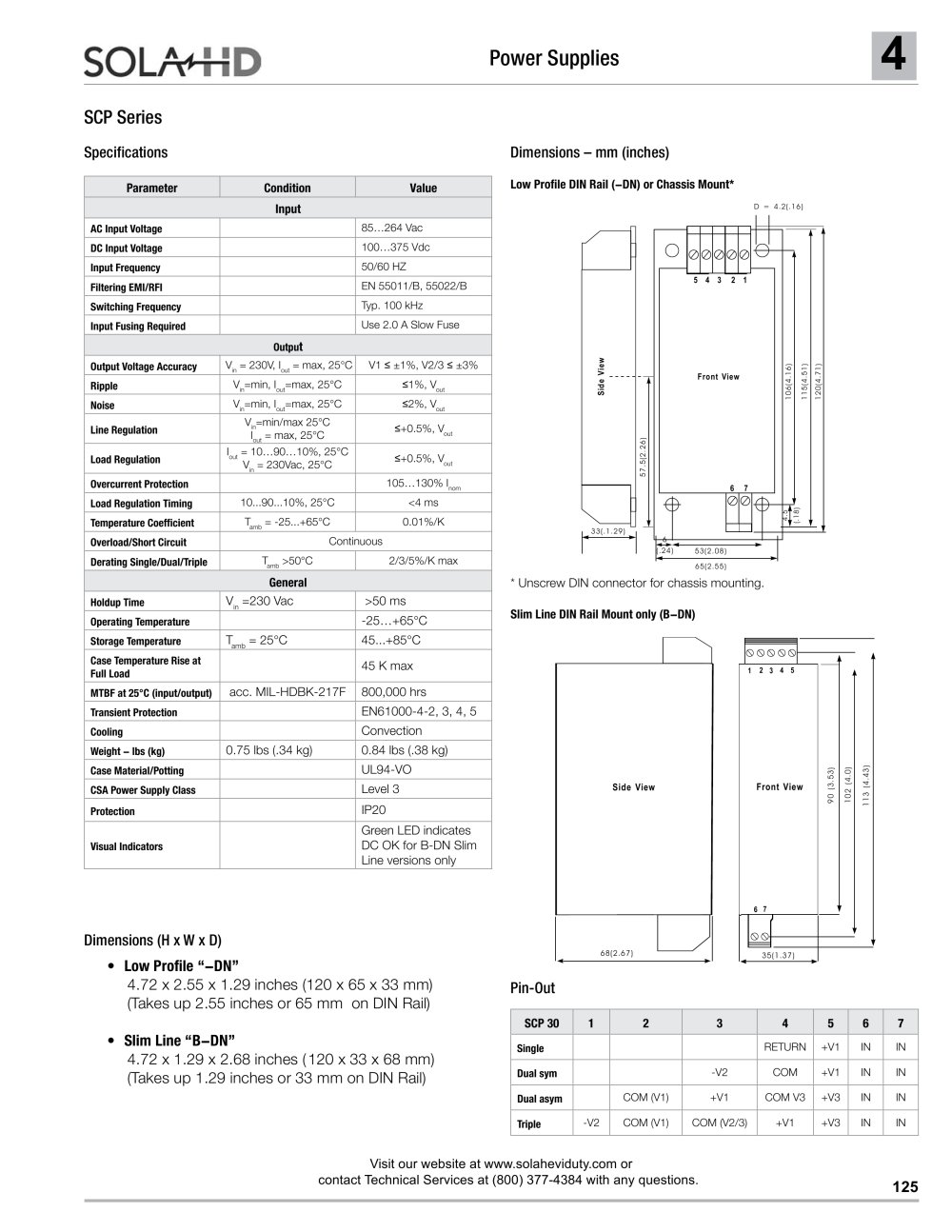

4
SOL/V44D
Power Supplies
SCP Series Specifications
Dimensions - mm (inches)
Low Profile DIN Rail (-DN) or Chassis Mount*
Parameter
Condition
Value
Input
AC Input Voltage
85...264 Vac
DC Input Voltage
100...375 Vdc
Input Frequency
50/60 HZ
Filtering EMI/RFI
EN 55011/B, 55022/B
Switching Frequency
Typ. 100 kHz
Input Fusing Required
Use 2.0 A Slow Fuse
Output
Output Voltage Accuracy
Vin = 230V, Iout = max, 25°C
V1 < ±1%, V2/3 < ±3%
Ripple
Vin=min, Iout=max, 25°C
<1%, Vout
Noise
Vin=min, Iout=max, 25°C
<2%, Vout
Line Regulation
Vin=min/max 25°C I"out = max, 25°C
<+0.5%, Vout
Load Regulation
Iout = 10...90...10%, 25°C °u V = 230Vac, 25°C
in '
<+0.5%, Vout
Overcurrent Protection
105...130% Inom
Load Regulation Timing
10...90...10%, 25°C
<4 ms
Temperature Coefficient
Tmb = -25...+65°C
0.01%/K
Overload/Short Circuit
Continuous
Derating Single/Dual/Triple
Tamb >50°C
2/3/5%/K max
General
Holdup Time
Vin =230 Vac
>50 ms
Operating Temperature
-25...+65"C
Storage Temperature
T b = 25°C
amb
45...+85°C
Case Temperature Rise at Full Load
45 K max
MTBF at 25°C (input/output)
acc. MIL-HDBK-217F
800,000 hrs
Transient Protection
EN61000-4-2, 3, 4, 5
Cooling
Convection
Weight - lbs (kg)
0.75 lbs (.34 kg)
0.84 lbs (.38 kg)
Case Material/Potting
UL94-VO
CSA Power Supply Class
Level 3
Protection
IP20
Visual Indicators
Green LED indicates DC OK for B-DN Slim Line versions only
o
e
0
0
0
0
0
0
0-
* Unscrew DIN connector for chassis mounting. Slim Line DIN Rail Mount only (B-DN)
3E
(1.37) _
Dimensions (H x W x D)
• Low Profile "-DN"
4.72 x 2.55 x 1.29 inches (120 x 65 x 33 mm) (Takes up 2.55 inches or 65 mm on DIN Rail)
• Slim Line "B-DN"
4.72 x 1.29 x 2.68 inches ( 120 x 33 x 68 mm) (Takes up 1.29 inches or 33 mm on DIN Rail)
Pin-Out
SCP 30
1
2
3
4
5
6
7
Single
RETURN
+V1
IN
IN
Dual sym
-V2
COM
+V1
IN
IN
Dual asym
COM (V1)
+V1
COM V3
+V3
IN
IN
Triple
-V2
COM (V1)
COM (V2/3)
+V1
+V3
IN
IN
Visit our website at www.solaheviduty.com or contact Technical Services at (800) 377-4384 with any questions.
