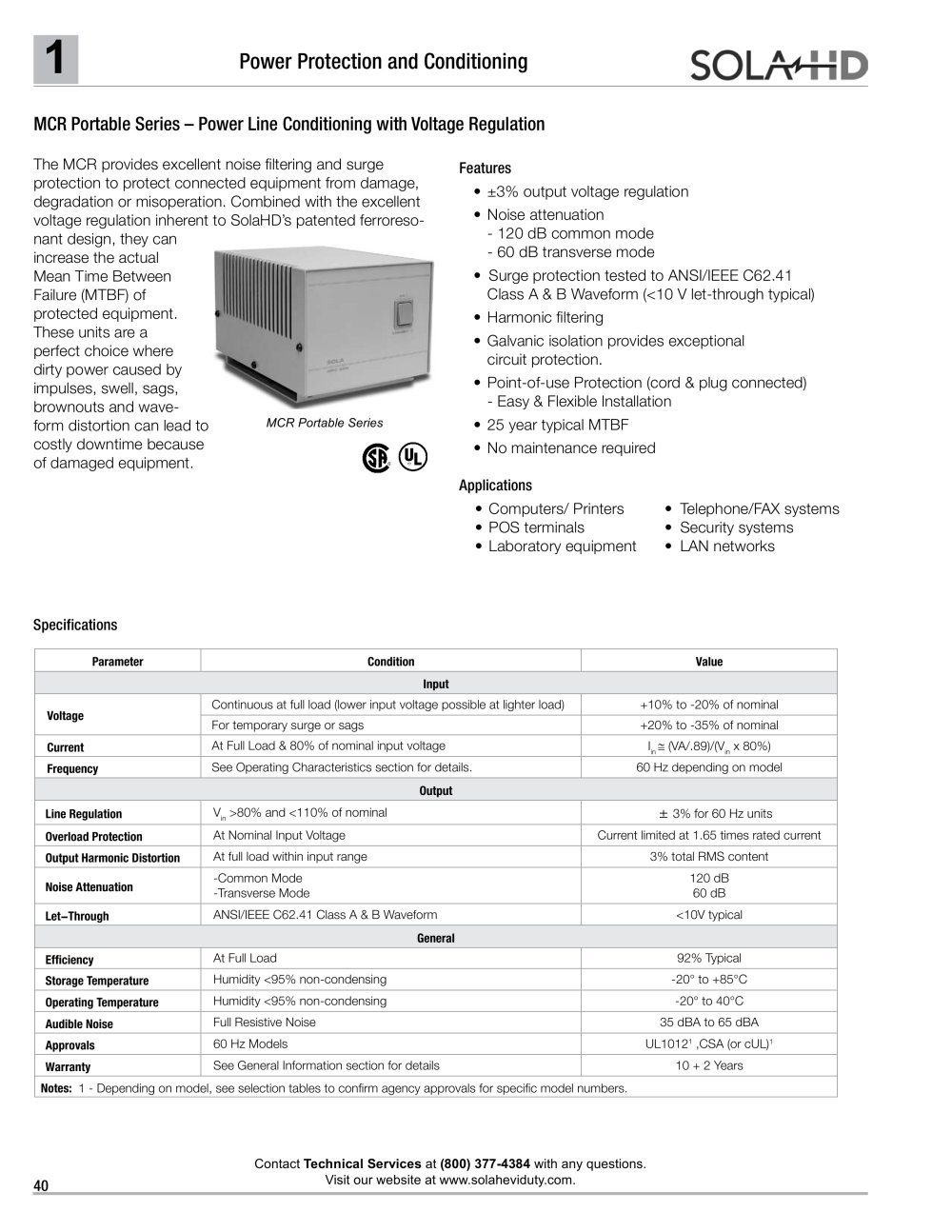

MCR Portable Series - Power Line Conditioning with Voltage Regulation

The MCR provides excellent noise filtering and surge protection to protect connected equipment from damage, degradation or misoperation. Combined with the excellent voltage regulation inherent to SolaHD's patented ferroreso-nant design, they can

Features

• ±3% output voltage regulation

• Noise attenuation

- 120 dB common mode

- 60 dB transverse mode

• Surge protection tested to ANSI/IEEE C62.41 Class A & B Waveform (<10 V let-through typical)

• Harmonic filtering

• Galvanic isolation provides exceptional circuit protection.

• Point-of-use Protection (cord & plug connected)

- Easy & Flexible Installation

• 25 year typical MTBF

• No maintenance required

increase the actual Mean Time Between Failure (MTBF) of protected equipment.

�95249

These units are a perfect choice where dirty power caused by impulses, swell, sags, brownouts and wave

MCR Portable Series

form distortion can lead to costly downtime because of damaged equipment.

Applications

• Computers/ Printers

• POS terminals

• Laboratory equipment

Telephone/FAX systems Security systems LAN networks

Specifications


Parameter	Condition	Value
Input
Voltage	Continuous at full load (lower input voltage possible at lighter load)	+10% to -20% of nominal
Voltage	For temporary surge or sags	+20% to -35% of nominal
Current	At Full Load & 80% of nominal input voltage	I_in = (VA/.89)/(V_\|n x 80%)
Frequency	See Operating Characteristics section for details.	60 Hz depending on model
Output
Line Regulation	V_in >80% and <110% of nominal	± 3% for 60 Hz units
Overload Protection	At Nominal Input Voltage	Current limited at 1.65 times rated current
Output Harmonic Distortion	At full load within input range	3% total RMS content
Noise Attenuation	-Common Mode -Transverse Mode	120 dB 60 dB
Let-Through	ANSI/IEEE C62.41 Class A & B Waveform	<10V typical
General
Efficiency	At Full Load	92% Typical
Storage Temperature	Humidity <95% non-condensing	-20° to +85°C
Operating Temperature	Humidity <95% non-condensing	-20° to 40°C
Audible Noise	Full Resistive Noise	35 dBA to 65 dBA
Approvals	60 Hz Models	UL1012¹ ,CSA (or cUL)¹
Warranty	See General Information section for details	10 + 2 Years
Notes: 1 - Depending on model, see selection tables to confirm agency approvals for specific model numbers.

Contact Technical Services at (800) 377-4384 with any questions. Visit our website at www.solaheviduty.com.
