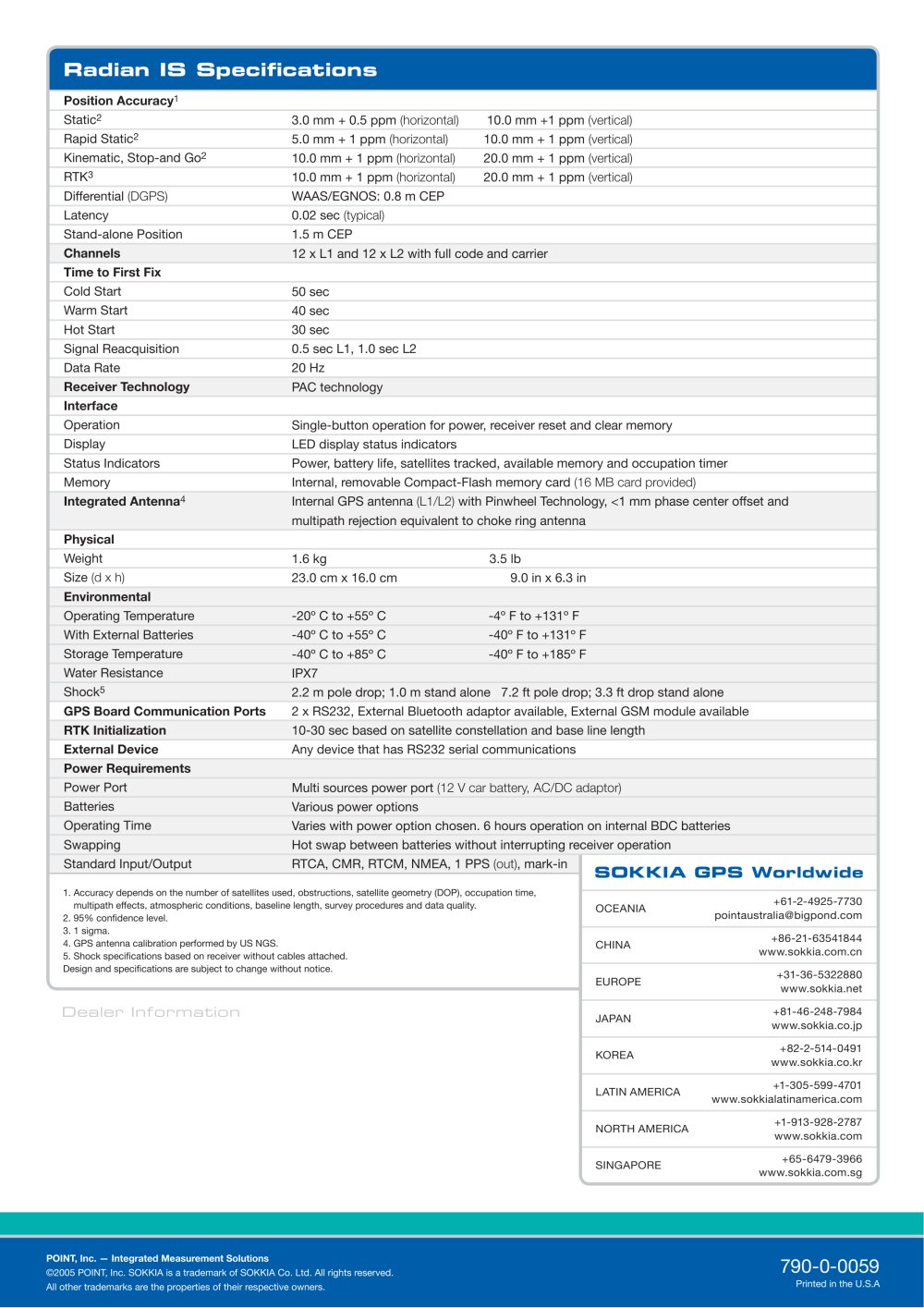

Radian IS Specifications


	Position Accuracy^
	Statics	3.0mm+0.5 ppm (horizontal) 10.0 mm +1 ppm (vertical)
	Rapid Statics	5.0 mm + 1 ppm (horizontal) 10.0 mm + 1 ppm (vertical)
	Kinematic, Stop-and Go²	10.0 mm + 1 ppm (horizontal) 20.0 mm + 1 ppm (vertical)
	RTK³	10.0 mm + 1 ppm (horizontal) 20.0 mm + 1 ppm (vertical)
	Differential (DGPS)	WAAS/EGNOS: 0.8 m CEP
	Latency	0.02 sec (typical)
	Stand-alone Position	1.5 m CEP
	Channels	12xL1and12xL2 with full code and carrier
	Time to First Fix
	Cold Start	50 sec
	Warm Start	40 sec
	Hot Start	30 sec
	Signal Reacquisition	0.5 sec L1, 1.0secL2
	Data Rate	20 Hz
	Receiver Technology	PAC technology
	Interface
	Operation	Single-button operation for power, receiver reset and clear memory
	Display	LED display status indicators
	Status Indicators	Power, battery life, satellites tracked, available memory and occupation timer
	Memory	Internal, removable Compact-Flash memory card (16MB card provided)
	Integrated Antenna*	Internal GPS antenna (L1/L2) with Pinwheel Technology, <1 mm phase center offset and multipath rejection equivalent to choke ring antenna
	Physical
	Weight	1.6 kg 3.5 lb
	Size (d x h)	23.0cmx16.0cm 9.0inx6.3in
	Environmental
	Operating Temperature	-20°Cto+55°C -4°Fto+131°F
	With External Batteries	-40°Cto+55°C -40°Fto+131°F
	Storage Temperature	-40°Cto+85°C -40°Fto+185°F
	Water Resistance	IPX7
	Shocks	2.2 m pole drop; 1.0 m stand alone 7.2 ft pole drop; 3.3 ft drop stand alone
	GPS Board Communication Ports	2 x RS232, External Bluetooth adaptor available, External GSM module available
	RTK Initialization	10-30 sec based on satellite constellation and base line length
	External Device	Any device that has RS232 serial communications
	Power Requirements
	Power Port	Multi sources power port (12 V car battery, AC/DC adaptor)
	Batteries	Various power options
	Operating Time	Varies with power option chosen. 6 hours operation on internal BDC batteries
	Swapping	Hot swap between batteries without interrupting receiver operation

Standard Input/Output

RTCA, CMR, RTCM, NMEA, 1 PPS (out), mark-in

SOKKIA GPS Worldwide

1. Accuracy depends on the number of satellites used, obstructions, satellite geometry (DOP), occupation time, multipath effects, atmospheric conditions, baseline length, survey procedures and data quality.

2. 95% confidence level.

3. 1 slgma.

4. GPS antenna calibration performed by US NGS.

5. Shock specifications based on receiver without cables attached. Design and specifications are subject to change without notice.
