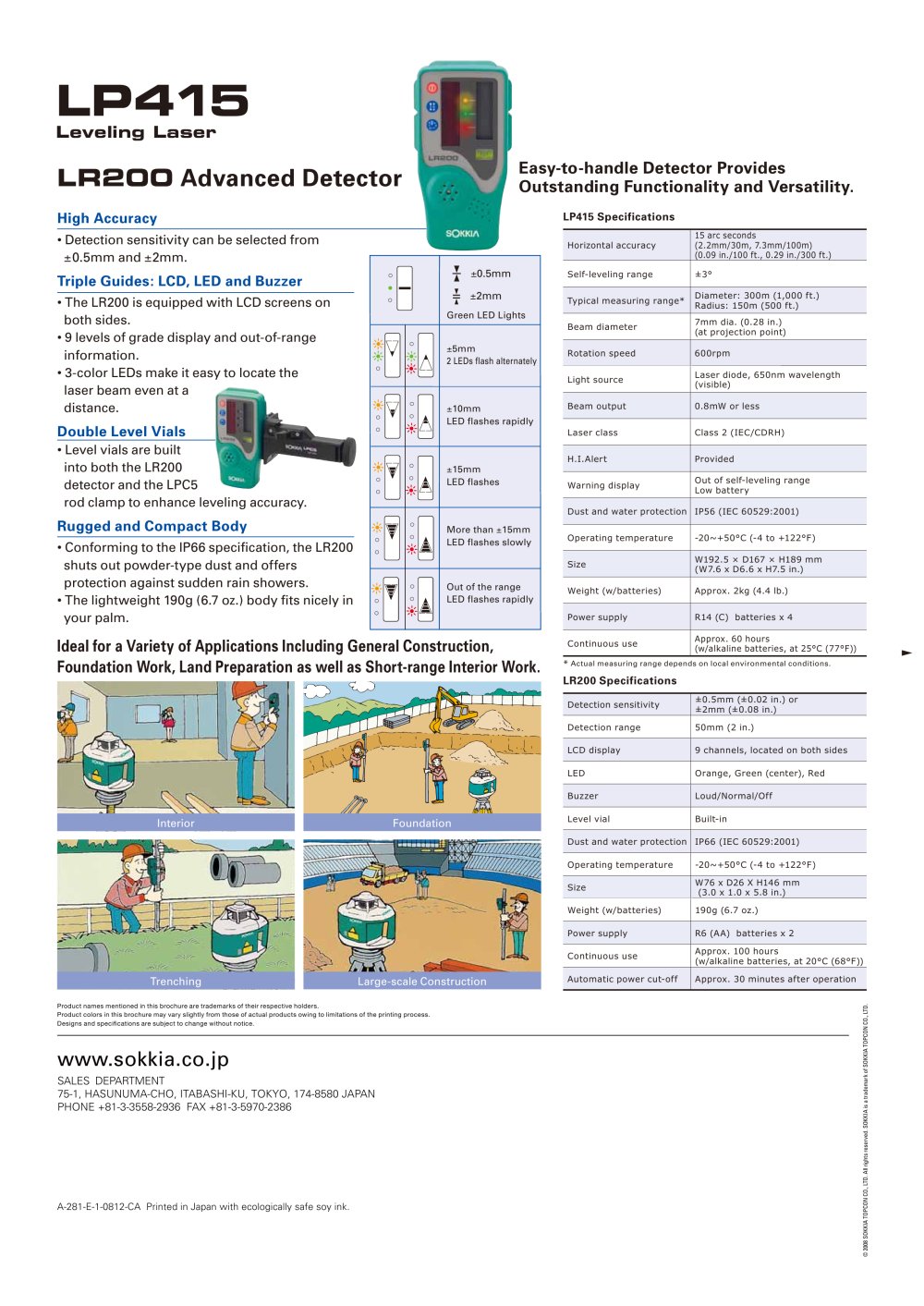

LP415

Leveling Laser

LR200 Advanced Detector

High Accuracy

• Detection sensitivity can be selected from ±0.5mm and ±2mm.

Easy-to-handle Detector Provides Outstanding Functionality and Versatility.

LP415 Specifications


	Horizontal accuracy	15 arc seconds (2.2mm/30m, 7.3mm/100m) (0.09 in./100 ft., 0.29 in./300 ft.)
	Self-leveling range	±3°
	Typical measuring range*	Diameter: 300m (1,000 ft.) Radius: 150m (500 ft.)
	Beam diameter	7mm dia. (0.28 in.) (at projection point)
	Rotation speed	600rpm
	Light source	Laser diode, 650nm wavelength (visible)
	Beam output	0.8mW or less
	Laser class	Class 2 (IEC/CDRH)
	H.I.Alert	Provided
	Warning display	Out of self-leveling range Low battery
	Dust and water protection	IP56 (IEC 60529:2001)
	Operating temperature	-20~+50°C (-4 to +122°F)
	Size	W192.5 x D167 x H189 mm (W7.6 x D6.6 x H7.5 in.)
	Weight (w/batteries)	Approx. 2kg (4.4 lb.)
	Power supply	R14 (C) batteries x 4
	Continuous use	Approx. 60 hours (w/alkaline batteries, at 25°C (77°F))
	* Actual measuring range depends on local environmental conditions.
	LR200 Specifications
	Detection sensitivity	±0.5mm (±0.02 in.) or ±2mm (±0.08 in.)
	Detection range	50mm (2 in.)
	LCD display	9 channels, located on both sides
	LED	Orange, Green (center), Red
	Buzzer	Loud/Normal/Off
	Level vial	Built-in
	Dust and water protection	IP66 (IEC 60529:2001)
	Operating temperature	-20~+50°C (-4 to +122°F)
	Size	W76 x D26 X H146 mm (3.0 x 1.0 x 5.8 in.)
	Weight (w/batteries)	190g (6.7 oz.)
	Power supply	R6 (AA) batteries x 2
	Continuous use	Approx. 100 hours (w/alkaline batteries, at 20°C (68°F))
	Automatic power cut-off	Approx. 30 minutes after operation

■J ±0.5mm ^ ±2mm

Green LED Lights

Triple Guides: LCD, LED and Buzzer

• The LR200 is equipped with LCD screens on both sides.

• 9 levels of grade display and out-of-range information.

• 3-color LEDs make it easy to locate the laser beam even at a distance.

Double Level Vials

±5mm

2 LEDs flash alternately

±10mm

LED flashes rapidly

• Level vials are built

into both the LR200

detector and the LPC5 rod clamp to enhance leveling accuracy.

Rugged and Compact Body

• Conforming to the IP66 specification, the LR200 shuts out powder-type dust and offers protection against sudden rain showers.

• The lightweight 190g (6.7 oz.) body fits nicely in your palm.

±15mm LED flashes

More than ±15mm LED flashes slowly

Out of the range LED flashes rapidly

Ideal for a Variety of Applications Including General Construction, Foundation Work, Land Preparation as well as Short-range Interior Work.

arge-scale Construction

Product names mentioned in this brochure are trademarks of their respective holders.

Product colors in this brochure may vary slightly from those of actual products owing to limitations of the printing process. Designs and specifications are subject to change without notice.
