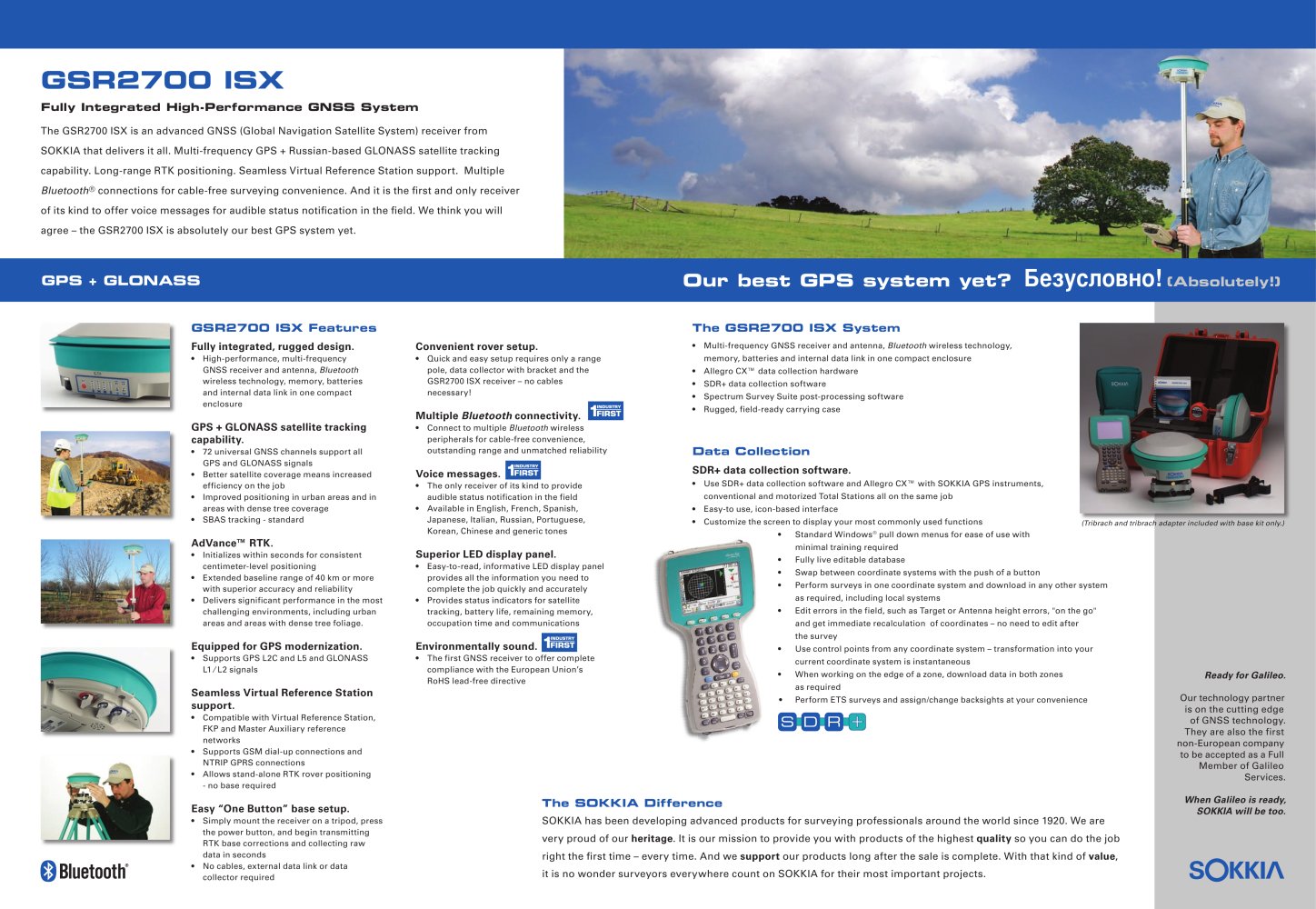

GSR2700 ISX

Bluetooth

Fully Integrated High-Performance GNSS System

The GSR2700 ISX is an advanced GNSS (Global Navigation Satellite System) receiver from SOKKIA that delivers it all. Multi-frequency GPS + Russian-based GLONASS satellite tracking capability. Long-range RTK positioning. Seamless Virtual Reference Station support. Multiple

®

connections for cable-free surveying convenience. And it is the first and only receiver of its kind to offer voice messages for audible status notification in the field. We think you will agree – the GSR2700 ISX is absolutely our best GPS system yet.

GPS + GLONASS

Our best GPS system yet?

(Absolutely!)

GSR2700 ISX FeaturesThe GSR2700 ISX System The SOKKIA Difference Fully integrated, rugged design. Convenient rover setup.

•Multi-frequency GNSS receiver and antenna, Bluetooth wireless technology, memory, batteries and internal data link in one compact enclosure•Allegro CX™ data collection hardware•SDR+ data collection software•Spectrum Survey Suite post-processing software•Rugged, field-ready carrying case •High-performance, multi-frequency GNSS receiver and antenna, •Quick and easy setup requires only a range pole, data collector with bracket and the GSR2700 ISX receiver – no cables necessary! Bluetooth wireless technology, memory, batteries and internal data link in one compact enclosure

Multiple Bluetooth connectivity. GPS + GLONASS satellite tracking capability.

•Connect to multiple Bluetooth wireless peripherals for cable-free convenience, outstanding range and unmatched reliability •72 universal GNSS channels support all GPS and GLONASS signals•Better satellite coverage means increased efficiency on the job•Improved positioning in urban areas and in areas with dense tree coverage•SBAS tracking - standard

Data Collection Voice messages. SDR+ data collection software.

•The only receiver of its kind to provide audible status notification in the field•Available in English, French, Spanish, Japanese, Italian, Russian, Portuguese, Korean, Chinese and generic tones •Use SDR+ data collection software and Allegro CX™ with SOKKIA GPS instruments, conventional and motorized Total Stations all on the same job•Easy-to use, icon-based interface•Customize the screen to display your most commonly used functions•Standard Windows
(Tribrach and tribrach adapter included with base kit only.) ® pull down menus for ease of use with minimal training required•Fully live editable database•Swap between coordinate systems with the push of a button•Perform surveys in one coordinate system and download in any other system as required, including local systems•Edit errors in the field, such as Target or Antenna height errors, "on the go" and get immediate recalculation of coordinates – no need to edit after the survey•Use control points from any coordinate system – transformation into your current coordinate system is instantaneous•When working on the edge of a zone, download data in both zones as required•Perform ETS surveys and assign/change backsights at your convenience

AdVance™ RTK.

•Initializes within seconds for consistent centimeter-level positioning•Extended baseline range of 40 km or more with superior accuracy and reliability•Delivers significant performance in the most challenging environments, including urban areas and areas with dense tree foliage.

Superior LED display panel.

•Easy-to-read, informative LED display panel provides all the information you need to complete the job quickly and accurately•Provides status indicators for satellite tracking, battery life, remaining memory, occupation time and communications

Equipped for GPS modernization. Environmentally sound.

•Supports GPS L2C and L5 and GLONASS L1 â�„ L2 signals •The first GNSS receiver to offer complete compliance with the European Union’s RoHS lead-free directive

Ready for Galileo.

Seamless Virtual Reference Station support.

Our technology partner is on the cutting edge of GNSS technology. They are also the first non-European company to be accepted as a Full Member of Galileo Services.

•Compatible with Virtual Reference Station, FKP and Master Auxiliary reference networks•Supports GSM dial-up connections and NTRIP GPRS connections•Allows stand-alone RTK rover positioning - no base required

When Galileo is ready, SOKKIA will be too.

Easy “One Button” base setup.

•Simply mount the receiver on a tripod, press the power button, and begin transmitting RTK base corrections and collecting raw data in seconds•No cables, external data link or data collector required

SOKKIA has been developing advanced products for surveying professionals around the world since 1920. We are very proud of our heritage . It is our mission to provide you with products of the highest quality so you can do the job right the first time – every time. And we support our products long after the sale is complete. With that kind of value ,it is no wonder surveyors everywhere count on SOKKIA for their most important projects.
