GNSS SURVEYING INSTRUMENTS

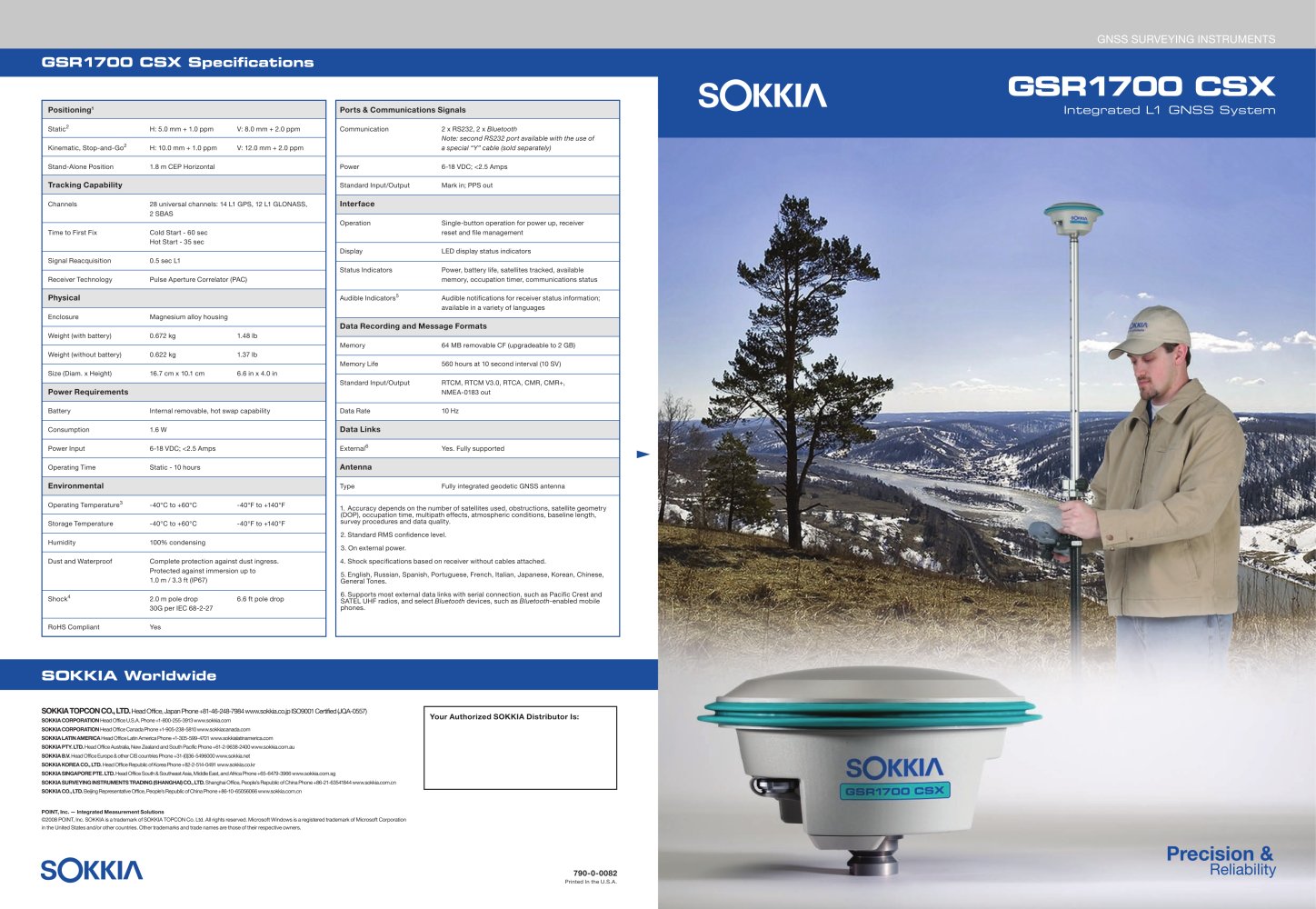

GSR1700 CSX Specifications SOKKIA Worldwide

Positioning

1

Ports & Communications Signals

GSR1700 CSX - 22661 GSR1700 CSX

Integrated L1 GNSS System

Static
2 H: 5.0 mm + 1.0 ppm V: 8.0 mm + 2.0 ppmKinematic, Stop-and-Go Communication 2 x RS232, 2 x Bluetooth Note: second RS232 port available with the use of a special “Y” cable (sold separately)
2 H: 10.0 mm + 1.0 ppm V: 12.0 mm + 2.0 ppmStand-Alone Position 1.8 m CEP Horizontal Power 6-18 VDC; <2.5 Amps Standard Input/Output Mark in; PPS out

Tracking Capability

Channels 28 universal channels: 14 L1 GPS, 12 L1 GLONASS, 2 SBASTime to First Fix Cold Start - 60 sec Hot Start - 35 secSignal Reacquisition 0.5 sec L1 Receiver Technology Pulse Aperture Correlator (PAC)

Interface

Operation Single-button operation for power up, receiver reset and file managementDisplay LED display status indicators Status Indicators Power, battery life, satellites tracked, available memory, occupation timer, communications statusAudible Indicators

Physical

5 Audible notifications for receiver status information; available in a variety of languages Enclosure Magnesium alloy housing Weight (with battery) 0.672 kg 1.48 lb Weight (without battery) 0.622 kg 1.37 lb Size (Diam. x Height) 16.7 cm x 10.1 cm 6.6 in x 4.0 in

Data Recording and Message Formats

Memory 64 MB removable CF (upgradeable to 2 GB)Memory Life 560 hours at 10 second interval (10 SV) Standard Input/Output RTCM, RTCM V3.0, RTCA, CMR, CMR+, NMEA-0183 outData Rate 10 Hz

Power Requirements

Battery Internal removable, hot swap capability Consumption 1.6 W Power Input 6-18 VDC; <2.5 Amps Operating Time Static - 10 hours

Data Links

External
6 Yes. Fully supported

Antenna Environmental

Type Fully integrated geodetic GNSS antenna1. Accuracy depends on the number of satellites used, obstructions, satellite geometry (DOP), occupation time, multipath effects, atmospheric conditions, baseline length, survey procedures and data quality.2. Standard RMS confidence level.3. On external power.4. Shock specifications based on receiver without cables attached.5. English, Russian, Spanish, Portuguese, French, Italian, Japanese, Korean, Chinese, General Tones.6. Supports most external data links with serial connection, such as Pacific Crest and SATEL UHF radios, and select Operating Temperature
3 -40°C to +60°C -40°F to +140°FStorage Temperature -40°C to +60°C -40°F to +140°F Humidity 100% condensing Dust and Waterproof Complete protection against dust ingress. Protected against immersion up to 1.0 m / 3.3 ft (IP67) Shock
4 2.0 m pole drop 6.6 ft pole drop 30G per IEC 68-2-27RoHS Compliant Yes Bluetooth devices, such as Bluetooth -enabled mobile phones.
