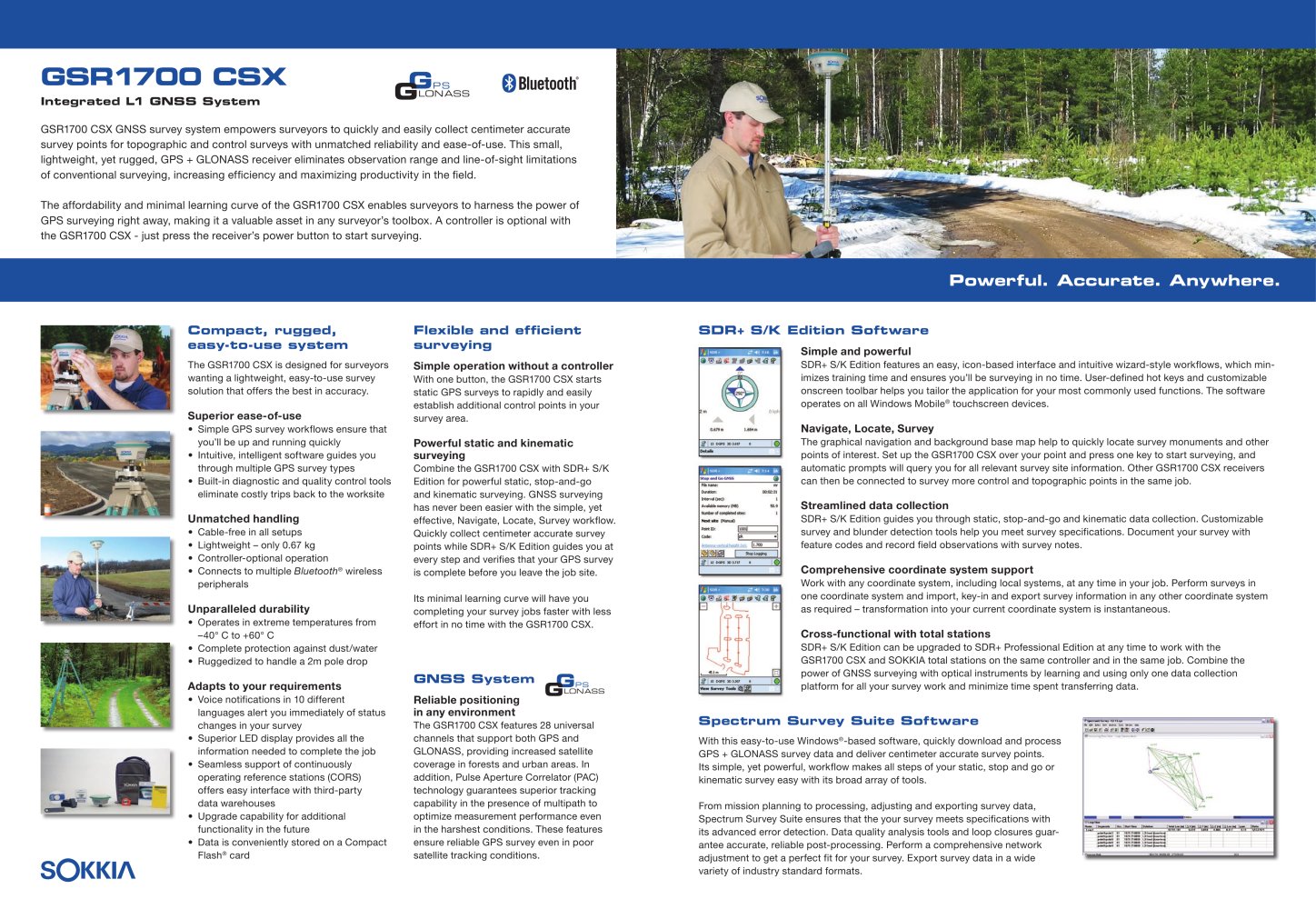

GSR1700 CSX

Integrated L1 GNSS System GSR1700 CSX GNSS survey system empowers surveyors to quickly and easily collect centimeter accurate survey points for topographic and control surveys with unmatched reliability and ease-of-use. This small, lightweight, yet rugged, GPS + GLONASS receiver eliminates observation range and line-of-sight limitations of conventional surveying, increasing efficiency and maximizing productivity in the field. The affordability and minimal learning curve of the GSR1700 CSX enables surveyors to harness the power of GPS surveying right away, making it a valuable asset in any surveyor’s toolbox. A controller is optional with the GSR1700 CSX - just press the receiver’s power button to start surveying.

Powerful. Accurate. Anywhere.

Compact, rugged, easy-to-use system Flexible and efficient surveying SDR+ S/K Edition Software

Simple and powerful

The GSR1700 CSX is designed for surveyors wanting a lightweight, easy-to-use survey solution that offers the best in accuracy.

Simple operation without a controller

SDR+ S/K Edition features an easy, icon-based interface and intuitive wizard-style workflows, which min- imizes training time and ensures you’ll be surveying in no time. User-defined hot keys and customizable onscreen toolbar helps you tailor the application for your most commonly used functions. The software operates on all Windows Mobile With one button, the GSR1700 CSX starts static GPS surveys to rapidly and easily establish additional control points in your survey area.
® touchscreen devices.

Superior ease-of-use

• Simple GPS survey workflows ensure that you’ll be up and running quickly • Intuitive, intelligent software guides you through multiple GPS survey types • Built-in diagnostic and quality control tools eliminate costly trips back to the worksite

Navigate, Locate, Survey Powerful static and kinematic surveying

The graphical navigation and background base map help to quickly locate survey monuments and other points of interest. Set up the GSR1700 CSX over your point and press one key to start surveying, and automatic prompts will query you for all relevant survey site information. Other GSR1700 CSX receivers can then be connected to survey more control and topographic points in the same job. Combine the GSR1700 CSX with SDR+ S/K Edition for powerful static, stop-and-go and kinematic surveying. GNSS surveying has never been easier with the simple, yet effective, Navigate, Locate, Survey workflow. Quickly collect centimeter accurate survey points while SDR+ S/K Edition guides you at every step and verifies that your GPS survey is complete before you leave the job site. Its minimal learning curve will have you completing your survey jobs faster with less effort in no time with the GSR1700 CSX. Bluetooth

Streamlined data collection Unmatched handling

SDR+ S/K Edition guides you through static, stop-and-go and kinematic data collection. Customizable survey and blunder detection tools help you meet survey specifications. Document your survey with feature codes and record field observations with survey notes. • Cable-free in all setups • Lightweight – only 0.67 kg • Controller-optional operation • Connects to multiple
® wireless peripherals

Comprehensive coordinate system support

Work with any coordinate system, including local systems, at any time in your job. Perform surveys in one coordinate system and import, key-in and export survey information in any other coordinate system as required – transformation into your current coordinate system is instantaneous.

Unparalleled durability

• Operates in extreme temperatures from –40° C to +60° C • Complete protection against dust/water • Ruggedized to handle a 2m pole drop

Cross-functional with total stations

SDR+ S/K Edition can be upgraded to SDR+ Professional Edition at any time to work with the GSR1700 CSX and SOKKIA total stations on the same controller and in the same job. Combine the power of GNSS surveying with optical instruments by learning and using only one data collection platform for all your survey work and minimize time spent transferring data.

Adapts to your requirements

GNSS System

• Voice notifications in 10 different languages alert you immediately of status changes in your survey • Superior LED display provides all the information needed to complete the job • Seamless support of continuously operating reference stations (CORS) offers easy interface with third-party data warehouses • Upgrade capability for additional functionality in the future • Data is conveniently stored on a Compact Flash

Reliable positioning in any environment

The GSR1700 CSX features 28 universal channels that support both GPS and GLONASS, providing increased satellite coverage in forests and urban areas. In addition, Pulse Aperture Correlator (PAC) technology guarantees superior tracking capability in the presence of multipath to optimize measurement performance even in the harshest conditions. These features ensure reliable GPS survey even in poor satellite tracking conditions.

Spectrum Survey Suite Software

With this easy-to-use Windows
® -based software, quickly download and process GPS + GLONASS survey data and deliver centimeter accurate survey points. Its simple, yet powerful, workflow makes all steps of your static, stop and go or kinematic survey easy with its broad array of tools. From mission planning to processing, adjusting and exporting survey data, Spectrum Survey Suite ensures that the your survey meets specifications with its advanced error detection. Data quality analysis tools and loop closures guar- antee accurate, reliable post-processing. Perform a comprehensive network adjustment to get a perfect fit for your survey. Export survey data in a wide variety of industry standard formats.
® card
