GPS � GNSS SURVEYING INSTRUMENTS

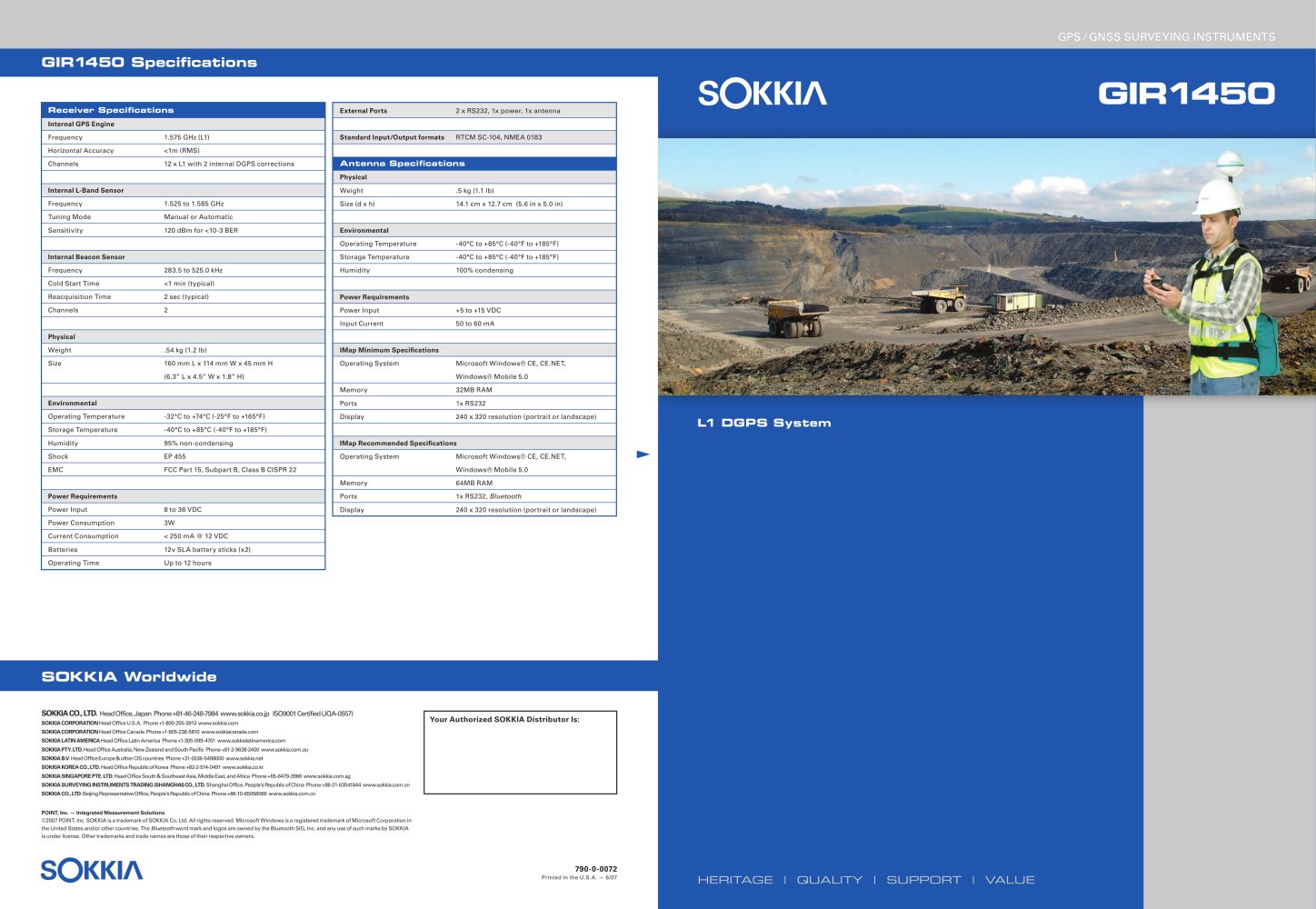

GIR1450 Specifications SOKKIA Worldwide

Receiver Specifications

External Ports 2 x RS232, 1x power, 1x antenna Internal GPS Engine Frequency 1.575 GHz (L1) Horizontal Accuracy <1m (RMS) Channels 12 x L1 with 2 internal DGPS corrections

GIR1450_Brochure - 22661 GIR1450

Standard Input/Output formats RTCM SC-104, NMEA 0183 Internal L-Band Sensor Frequency 1.525 to 1.585 GHz Tuning Mode Manual or Automatic Sensitivity 120 dBm for <10-3 BER Internal Beacon Sensor

Antenna Specifications

Frequency 283.5 to 525.0 kHz Cold Start Time <1 min (typical) Reacquisition Time 2 sec (typical)Channels 2 Physical Physical Weight .5 kg (1.1 lb) Size (d x h) 14.1 cm x 12.7 cm (5.6 in x 5.0 in) Weight .54 kg (1.2 lb) Size 160 mm L x 114 mm W x 45 mm H (6.3” L x 4.5” W x 1.8” H) Environmental Power Requirements Operating Temperature -40°C to +85°C (-40°F to +185°F) Storage Temperature -40°C to +85°C (-40°F to +185°F) Humidity 100% condensing Power Requirements Environmental Power Input 8 to 36 VDC Power Consumption 3W Current Consumption

L1 DGPS System
