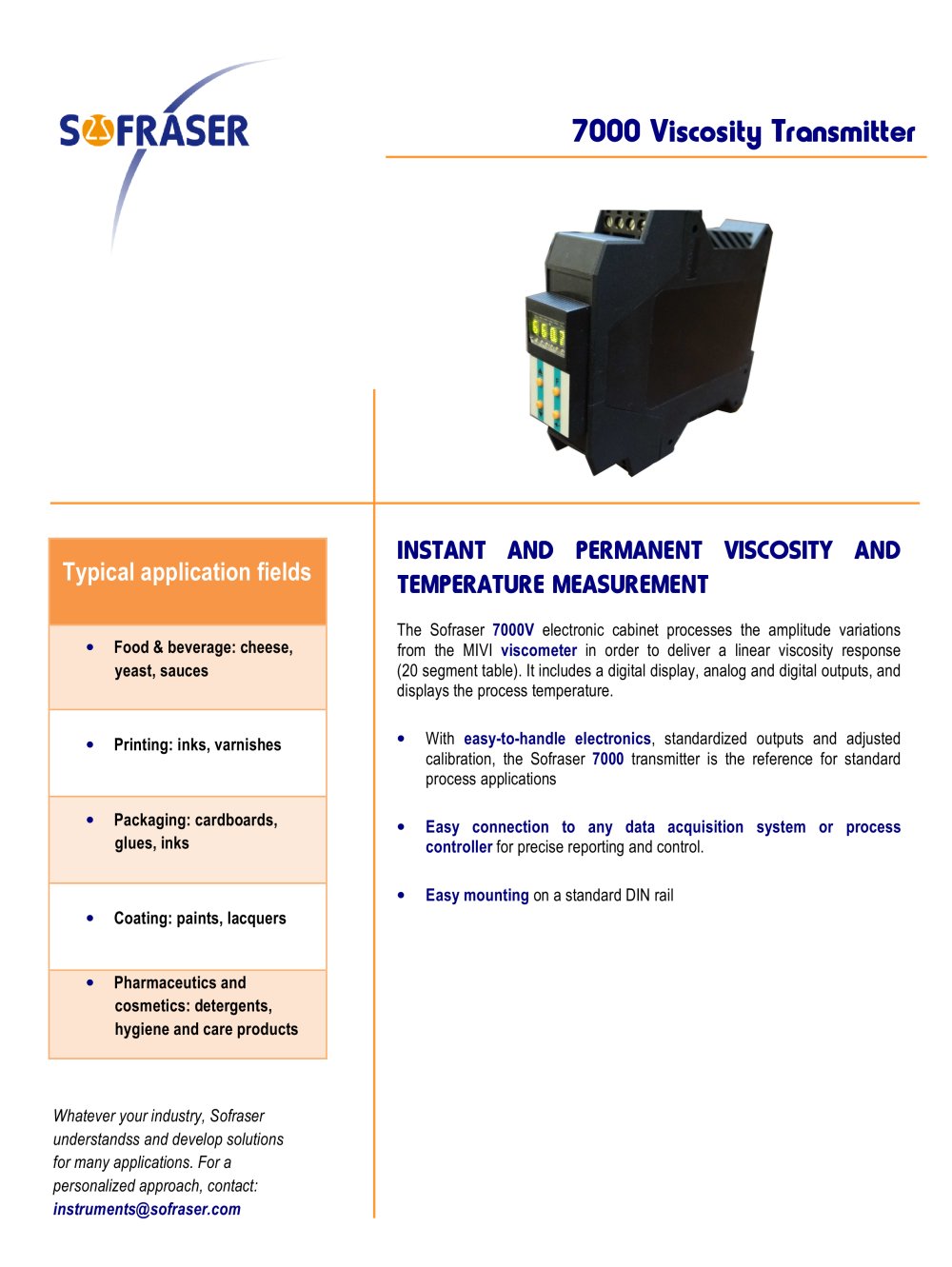

VISCOSITY TRANSMITTER: 7000 - 8994 VISCOSITY TRANSMITTER: 7000

Associated to sensor: MIVI

Instant and permanent

PRESENTATION

viscosity and temperature

The 7000V electronic cabinet allows the vibration of the MIVI viscometers and processes the amplitude variations in order to deliver a linear viscosity response (table of 20 segments), a digital display as well as analogue and digital outputs. The 7000T electronic cabinet displays the process temperature.

measurement

Easy-to-handle electronics, equippedwith standardized outputs and adjustable calibration. Easy connection to any data acquisitionsystem or process controller. OPERATING CONDITIONS Process temperature: -20°C to 100°C Working temperature: 0 to 50 °C Watertightness: IP 20 OPTION Easy mounting on a standard DIN rail.
22.5 : Mounting in a watertight box (IP 65)
9 ADDITIONAL MODULE FOR DISPLAY AND PARAMETERS MODIFICATION (optional) Directly plugged at the front panel of the basic module V or T
100 4 digits displays
42 Allows the modification of the original programming (calibration, outputs, shifts, dynamic filtering,...) POWER SUPPLY
Plug-in display an d configuration module 85 to 265 Vac/dc - 3 VA max./module (V or T) Option: 24 to 48 Vac/dc
110 OPTIONAL SUPPLY Single temperature transmitter including one temperature probe and one 7000 T module (range according to the chosen probe) Insertion of V and T modules in an ex.proof box, for use in hazardous areas OUTPUT Independent and insulated, for V or T module 265 V r m s max. 0/4 - 20 mA ± 0.1 % ; Z max. : 750 ; drift: 50 ppm/°C RS 485 - Up to 32 sets to be connected: o Max distance 1000 meters. 1 pair cable. 1200 to 38400 baud SOFTWARE o Protocol: MODBUS, slave. Code: RTU WISC70 (optional)
Quality System Ref. : 140/2
