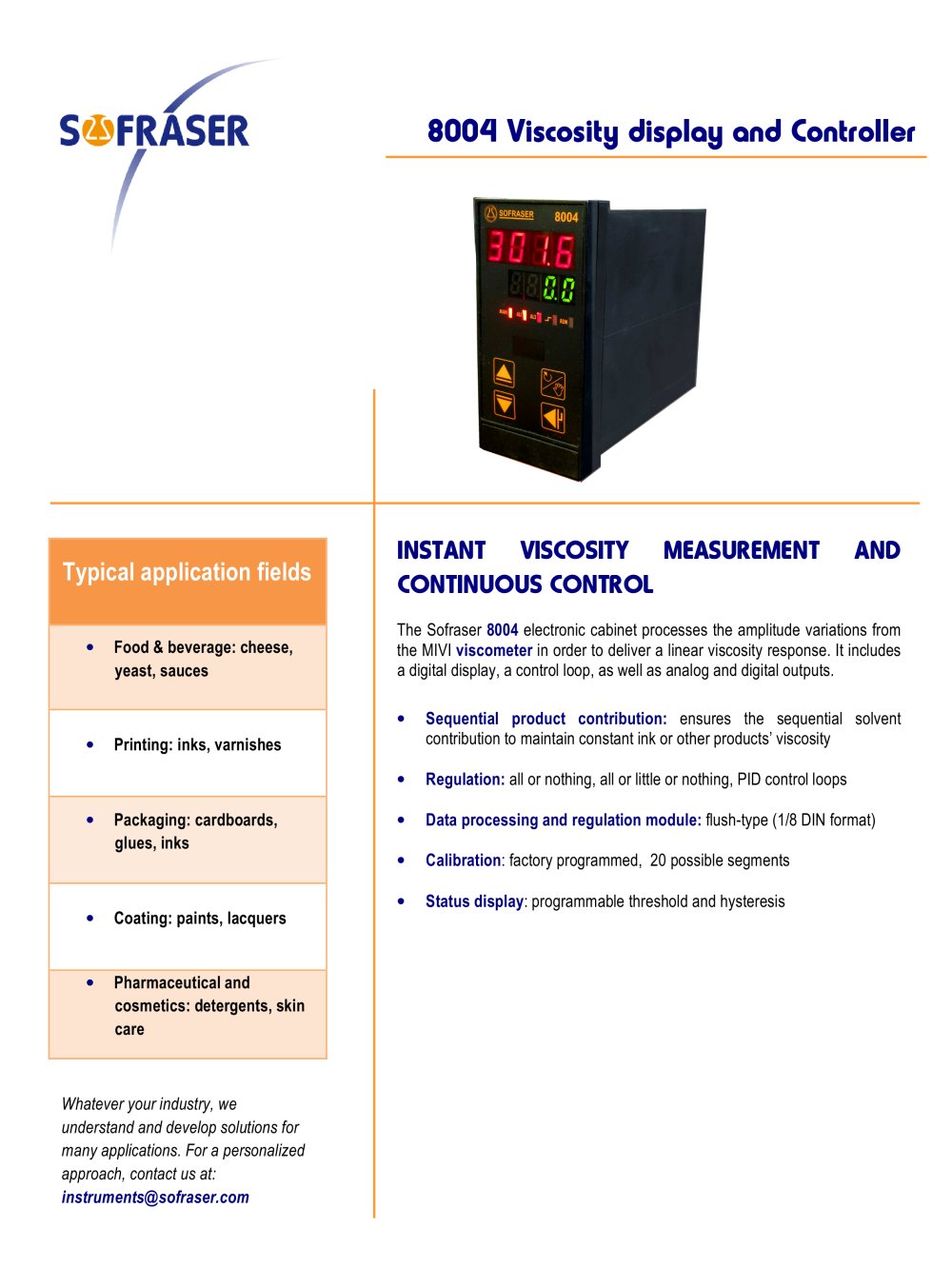

VISCOSITY CONTROLLER: 8004

Associated to sensors: MIVI or CIVI

Instant measurement and

PRESENTATION

continuous control of the

The 8004 electronic enclosure allows the vibration of the MIVI or CIVI viscosimeters and processes the amplitude variations in order to deliver a linear viscosity response, a digital display, a control loop as well as analogue and digital outputs.

viscosity

Regulation ensures the sequentialsolvent contribution to maintainconstant viscosity of ink (or othe OPERATING CONDITIONS r products). Data processing and regulation module is flush-type ( Process temperature: -20°C to 100°C Working temperature: 0 to 50 °C Watertightness: IP 20 (IP 65 on façade) OPTION
1 /
8 DIN format). : mounting in a watertight box (IP 65)
8004 Panel cut-out FUNCTIONS Regulation:
+0,8 0 Découpedu panneau All or nothing, All or little or nothing, PID
92 96 Calibration: Programmed at the factory (20 possible segments) Alarms: Programmable thresholds and hysteresis
+0,8 0 45 DISPLAY Permanent display of viscosity (4 digits) Permanent display of instructions or the output of regulation (4 digits) Status display (5 indicators: alarms, manual/auto mode, connections) MANUFACTURERS OF POWER SUPPLY 85 to 265 Vac/dc.
12 100 120 Option power supply: 18 to 54 Vac/dc SOFTWARE WISC84 (optional) OUTPUTS: Independent and insulated 1 analog output standard: 0 or 4 - 20 mA, 0,1 %. Z max. : 750 or 0 – 5 or 10 V, running < 20 mA 2 relay outputs standard: Switching power up to 2A , 250 Vac or 30 Vdc 1 serial port option : RS 232: Monopoint type (distance < 30m) or RS 485: Multipoint type: 32 devices (dist. < 1,000m) Insulation: 265 V
eff Speed: 1,200 to 38,400 bauds. Cable : 1 pair Protocol: MODBUS, Slave. Code: RTU 1 analog output option: 0 or 4 - 20 mA, 0,1 %. Z max. : 750 or 0 – 10 V, running < 20 mA
Quality System Ref. : 148/2
