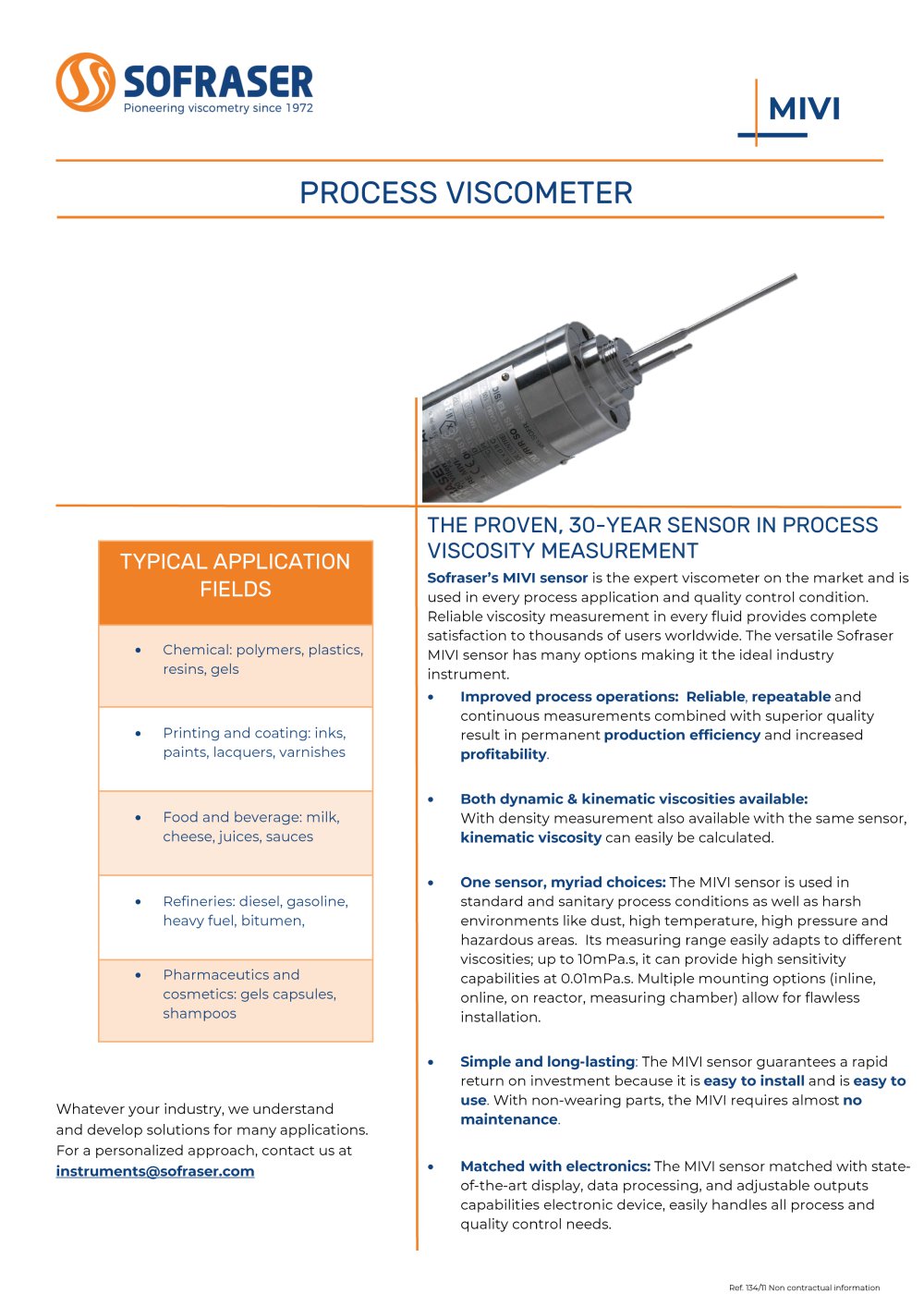

MIVI
Associated to signal inverter: 7000 or 800x family In-line, instant and
ADVANTAGES
permanent viscosity measurement
Essential for all manufacturing or qualitycontrol applications. Especially developedfor industrial conditions PRINCIPLE The active part of the sensor is avibrating rod, held in oscillation by aconstant electrical power. No wear part, Low maintenance Operates in any position Simple, rugged, accurate and RELIABLE Easy-to-handle electronics, equipped withstandardized outputs and adjustablecalibration. Optional internal
manufacturer of temperature probe (-20°Cto 300°C) OPERATING CONDITIONS
S N Operating Temperature: 200 °C max ( 300°C on request) Working pressure: 60 bars (up to 500 bars on request) Watertightness of the body: IP 67 Material: 316 L stainless steel, special Hastelloy manufacturing, many protective coatings possible (Diamolith, PTFE, enamel…) The vibration amplitude varies according
to the product’s viscosity where the rodis immersed. The signal
professional converter associated Available for hazardous areas (Approved ATEX EExdIICT1..T6) Also approved in the USA (FM) and JAPAN (JIS) Special model available for sanitary applications (3A) RANGES Any range from 0-10 mPa.s to 0-1 000 000 mPa.s
(7000or 800x family)
allows the vibration andprocesses the amplitude variations inorder to deliver a calibrated viscosityres Repeatability: 0,2 % FS p onse. MOUNTING
Quality System On vessel Inline On circulation pot Weight: 5.6 kg Mounting flange to be welded 345/460 83/598 4 00 1 2 X 1/4 ” mini : 32 Ref. : 134/3
