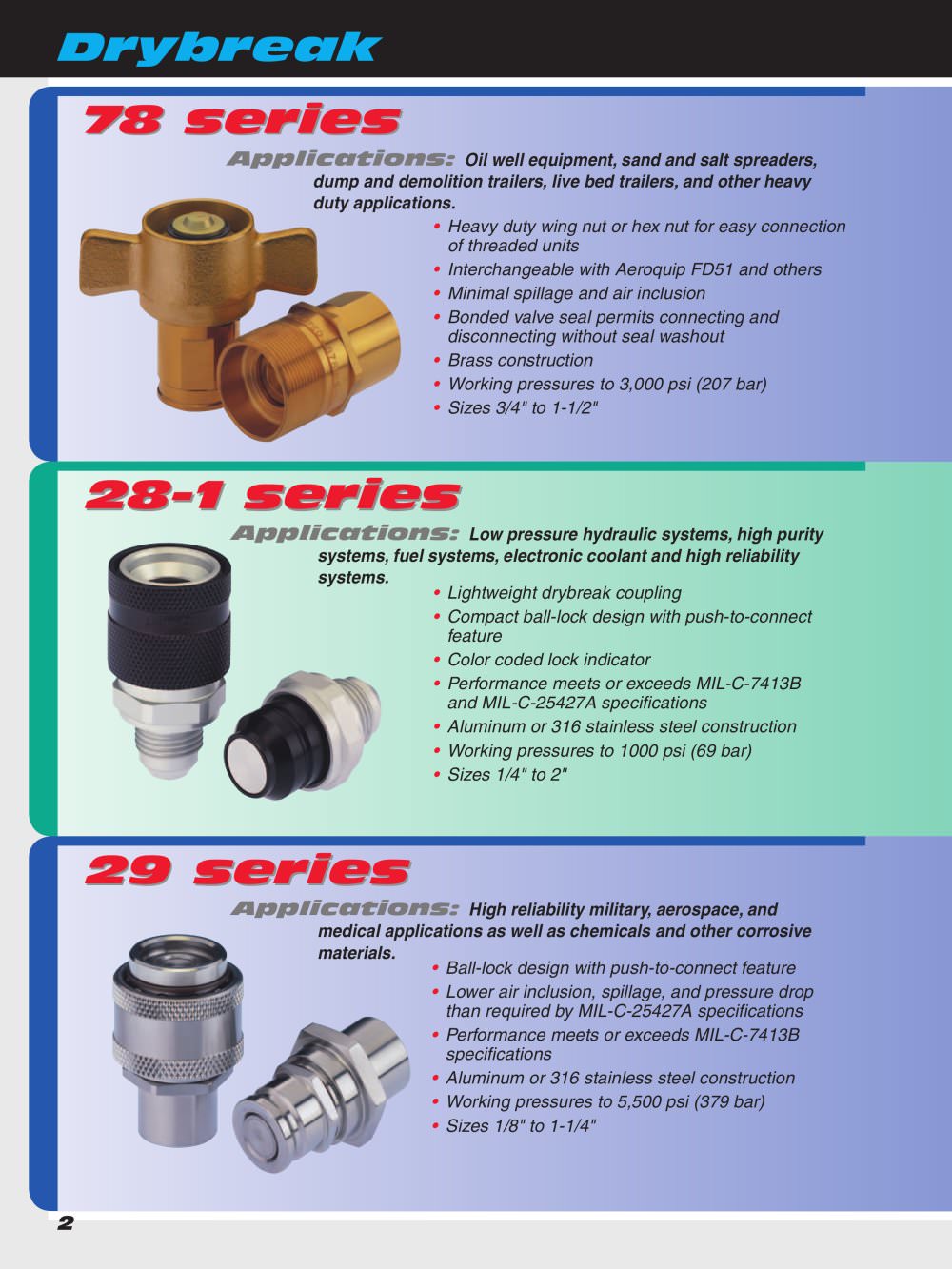

						*dump and demolition industrial trailers, live bed trailers, and other heavy duty applications.* Heavy duty wing nut or hex nut for easy connection of threaded units Interchangeable with Aeroquip FD51 and others Minimal spillage and air inclusion Bonded valve seal permits connecting and disconnecting without seal washout Brass construction Working pressures to 3,000 psi (207 bar) Sizes 3/4" to 1-1/2"

				*Af3f3KiCWEions:* *Low pressure hydraulic systems, high purity* *systems, fuel systems, electronic coolant and high reliability ' systems.* ' • Lightweight drybreak coupling I • Compact ball-lock design with push-to-connect feature j • Color coded lock indicator ? " ~" 'Performance meets or exceeds MIL-C-7413B *^^SS^* and MIL-C-25427A specifications *JBtllBtk* • Aluminum or 316 stainless steel construction f \m\\| • Working pressures to 1000 psi (69 bar) *\ JwH^* 'Sizes 1/4"to2"

					*Jtf3f3i* *High reliability military, aerospace, and* *medical applications as well as chemicals and other corrosive materials.* • Ball-lock design with push-to-connect feature • Lower air inclusion, spillage, and pressure drop than required by MIL-C-25427A specifications • Performance meets or exceeds MIL-C-7413B specifications • Aluminum or 316 stainless steel construction • Working pressures to 5,500 psi (379 bar) '"Vjr"/ J / • Sizes 1/8" to 1-1/4" J *

		2
