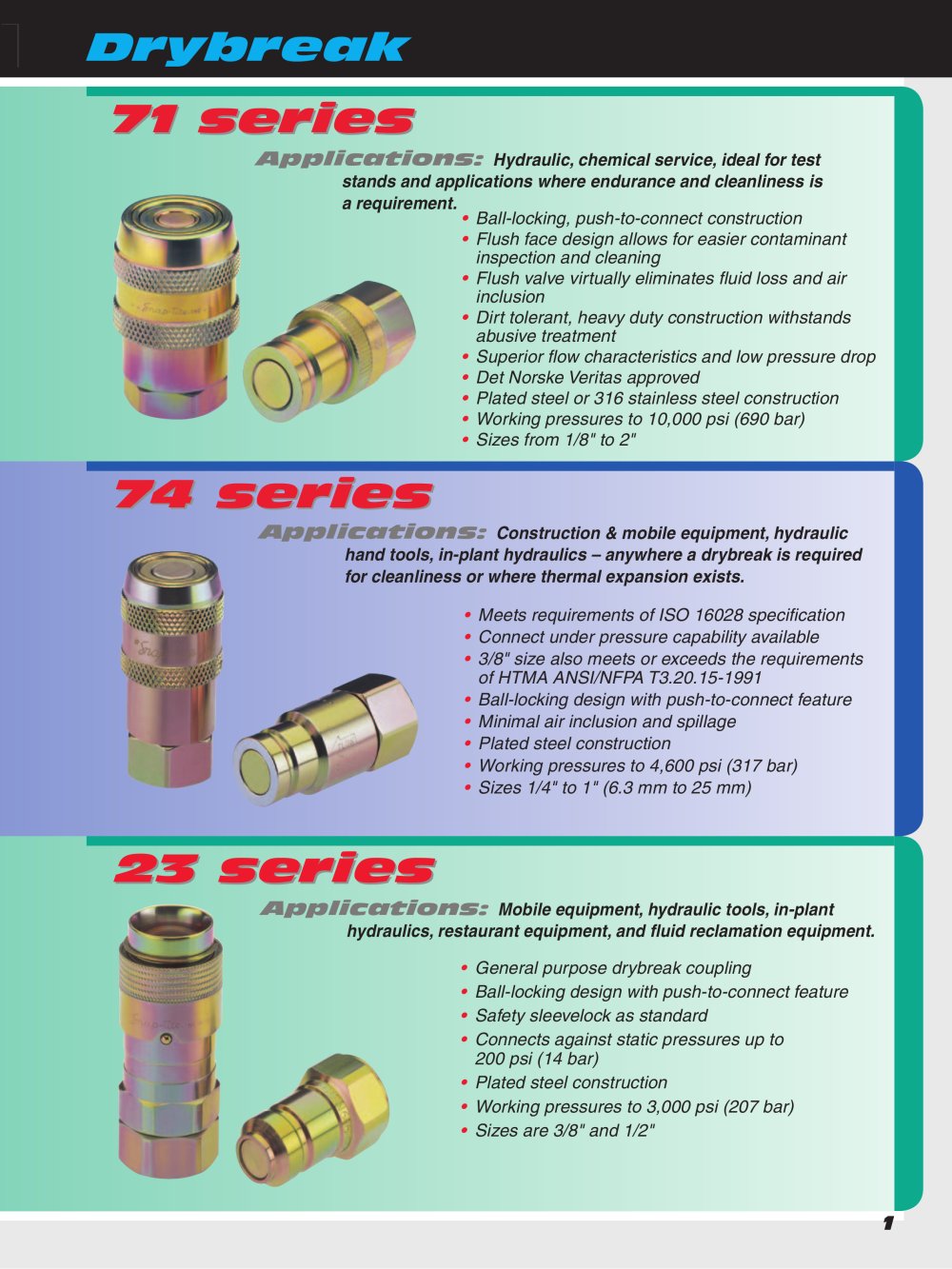

Hydraulic, chemical service, ideal for test

stands and applications where endurance and cleanliness is a requirement.

• Ball-locking, push-to-connect construction

• Flush face design allows for easier contaminant Inspection and cleaning

• Flush valve virtually eliminates fluid loss and air inclusion

• Dirt tolerant, heavy duty construction withstands abusive treatment

• Superior flow characteristics and low pressure drop

• Det Norske Veritas approved

• Plated steel or 316 stainless steel construction

• Working pressures to 10,000 psi (690 bar)

• Sizes from 1/8" to 2"

MS; Construction & mobile equipment, hydraulic hand tools, in-plant hydraulics - anywhere a drybreak is required for cleanliness or where thermal expansion exists.

• Meets requirements of ISO 16028 specification

• Connect under pressure capability available

• 3/8" size also meets or exceeds the requirements of HTMA ANSI/NFPA T3.20.15-1991

• Ball-locking design with push-to-connect feature

• Minimal air inclusion and spillage

• Plated steel construction

• Working pressures to 4,600 psi (317 bar)

• Sizes 1/4" to 1" (6.3 mm to 25 mm)

£&§3§3tMCCfEions: Mobile equipment, hydraulic tools, in-plant

hydraulics, restaurant equipment, and fluid reclamation equipment.

• General purpose drybreak coupling

• Ball-locking design with push-to-connect feature

• Safety sleevelock as standard

• Connects against static pressures up to 200 psi (14 bar)

• Plated steel construction

• Working pressures to 3,000 psi (207 bar)

• Sizes are 3/8" and 1/2"
