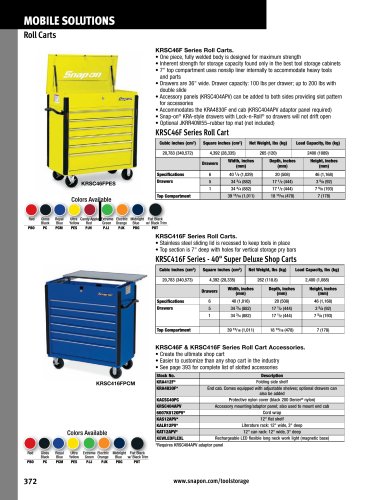

Snap-on Digital Catalog - 652 Pages

MOBILE SOLUTIONS
Roll Carts
KRSC46F Series Roll Carts.
• One piece, fully welded body is designed for maximum strength
• Inherent strength for storage capacity found only in the best tool storage cabinets
• 7" top compartment uses nonslip liner internally to accommodate heavy tools
and parts
• Drawers are 36" wide. Drawer capacity: 100 lbs per drawer; up to 200 lbs with
double slide
• Accessory panels (KRSC404APV) can be added to both sides providing slot pattern
for accessories
• Accommodates the KRA4830F end cab (KRSC404APV adaptor panel required)
• Snap-on® KRA-style drawers with Lock-n-Roll® so drawers will not drift open
• Optional JKRR40W55–rubber top mat (not included)
KRSC46F Series Roll Cart
Cubic inches (cm3)
Square inches (cm2)
Net Weight, lbs (kg)
Load Capacity, lbs (kg)
20,783 (340,572)
4,392 (28,335)
265 (120)
2400 (1089)
Drawers
KRSC46FPES
Colors Available
Red
PBO
Gloss
Black
PC
Royal
Blue
PCM
Width, inches
(mm)
Depth, inches
(mm)
Height, inches
(mm)
46 (1,168)
6
40 1/2 (1,029)
20 (508)
5
34 3/4 (882)
17 1/2 (444)
3 5/8 (92)
1
Specifications
Drawers
34 3/4 (882)
17 1/2 (444)
7 5/8 (193)
39 13/16 (1,011)
18 13/16 (478)
7 (178)
Ð
Top Compartment
Ultra Candy Apple Extreme Electric Midnight Flat Black
Yellow
Red
Green Orange Blue
w/ Black Trim
PES
PJH
PJJ
PJK
PDG
POT
KRSC416F Series Roll Carts.
• Stainless steel sliding lid is recessed to keep tools in place
• Top section is 7" deep with holes for vertical storage pry bars
KRSC416F Series - 40" Super Deluxe Shop Carts
Cubic inches (cm3)
Square inches (cm2)
Net Weight, lbs (kg)
Load Capacity, lbs (kg)
20,783 (340,573)
4,392 (28,335)
262 (118.8)
2,400 (1,088)
Drawers
Width, inches
(mm)
Depth, inches
(mm)
Height, inches
(mm)
46 (1,168)
6
Ð
20 (508)
34 3/4 (882)
17 1/2 (444)
3 5/8 (92)
1
Top Compartment
40 (1,016)
5
Specifications
Drawers
34 3/4 (882)
17 1/2 (444)
7 5/8 (193)
39 13/16 (1,011)
18 13/16 (478)
7 (178)
KRSC46F & KRSC416F Series Roll Cart Accessories.
• Create the ultimate shop cart
• Easier to customize than any shop cart in the industry
• See page 393 for complete list of slotted accessories
KRSC416FPCM
Colors Available
Red
PBO
372
Gloss
Black
PC
Royal
Blue
PCM
Ultra
Yellow
PES
Stock No.
KRA412F*
KRA4830F*
Description
Folding side shelf
End cab. Comes equipped with adjustable shelves; optional drawers can
also be added
Protective nylon cover (black 200 Denier® nylon)
KACSC40PC
Accessory mounting/adaptor panel; also used to mount end cab
KRSC404APV
Cord wrap
6007K0120PV*
12" flat shelf
KAS12APV*
Literature rack: 12" wide, 3" deep
KALR12PV*
12" can rack: 12" wide, 3" deep
KAT12APV*
Rechargeable LED flexible long neck work light (magnetic base)
KEWLEDFLEXL
*Requires KRSC404APV adaptor panel
Extreme Electric Midnight Flat Black
Green Orange
Blue w/ Black Trim
PJJ
PJK
PDG
POT
www.snapon.com/toolstorage
