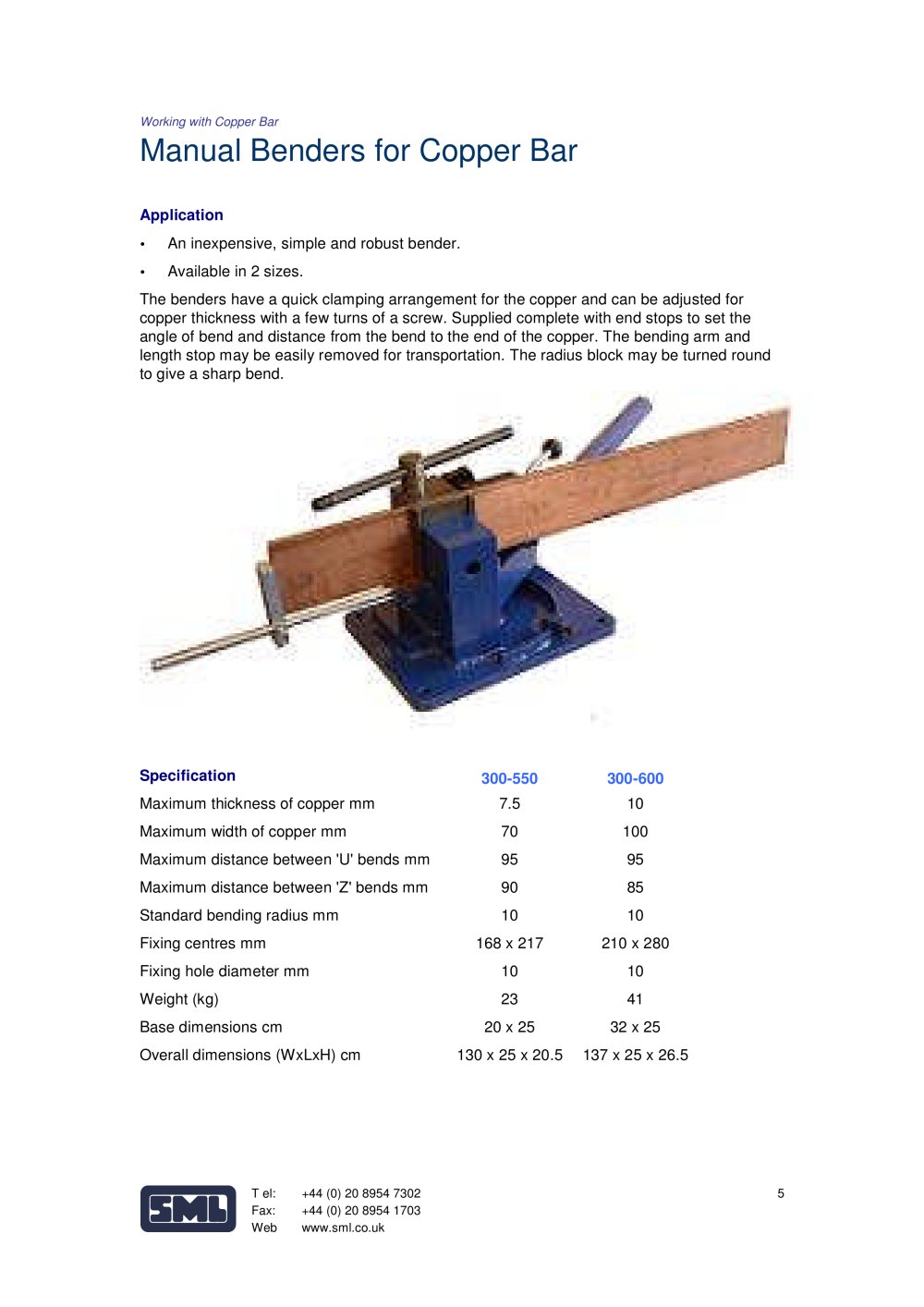

Working with Copper Bar
Manual Benders for Copper Bar
Application
• An inexpensive, simple and robust bender.
• Availablein2 sizes.
The benders have a quick clamping arrangement for the copper and can be adjusted for copper thickness with a few turns of a screw. Supplied complete with end stops to set the angle of bend and distance from the bend to the end of the copper. The bending arm and length stop may be easily removed for transportation. The radius block may be turned round to give a sharp bend.
Specification
300-600
Maximum thickness of copper mm
7.5
10
Maximum width of copper mm
70
100
Maximum distance between 'U' bends mm
95
95
Maximum distance between 'Z' bends mm
90
85
Standard bending radius mm
10
10
Fixing centres mm
168x217
210 x 280
Fixing hole diameter mm
10
10
Weight (kg)
23
41
Base dimensions cm
20x25
32 x 25
Overall dimensions (WxLxH) cm 130x25x20.5 137x25x26.5
