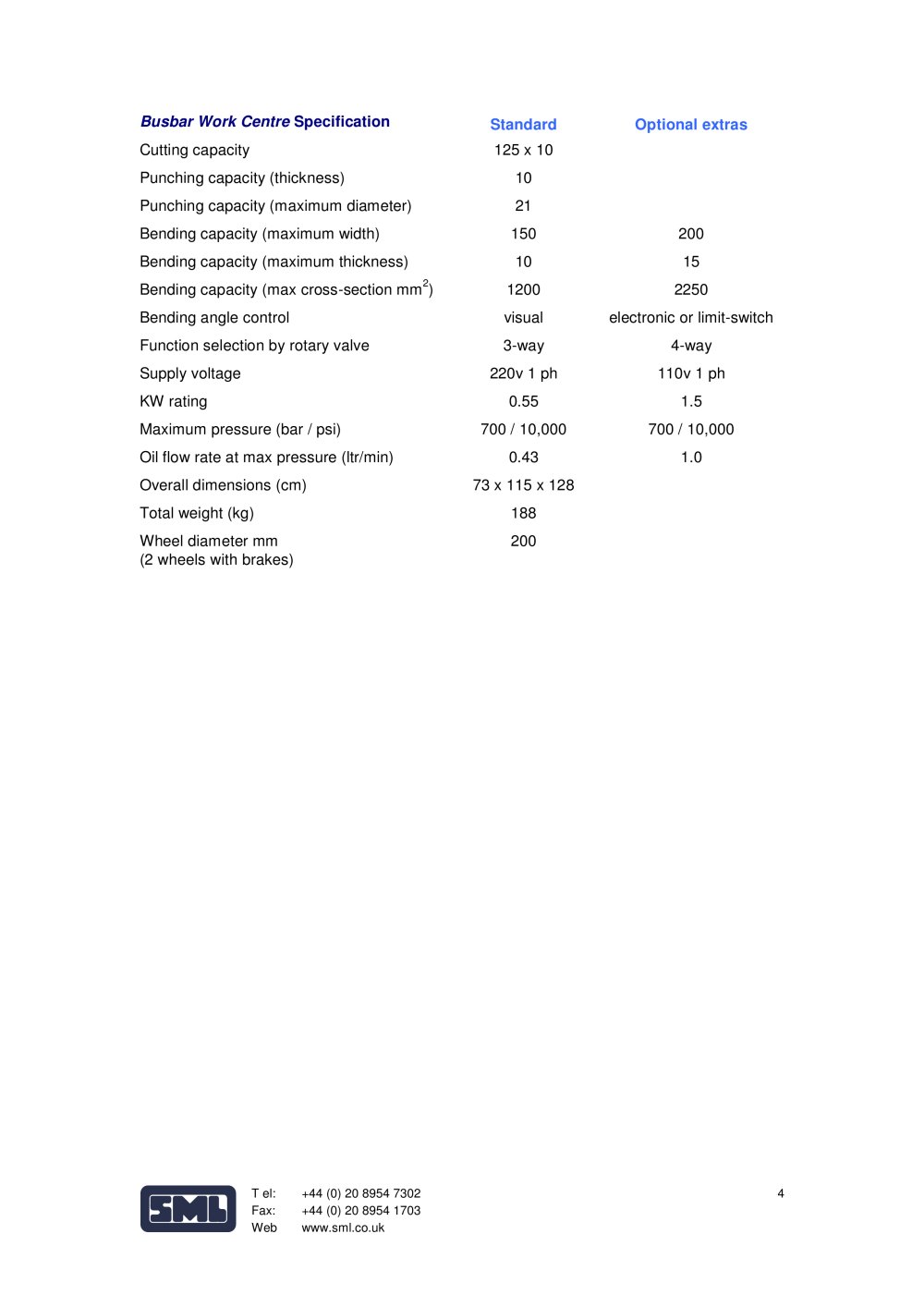

| | Busbar Work Centre Specification | Standard | Optional extras | |
| | Cutting capacity | 125x 10 | | |
| | Punching capacity (thickness) | 10 | | |
| | Punching capacity (maximum diameter) | 21 | | |
| | Bending capacity (maximum width) | 150 | 200 | |
| | Bending capacity (maximum thickness) | 10 | 15 | |
| | Bending capacity (max cross-section mm2) | 1200 | 2250 | |
| | Bending angle control | visual | electronic or limit-switch | |
| | | 3-way | 4-way | |
| | Supply voltage | 220v 1 ph | 110v 1 ph | |
| | KW rating | 0.55 | 1.5 | |
| | Maximum pressure (bar/ psi) | 700/10,000 | 700 / 10,000 | |
| | Oil flow rate at max pressure (ltr/min) | 0.43 | 1.0 | |
| | Overall dimensions (cm) | 73x 115x 128 | | |
| | Total weight (kg) | 188 | | |
| | Wheel diameter mm | 200 | | |
| | | | | |
