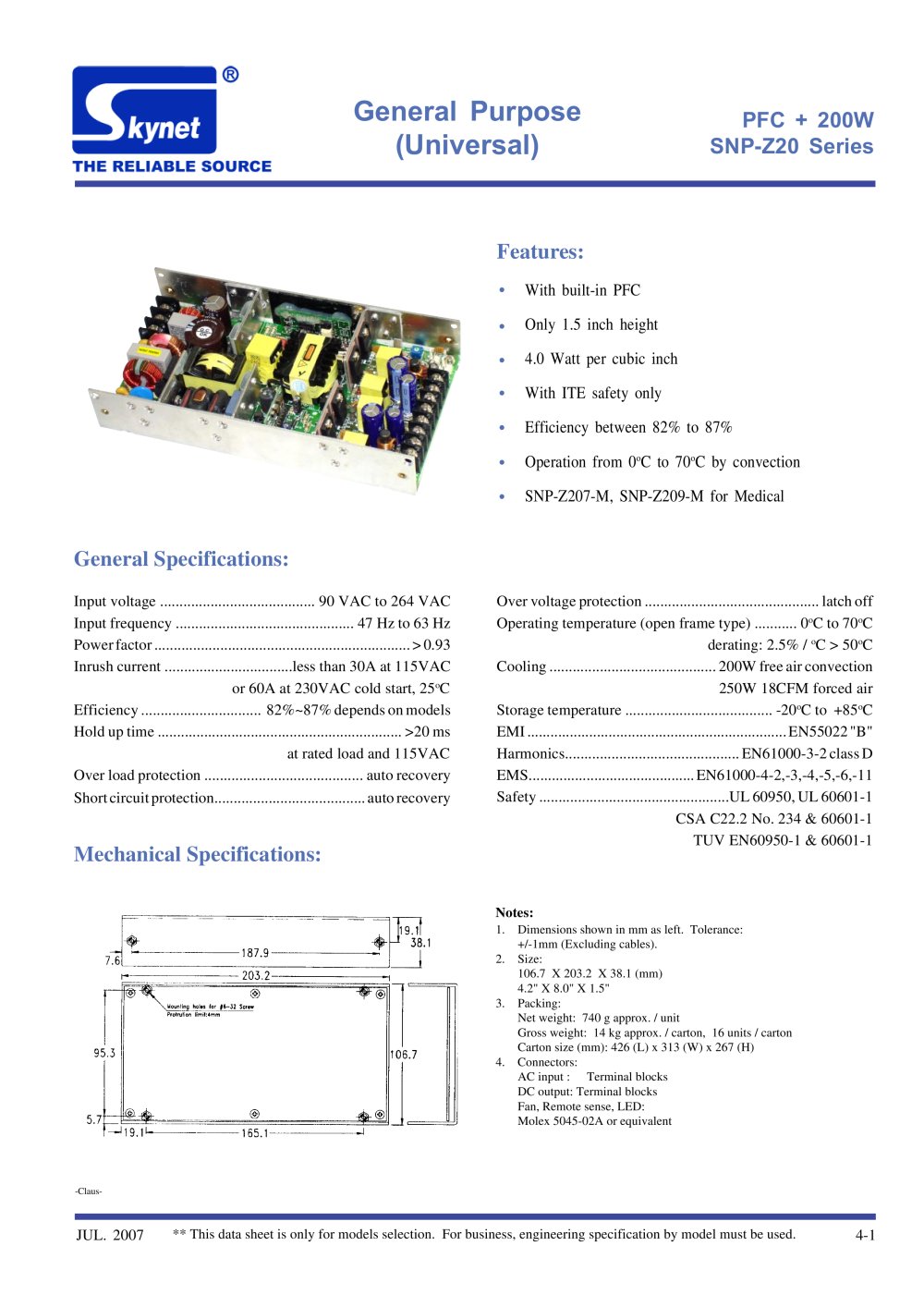

| General Purpose (Universal) | ||||||||||||||||||||||||||||
| PFC + 200W SNP-Z20 Series | ||||||||||||||||||||||||||||
| With built-in PFC Only 1.5 inch height 4.0 Watt per cubic inch With ITE safety only Efficiency between 82% to 87% Operation from 0oC to 70oC by convection | ||||||||||||||||||||||||||||
| SNP-Z207-M, SNP-Z209-M for Medical | ||||||||||||||||||||||||||||
| Input voltage........................................90 VAC to 264 VAC Input frequency..............................................47 Hz to 63 Hz Power factor..................................................................> 0.93 Inrush current.................................less than 30A at 115VAC or 60A at 230VAC cold start, 25oC Efficiency...............................82%~87% depends on models Hold up time...............................................................>20 ms at rated load and 115VAC Over load protection.........................................auto recovery Short circuit protection.......................................auto recovery Mechanical Specifications: | Over voltage protection.............................................latch off Operating temperature (open frame type)...........0oC to 70oC derating: 2.5% / oC > 50oC Cooling...........................................200W free air convection 250W 18CFM forced air Storage temperature......................................-20oC to +85oC EMI...................................................................EN55022 "B" Harmonics.............................................EN61000-3-2 class D EMS...........................................EN61000-4-2,-3,-4,-5,-6,-11 Safety.................................................UL 60950, UL 60601-1 CSA C22.2 No. 234 & 60601-1 TUV EN60950-1 & 60601-1 | |||||||||||||||||||||||||||
| Notes: | ||||||||||||||||||||||||||||
| Dimensions shown in mm as left. Tolerance: +/-1mm (Excluding cables). Size: 106.7 X 203.2 X 38.1 (mm) 4.2" X 8.0" X 1.5" Packing: Net weight: 740 g approx. / unit Gross weight: 14 kg approx. / carton, 16 units / carton Carton size (mm): 426 (L) x 313 (W) x 267 (H) Connectors: AC input : Terminal blocks DC output: Terminal blocks Fan, Remote sense, LED: Molex 5045-02A or equivalent | ||||||||||||||||||||||||||||
| 1. | ||||||||||||||||||||||||||||
| 2. | ||||||||||||||||||||||||||||
| 3. | ||||||||||||||||||||||||||||
| 4. | ||||||||||||||||||||||||||||
| -Claus- | ||||||||||||||||||||||||||||
| ** This data sheet is only for models selection. For business, engineering specification by model must be used. | ||||||||||||||||||||||||||||
| JUL. 2007 | 4-1 | |||||||||||||||||||||||||||
