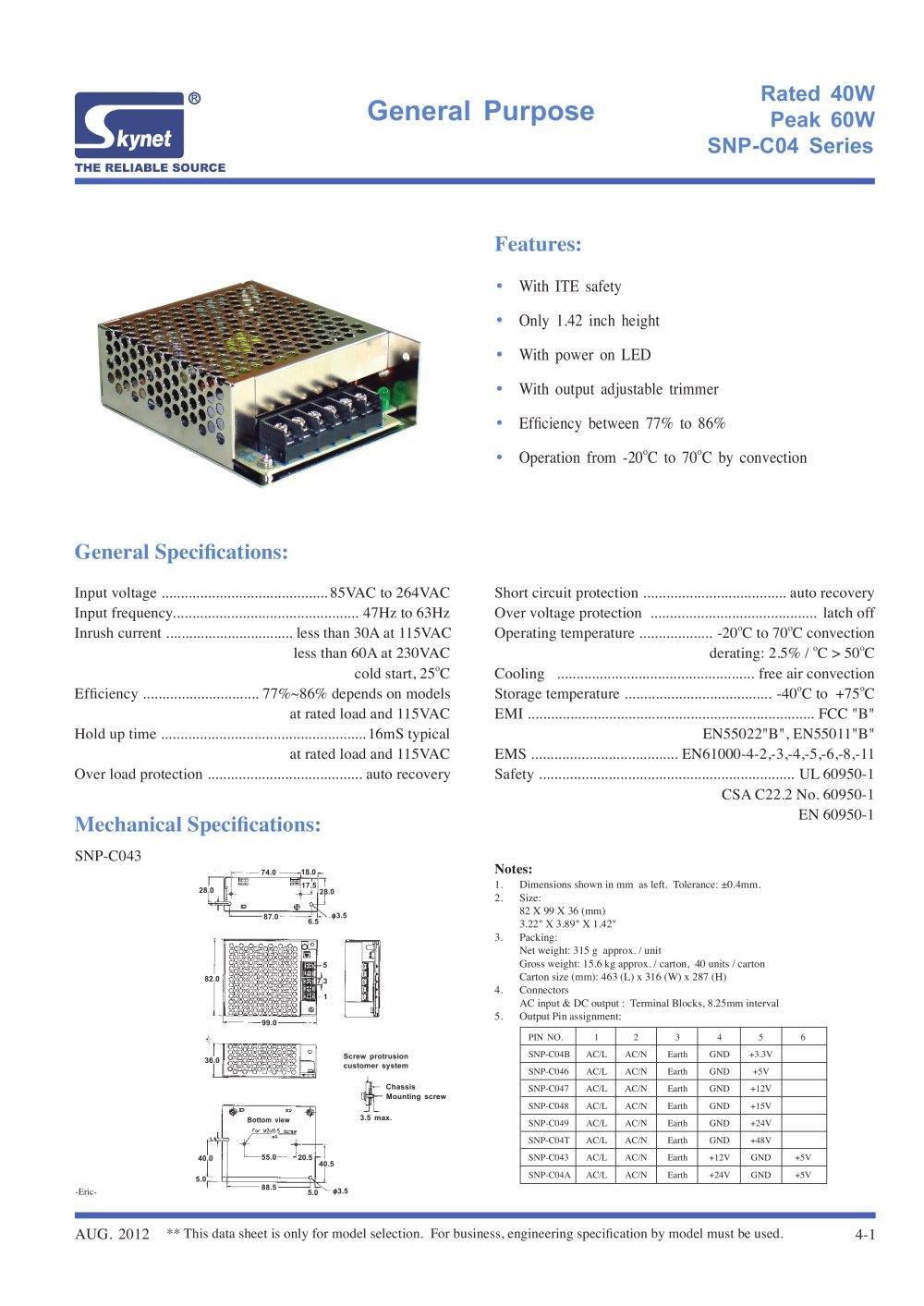

Rated 40W Peak 60W SNP-C04 Series
General Purpose (Universal)
Features:
• With ITE safety
• Only 1.42 inch height
• With power on LED
• With output adjustable trimmer
• Efficiency between 77% to 86%
• Operation from -20oC to 70oC by convection
General Specifications:
Input voltage.........................................85VAC to 264VAC
Input frequency................................................47Hz to 63 Hz
Inrush current..................................less than 30A at115VAC
less than 60A at 230VAC cold start, 25oC
Efficiency................................77%~86% depends on models
at rated load and 115VAC Hold up time..................................................16mS typical
at rated load and 115VAC
Over load protection......................................auto recovery
Short circuit protection.......................................auto recovery
Over voltage protection ..............................................latch off
Operating temperature........................-20oC to 70oC convection
derating: 2.5% / oC > 50oC
Cooling ........................................................free air convection
Storage temperature............................................-40oC to +75oC
EMI...............................................................................FCC "B"
EN55022"B", EN55011"B"
EMS.........................................EN61000-4-2,-3,-4,-5,-6,-8,-11
Safety......................................................................UL 60950-1
CSA C22.2 No. 60950-1
EN 60950-1
Notes:
1. Dimensions shown in mm as left. Tolerance: ±0.4mm.
2. Size:
82 X 99 X 36 (mm) 3.22" X 3.89" X 1.42"
3. Packing:
Net weight: 315 g approx. / unit
Gross weight: 15.6 kg approx. / carton, 40 units / carton
Carton size (mm): 463 (L) x 316 (W) x 287 (H)
4. Connectors
AC input & DC output : Terminal Blocks, 8.25mm interval
5. Output Pin assignment:
Mechanical Specifications:
SNP-C043
74.0
17
[
- ,28.0
28.0
+■
87.0
6.5
gogogogogogogo I gogogogogogogo gogogogogogogo gogogogogogogo gogogogogogogo gogogogogogogo gogogogogogogo gogogogogogogo gogogogogogogo gogogogogogogo gogogogogogogo
-99.0 —
82.0
PIN NO.
1
2
3
4
5
6
SNP-C04B
AC/L
AC/N
Earth
GND
+3.3V
SNP-C046
AC/L
AC/N
Earth
GND
+5V
SNP-C047
AC/L
AC/N
Earth
GND
+12V
SNP-C048
AC/L
AC/N
Earth
GND
+15V
SNP-C049
AC/L
AC/N
Earth
GND
+24V
SNP-C04T
AC/L
AC/N
Earth
GND
+48V
SNP-C043
AC/L
AC/N
Earth
+12V
GND
+5V
SNP-C04A
AC/L
AC/N
Earth
+24V
GND
+5V
oxoxoxoxoxoxo;s; ogogogogogogog
ogogogogogogog
o8°8ooooo8°8oo
I
36.0
Screw protrusion customer system
J§— Chassis Oca— Mounting s
3.5 max.
- I 40.5
40.0
5.0!
5.0 V
-Ken-
o3.5
** This data sheet is only for model selection. For business, engineering specification by model must be used.
AUG. 2008
4-1
