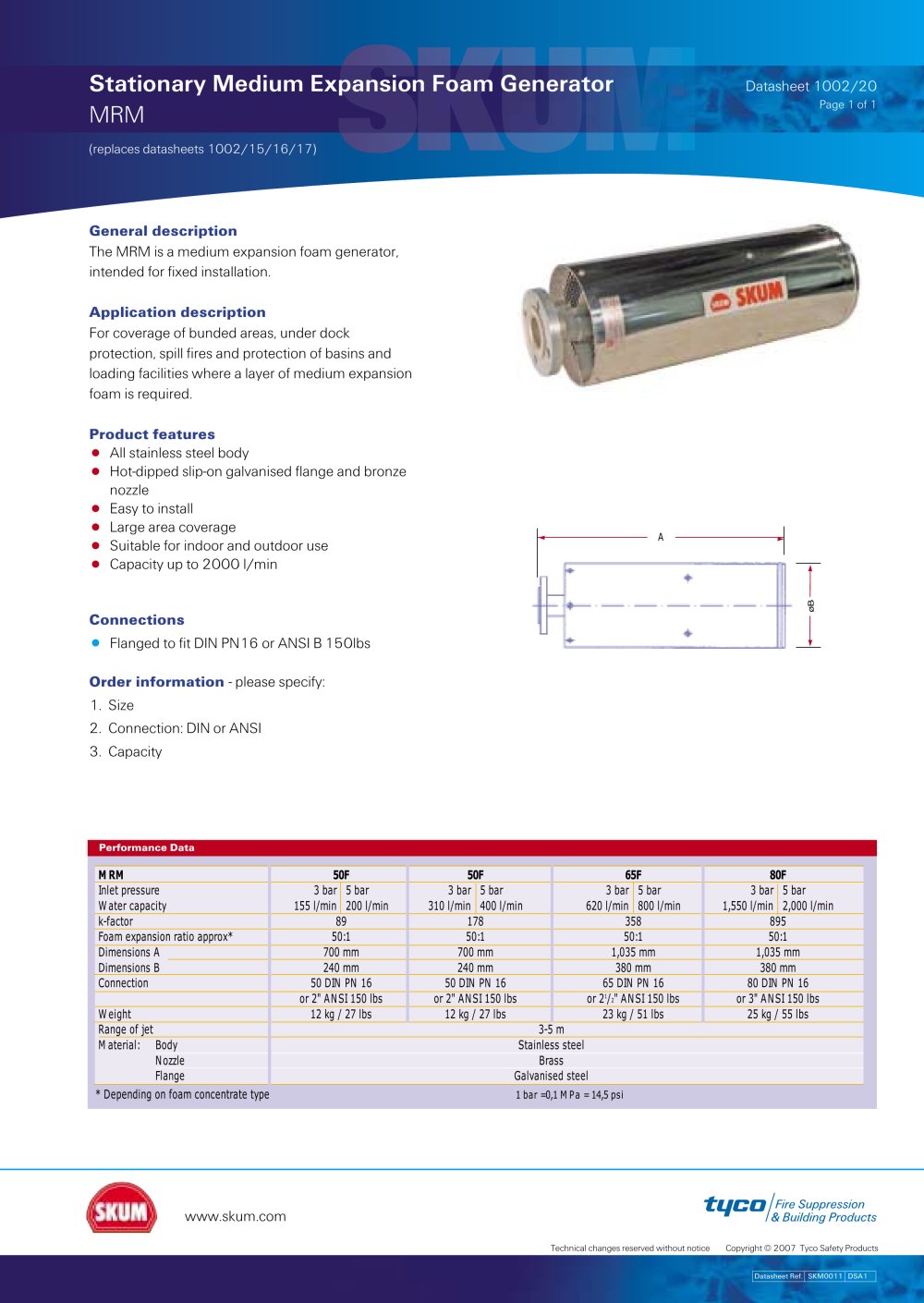

	Stationary Medium Expansion Foam Generator	Datasheet 1002/20
	MRM	Page 1 of 1

(replaces datasheets 1002/15/16/17)

General description

The MRM is a medium expansion foam generator, intended for fixed installation.

Application description

For coverage of bunded areas, under dock protection, spill fires and protection of basins and loading facilities where a layer of medium expansion foam is required.

Product features

All stainless steel body

Hot-dipped slip-on galvanised flange and bronze nozzle

Easy to install

Large area coverage

Suitable for indoor and outdoor use

• Capacity up to 2000 l/min

Connections

• Flanged to fit DIN PN16 or ANSI B 150lbs

Order information - please specify:

1. Size

2. Connection: DIN or ANSI

3. Capacity

Performance Data


MRM	50F		50F		65F 80F
Inlet pressure	3 bar	5 bar	3 bar	5 bar	3 bar	5 bar	3 bar	5 bar
Water capacity	155 l/min	200 l/min	310 l/min	400 l/min	620 l/min	800 l/min	1,550 l/min	2,000 l/min
k-factor	89		178		358		895
Foam expansion ratio approx*	50:1		50:1		50:1		50:1
Dimensions A	700 mm		700 mm		1,035 mm		1,035 mm
Dimensions B	240 mm		240 mm		380 mm		380 mm
Connection	50 DIN PN 16		50 DIN PN 16		65 DIN PN 16		80 DIN PN 16
	or 2" ANSI 150 lbs		or 2" ANSI 150 lbs		or 2V2" ANSI 150 lbs		or 3" ANSI 150 lbs
Weight	12 kg / 27 lbs		12 kg / 27 lbs		23 kg / 51 lbs		25 kg / 55 lbs

Range of jet I 3-5 m

Material: Body Stainless steel

Nozzle Brass

Range Galvanised steel

* Depending on foam concentrate type 1 bar =0,1 M Pa = 14,5 psi

www.skum.com

I & Building Products

Datasheet Ref. I SKM0011 I DSM
