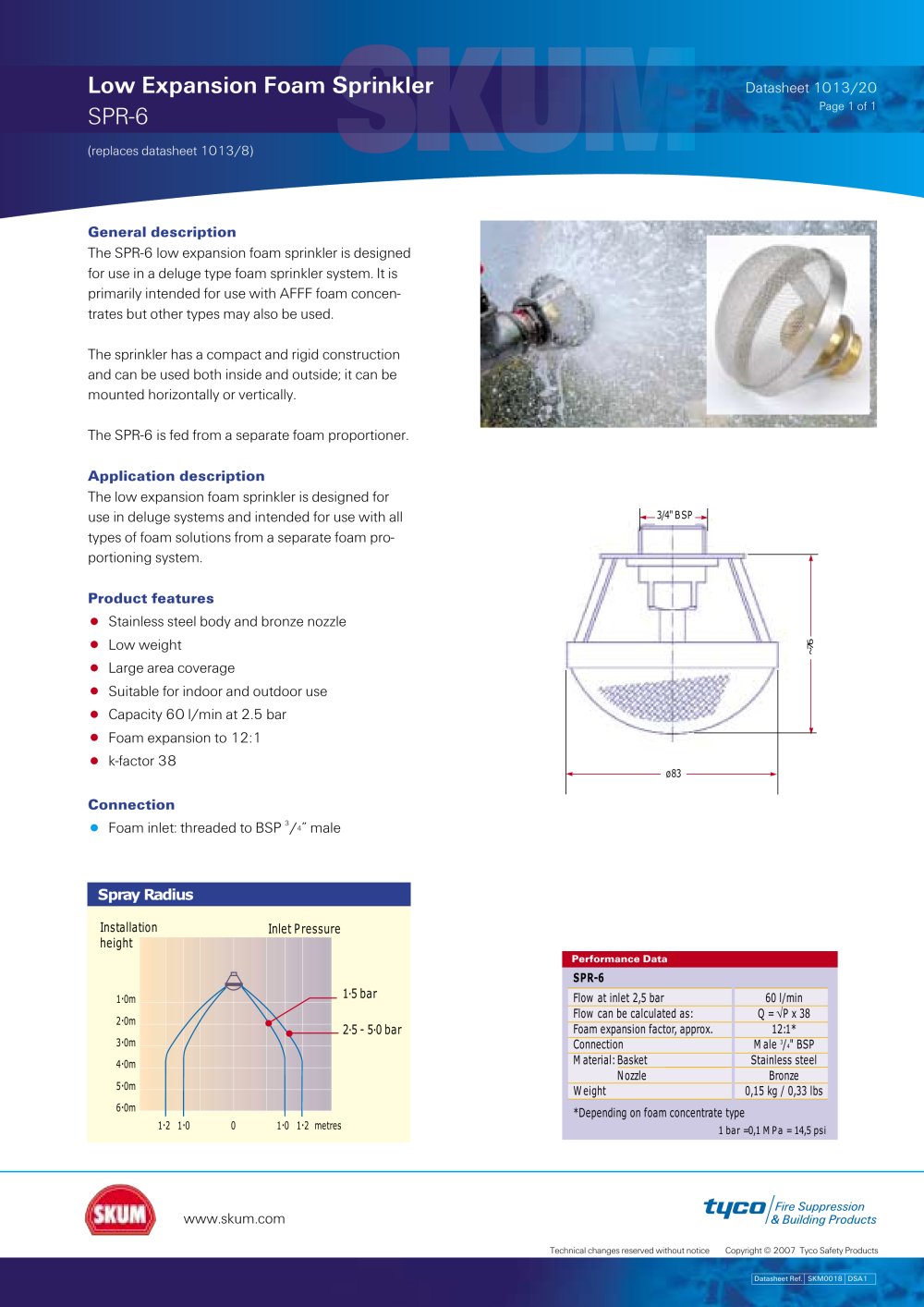

Low Expansion Foam Sprinkler

Datasheet 1013/20

SPR-6

Page 1 of 1 (replaces datasheet 1013/8) General description The SPR-6 low expansion foam sprinkler is designedfor use in a deluge type foam sprinkler system. It is primarily intended for use with AFFF foam concen- trates but other types may also be used.The sprinkler has a compact and rigid constructionand can be used both inside and outside; it can be mounted horizontally or vertically.The SPR-6 is fed from a separate foam proportioner. Application description The low expansion foam sprinkler is designed foruse in deluge systems and intended for use with all types of foam solutions from a separate foam pro- portioning system. Product features
3/4" BSP

Low Expansion Foam Sprinkler - 32929 • •

Stainless steel body and bronze nozzle

•

Low weight
~76

•

Large area coverage

•

Suitable for indoor and outdoor use

•

Capacity 60 l/min at 2.5 bar

•

Foam expansion to 12:1 k-factor 38
ø83 Connection

•

Foam inlet: threaded to BSP
3 /
4 ” male
Spray Radius Installationheight Inlet Pressure1·5 bar2·5 - 5·0 bar Performance Data SPR-6 1 · 0m2 Flow at inlet 2,5 bar60 l/minFlow can be calculated as:Q = · 0m3 √ P x 38Foam expansion factor, approx.12:1* ConnectionMale · 0m4 3 / 4 " BSPMaterial:BasketStainless steelNozzleBronzeWeight0,15 kg / 0,33 lbs*Depending on foam concentrate type · 0m5 · 0m6 · 0mmetres 1 · 2 1 · 0 0 1 · 0 1 · 2 1 bar =0,1 MPa = 14,5 psi www.skum.com
Technical changes reserved without noticeCopyright © 2007 Tyco Safety Products Datasheet Ref. SKM0018 DSA1
