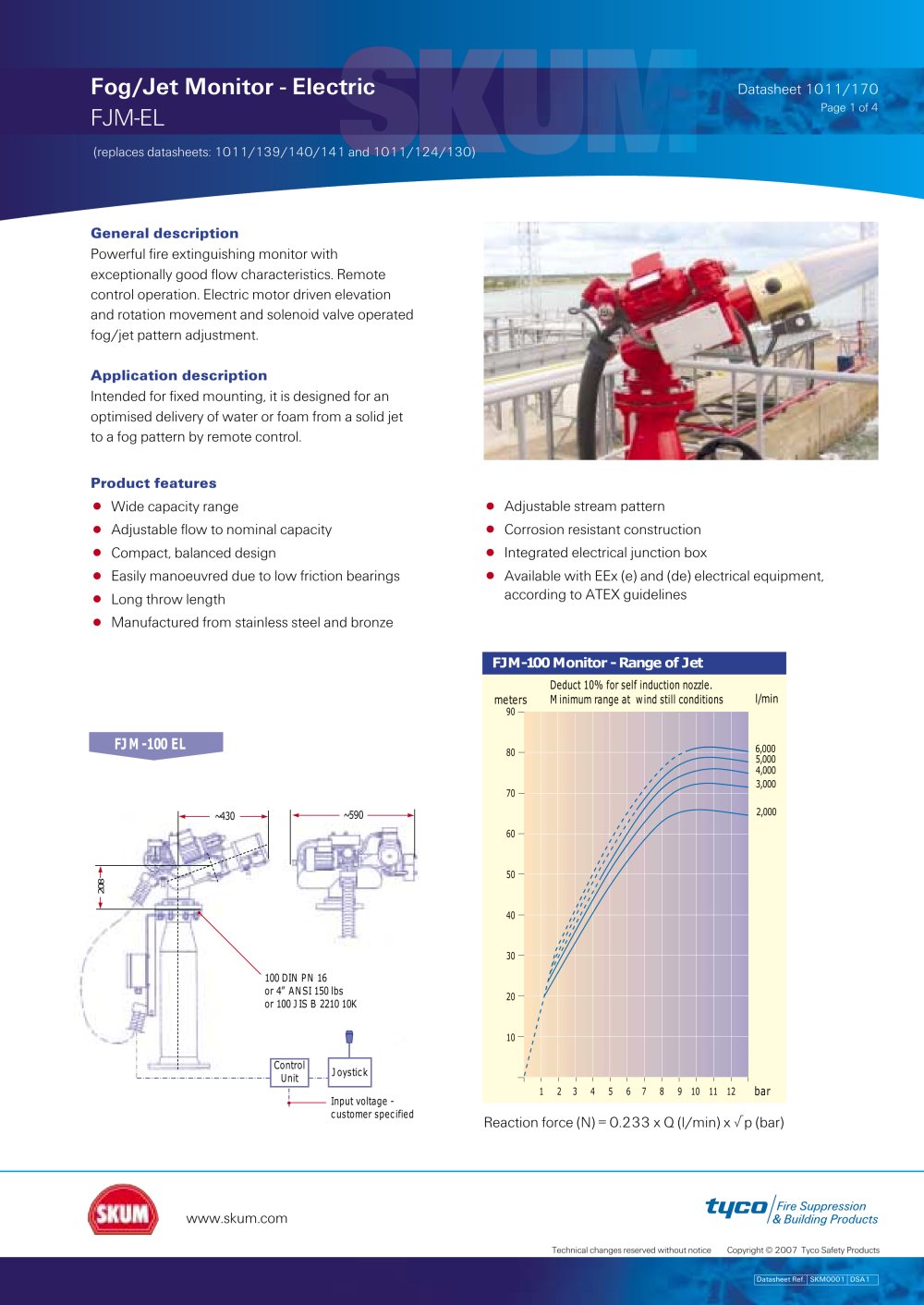

Fog/Jet Monitor - Electric

Datasheet 1011/170

FJM-EL

Page 1 of 4 (replaces datasheets: 1011/139/140/141 and 1011/124/130) 6,0005,0004,0003,0002,000 General description Powerful fire extinguishing monitor withexceptionally good flow characteristics. Remote control operation. Electric motor driven elevation and rotation movement and solenoid valve operated fog/jet pattern adjustment. Application description Intended for fixed mounting, it is designed for anoptimised delivery of water or foam from a solid jet to a fog pattern by remote control. Product features

Fog/Jet Monitor - Electric - 32929 • •

Wide capacity range

• •

Adjustable stream pattern

•

Adjustable flow to nominal capacity

•

Corrosion resistant construction

•

Compact, balanced design

•

Integrated electrical junction box

•

Easily manoeuvred due to low friction bearings Available with EEx (e) and (de) electrical equipment, according to ATEX guidelines

•

Long throw length Manufactured from stainless steel and bronze
FJM-100 Monitor - Range of Jet Deduct 10% for self induction nozzle.Minimum range at wind still conditions meters l/min FJM-100 EL
~430 ~590 208 100 DIN PN 16 or 4” ANSI 150 lbs or 100 JIS B 2210 10K ControlUnit Joystick 1 2 3 4 5 6 7 8 9 10 11 12 9080 70 60 50 40 30 20 10 bar Input voltage - customer specified Reaction force (N) = 0.233 x Q (l/min) x √p (bar) www.skum.com
Technical changes reserved without noticeCopyright © 2007 Tyco Safety Products Datasheet Ref. SKM0001 DSA1
