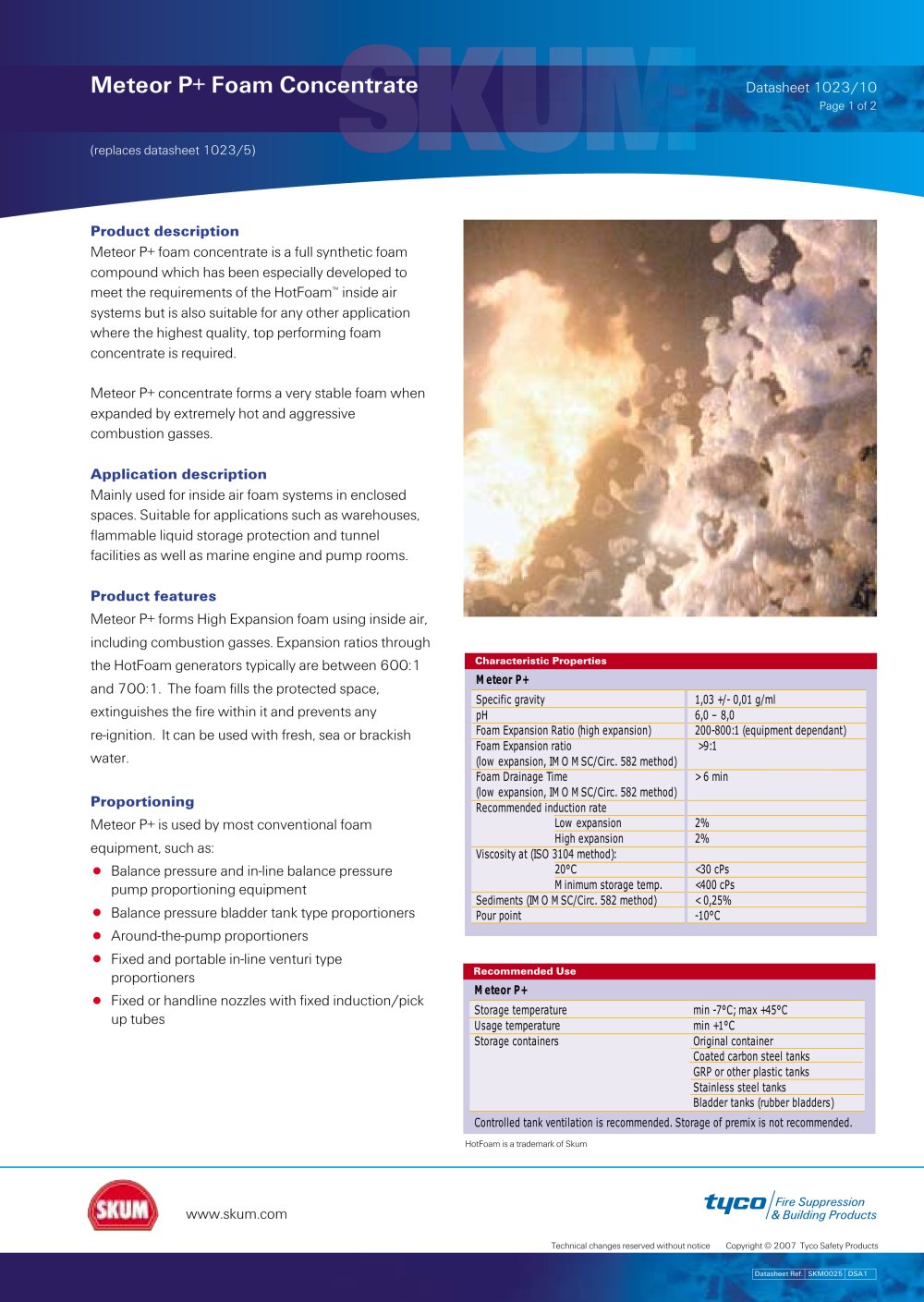

Meteor P+ Foam Concentrate

Datasheet 1023/10
Page 1 of 2 (replaces datasheet 1023/5) Product description Meteor P+ foam concentrate is a full synthetic foamcompound which has been especially developed to meet the requirements of the HotFoam
™ inside airsystems but is also suitable for any other application where the highest quality, top performing foam concentrate is required.Meteor P+ concentrate forms a very stable foam whenexpanded by extremely hot and aggressive combustion gasses. Proportioning Application description Meteor P+ is used by most conventional foam equipment, such as: Mainly used for inside air foam systems in enclosedspaces. Suitable for applications such as warehouses, flammable liquid storage protection and tunnel facilities as well as marine engine and pump rooms. Product features Meteor P+ forms High Expansion foam using inside air, including combustion gasses. Expansion ratios through the HotFoam generators typically are between 600:1 and 700:1. The foam fills the protected space, extinguishes the fire within it and prevents any re-ignition. It can be used with fresh, sea or brackish water.
Characteristic Properties Meteor P+ Specific gravity 1,03 +/- 0,01 g/mlpH 6,0 – 8,0 Foam Expansion Ratio (high expansion) 200-800:1 (equipment dependant) Foam Expansion ratio>9:1 (low expansion, IMO MSC/Circ. 582 method) Foam Drainage Time > 6 min (low expansion, IMO MSC/Circ. 582 method) Recommended induction rateLow expansion 2% High expansion 2%Viscosity at (ISO 3104 method):20°C <30 cPs Minimum storage temp. <400 cPsSediments (IMO MSC/Circ. 582 method) • Balance pressure and in-line balance pressure pump proportioning equipment

Foam concentrate 'Meteor P+' - 32929 • •

Balance pressure bladder tank type proportioners

•

Around-the-pump proportioners Fixed and portable in-line venturi type proportioners
Recommended Use

•

Fixed or handline nozzles with fixed induction/pick up tubes
Meteor P+ Storage temperature min -7°C; max +45°CUsage temperature min +1°C Storage containersOriginal containerCoated carbon steel tanks GRP or other plastic tanks Stainless steel tanks Bladder tanks (rubber bladders)Controlled tank ventilation is recommended. Storage of premix is not recommended. HotFoam is a trademark of Skum www.skum.com
Technical changes reserved without noticeCopyright © 2007 Tyco Safety Products Datasheet Ref. SKM0025 DSA1
