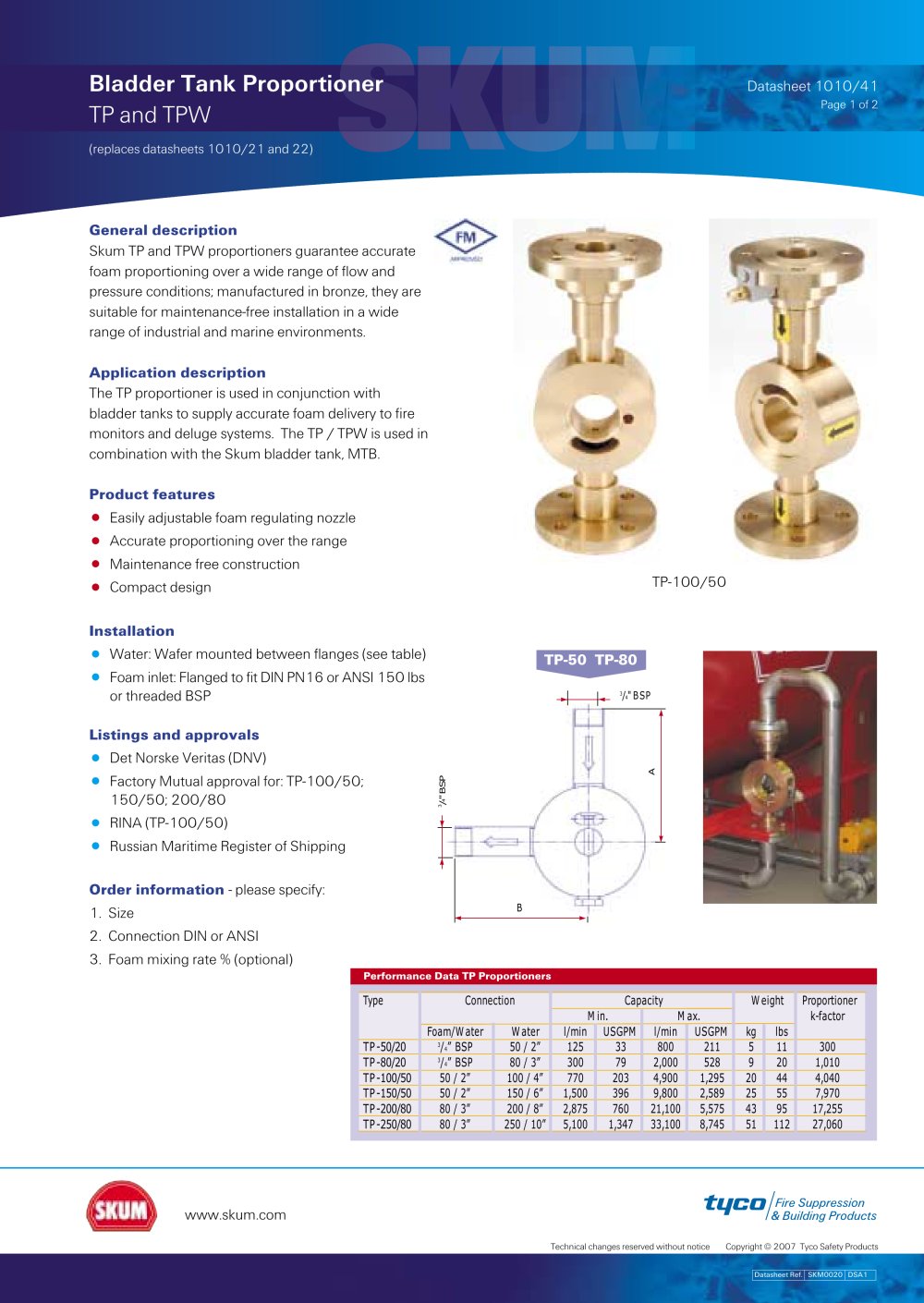

Bladder Tank Proporti

TP and TPW

Datasheet 1010/41

Page 1 of 2

General description

Skum TP and TPW proportioners guarantee accurate foam proportioning over a wide range of flow and pressure conditions; manufactured in bronze, they are suitable for maintenance-free installation in a wide range of industrial and marine environments.

Application description

The TP proportioner is used in conjunction with bladder tanks to supply accurate foam delivery to fire monitors and deluge systems. The TP / TPW is used in combination with the Skum bladder tank, MTB.

Product features

• Easily adjustable foam regulating nozzle Accurate proportioning over the range Maintenance free construction

• Compact design

TP-100/50

Installation

• Water: Wafer mounted between flanges (see table)

• Foam inlet: Flanged to fit DIN PN16 or ANSI 150 lbs

or threaded BSP

Listings and approvals

• Det Norske Veritas (DNV)

• Factory Mutual approval for: TP-100/50; 150/50; 200/80

• RINA (TP-100/50)

Russian Maritime Register of Shipping

Order information - please specify:

1. Size

2. Connection DIN or ANSI

3. Foam mixing rate % (optional)

TP-50 TP-80

³/4" BSP

Performance Data TP Proportioners


Type	Connection			Capacity			Weight		Proportioner
			Min. 1		Max.				k-factor
	Foam/Water	Water	l/min 1	USGPM	l/min	USGPM	kg	lbs
TP-50/20	³/4" BSP	50 / 2"	125	33 1	800	211	5	11	300
TP-80/20	³/4" BSP	80 / 3"	300 1	79	2,000	528	9 1	20	1,010
TP-100/50	50 / 2"	100 / 4"	770 1	203 1	4,900	1,295	20 1	44	4,040
TP-150/50	50 / 2"	150 / 6"	1,500 1	396 1	9,800	2,589	25	55	7,970
TP-200/80	80 / 3"	200 / 8"	2,875 1	760	21,100	5,575	43	95	17,255
TP-250/80	80 / 3"	250 / 10"	5,100	1,347 33,100		8,745	51	112	27,060
