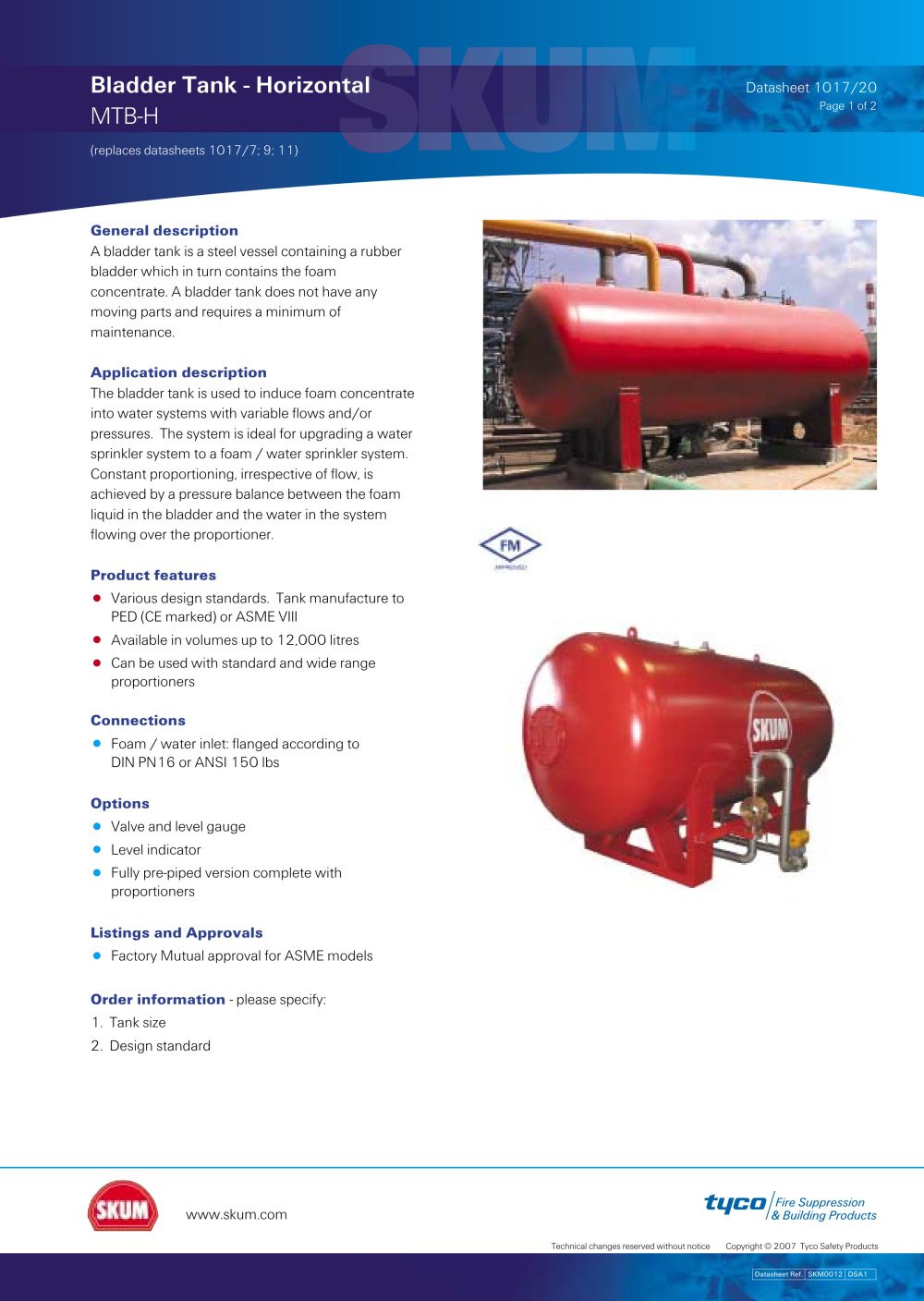

Bladder Tank - Horizontal

Datasheet 1017/20

MTB-H

Page 1 of 2 (replaces datasheets 1017/7; 9; 11) Product features General description A bladder tank is a steel vessel containing a rubberbladder which in turn contains the foam concentrate. A bladder tank does not have any moving parts and requires a minimum of maintenance. Application description The bladder tank is used to induce foam concentrateinto water systems with variable flows and/or pressures. The system is ideal for upgrading a water sprinkler system to a foam / water sprinkler system. Constant proportioning, irrespective of flow, is achieved by a pressure balance between the foam liquid in the bladder and the water in the system flowing over the proportioner.

Bladder Tank - Horizontal - 32929 •

Various design standards. Tank manufacture to PED (CE marked) or ASME VIII

• •

Available in volumes up to 12,000 litres Can be used with standard and wide range proportioners Connections

•

Foam / water inlet: flanged according to DIN PN16 or ANSI 150 lbs Options

• •

Valve and level gauge

•

Level indicator Fully pre-piped version complete with proportioners Listings and Approvals

•

Factory Mutual approval for ASME models Order information - please specify:1. Tank size 2. Design standard www.skum.com
Technical changes reserved without noticeCopyright © 2007 Tyco Safety Products Datasheet Ref. SKM0012 DSA1
