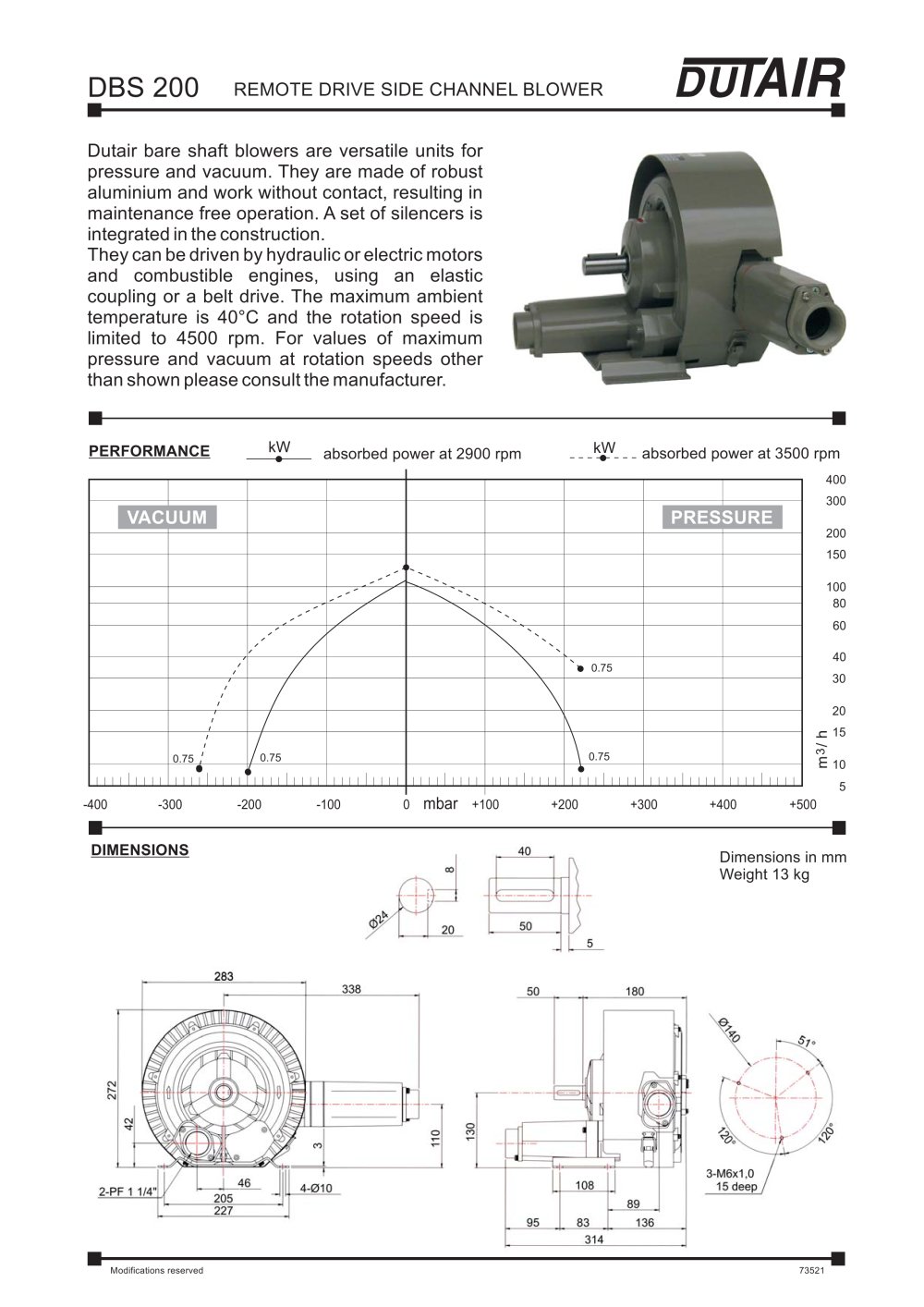

DBS 200 Modifications reserved 73521 PERFORMANCE kW absorbed power at 2900 rpm kW absorbed power at 3500 rpm Dutair bare shaft blowers are versatile units for pressure and vacuum. They are made of robust aluminium and work without contact, resulting in maintenance free operation. A set of silencers is integrated in the construction. They can be driven by hydraulic or electric motors and combustible engines, using a belt drive. The maximum ambient temperature is 40°C and the rotation speed is limited to 4500 rpm. For values of maximum pressure and vacuum at rotation speeds other than shown please consult the manufacturer. an elastic coupling or -400 -300 -200 -100 0 mbar +100 +200 +300 +400 +500 40 30 20 15 10 5 60 80 100 150 200 300 400 m3/h VACUUM PRESSURE 0.75 0.75 0.75 0.75 REMOTE DRIVE SIDE CHANNEL BLOWER DIMENSIONS Dimensions in mm Weight 13 kg
