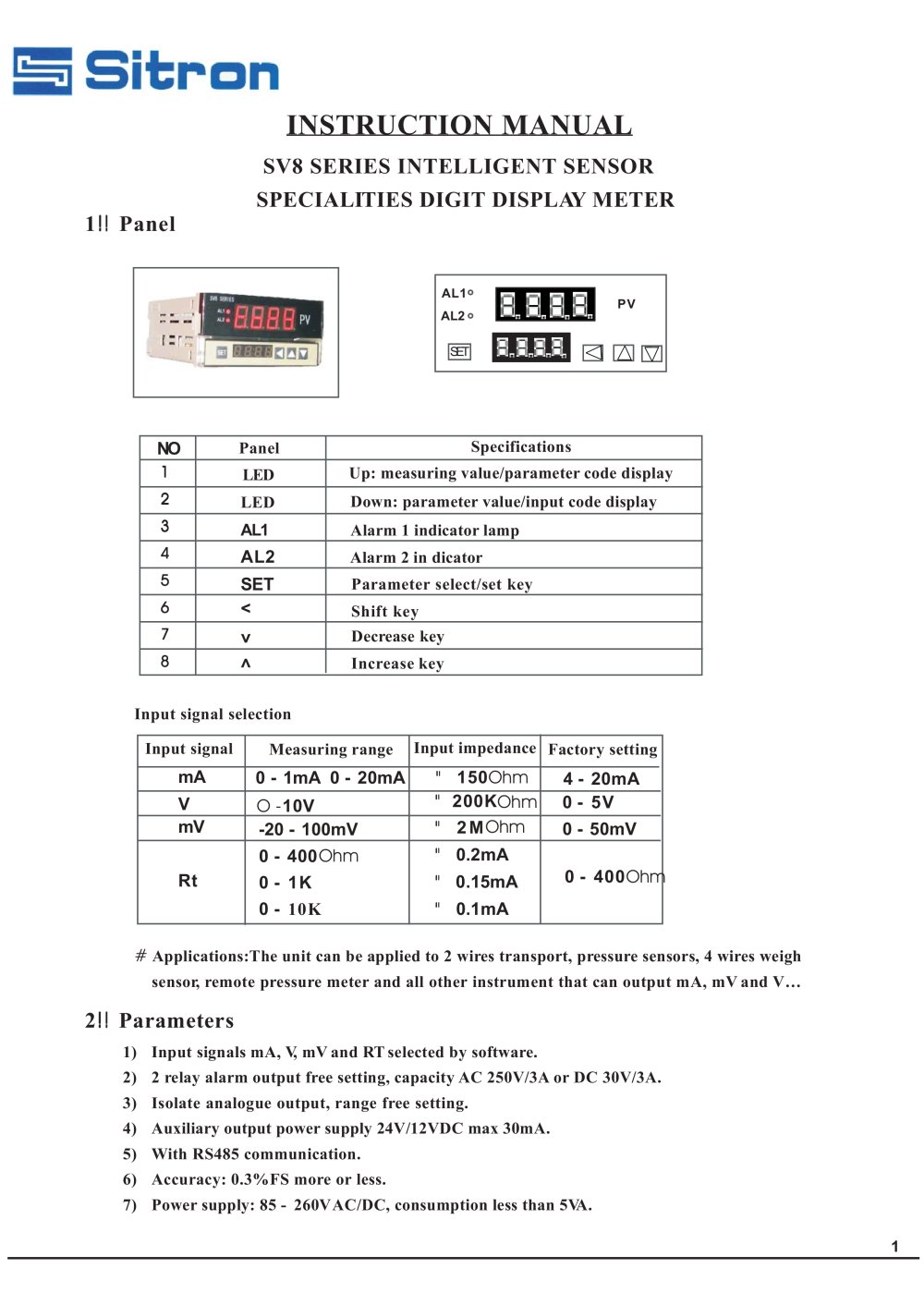

INSTRUCTION MANUAL

SV8 SERIES INTELLIGENT SENSOR SPECIALITIES DIGIT DISPLAY METER

1!! Panel


NO	Panel	Specifications
1	LED	Up: measuring value/parameter code display
2	LED	Down: parameter value/input code display
3	AL1	Alarm 1 indicator lamp
4	AL2	Alarm 2 in dicator
5	SET	Parameter select/set key
6	<	Shift key
⁷	V	Decrease key
00	A	Increase key

Input signal selection


Input signal mA	Measuring range	Input impedance	Factory setting
Input signal mA	0 - 1mA 0 - 20mA	'' 150Ohm	4 - 20mA
V	O- 10V	200KOhm	0- 5V
mV	-20 - 100mV	'' 2MOhm	0 - 50mV
	0 - 400Ohm	'' 0.2mA
Rt	0- 1K	'' 0.15mA	0 - 400Ohm
	0- 10K	'' 0.1mA

# Applications:The unit can be applied to 2 wires transport, pressure sensors, 4 wires weigh sensor, remote pressure meter and all other instrument that can output mA, mV and V...

2!! Parameters

1) Input signals mA, V mV and RT selected by software.

2) 2 relay alarm output free setting, capacity AC 250V/3A or DC 30V/3A.

3) Isolate analogue output, range free setting.

4) Auxiliary output power supply 24V/12VDC max 30mA.

5) With RS485 communication.

6) Accuracy: 0.3%FS more or less.

7) Power supply: 85 - 260VAC/DC, consumption less than 5VA.
