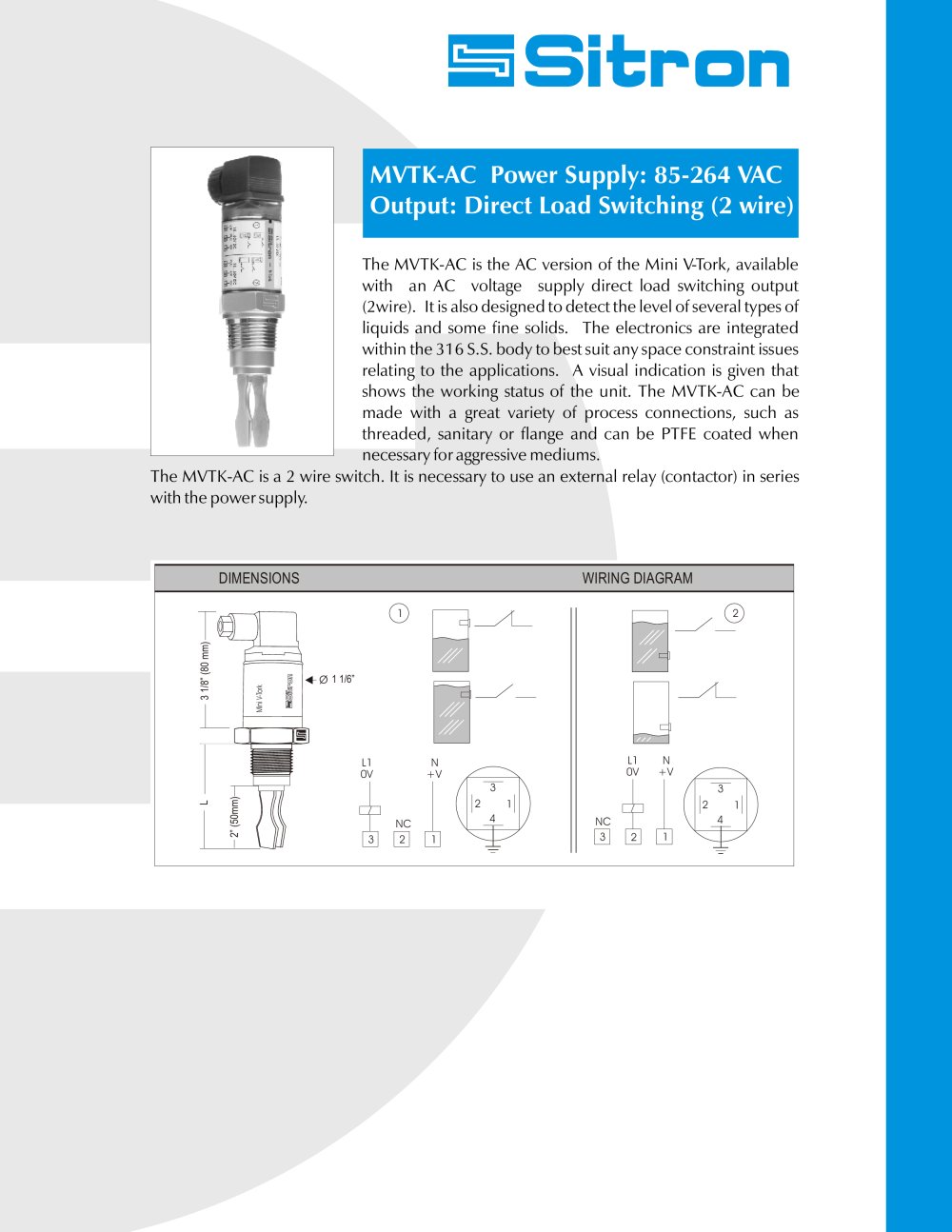

The MVTK-AC is the AC version of the Mini V-Tork, available with an AC voltage supply direct load switching output (2wire). It is also designed to detect the level of several types of liquids and some fine solids. The electronics are integrated within the 316 S.S. body to best suit any space constraint issues relating to the applications. A visual indication is given that shows the working status of the unit. The MVTK-AC can be made with a great variety of process connections, such as threaded, sanitary or flange and can be PTFE coated when necessary for aggressive mediums. The MVTK-AC is a 2 wire switch. It is necessary to use an external relay (contactor) in series with the power supply. DIMENSIONSWIRING DIAGRAM 1 2 Ø 1 1/6” 3 1/8” (80 mm) Mini V-Tork 0V321 +VNCL1N0V321 +VNCL1N 11223344 2” (50mm)L
|
