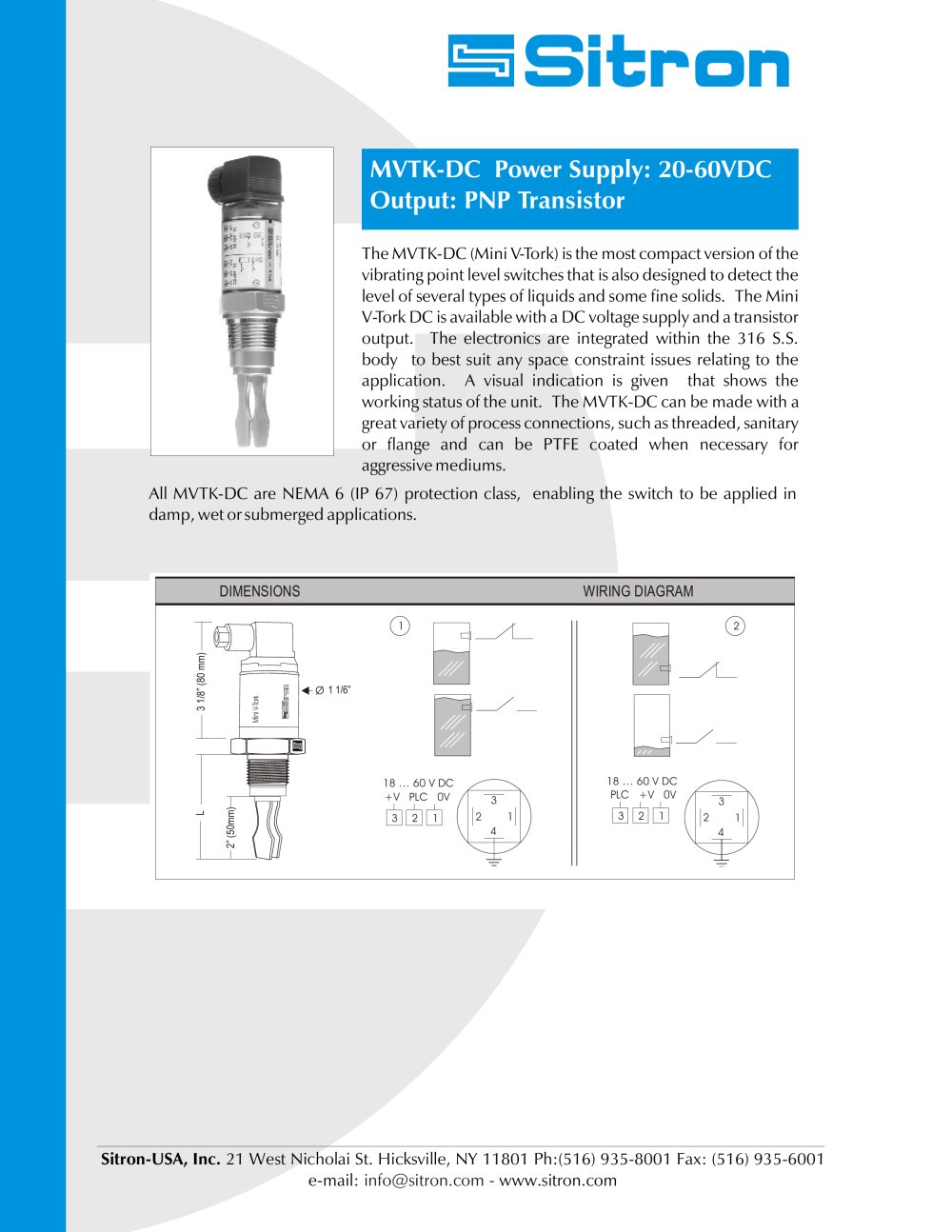

The MVTK-DC (Mini V-Tork) is the most compact version of the vibrating point
level switches that is also designed to detect the level of several types of liquids and some fine solids. The Mini V-Tork DC is available with a DC voltage supply and a transistor output. The electronics are integrated within the 316 S.S. body to best suit any space constraint issues relating to the application. A visual indication is given that shows the working status of the unit. The MVTK-DC can be made with a great variety of process connections, such as threaded, sanitary or flange and can be PTFE coated when necessary for aggressive mediums. All MVTK-DC are NEMA 6 (IP 67) protection class, enabling the switch to be applied in damp, wet or submerged applications.
DIMENSIONSWIRING DIAGRAM 1 2 Ø 1 1/6” 3 1/8” (80 mm) Mini V-Tork 18 … 60 V DC18 … 60 V DC11223344 +V PLC 0V321 PLC +V 0V321 2” (50mm)L Sitron-USA, Inc. 21 West Nicholai St. Hicksville, NY 11801 Ph:(516) 935-8001 Fax: (516) 935-6001 e-mail: www.sitron.cominfo@sitron.com -
