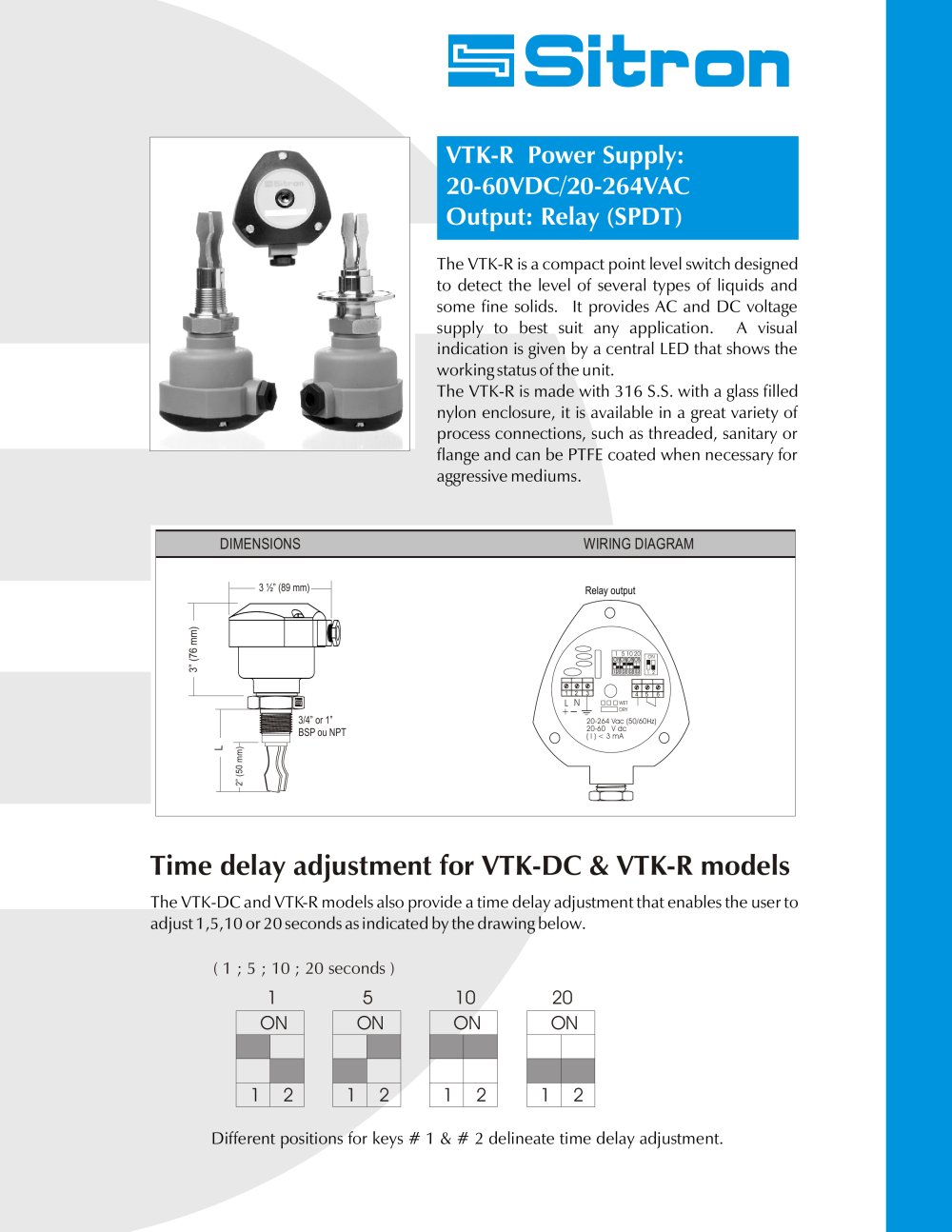

VTK-R Power Supply: 20-60VDC/20-264VAC
Output: Relay (SPDT) The VTK-R is a compact point level switch designed to detect the level of several types of liquids and some fine solids. It provides AC and DC voltage supply to best suit any application. A visual indication is given by a central LED that shows the working status of the unit. The VTK-R is made with 316 S.S. with a glass filled nylon enclosure, it is available in a great variety of process connections, such as threaded, sanitary or flange and can be PTFE coated when necessary for aggressive mediums. The VTK-DC and VTK-R models also provide a time delay adjustment that enables the user to adjust 1,5,10 or 20 seconds as indicated by the drawing below. DIMENSIONSWIRING DIAGRAM 3 ½” (89 mm) Relay output 151020 ON ON ON ON ON12 3” (76 mm) 12 12 12 12 123 456 L N DRYWET 3/4” or 1”BSP ou NPT 20-264 Vac (50/60Hz)20-60 V dc
( I ) < 3 mA L 2” (50 mm) Time delay adjustment for VTK-DC & VTK-R models ( 1 ; 5 ; 10 ; 20 seconds ) 112121212ONONONON51020 Different positions for keys # 1 & # 2 delineate time delay adjustment.
|
