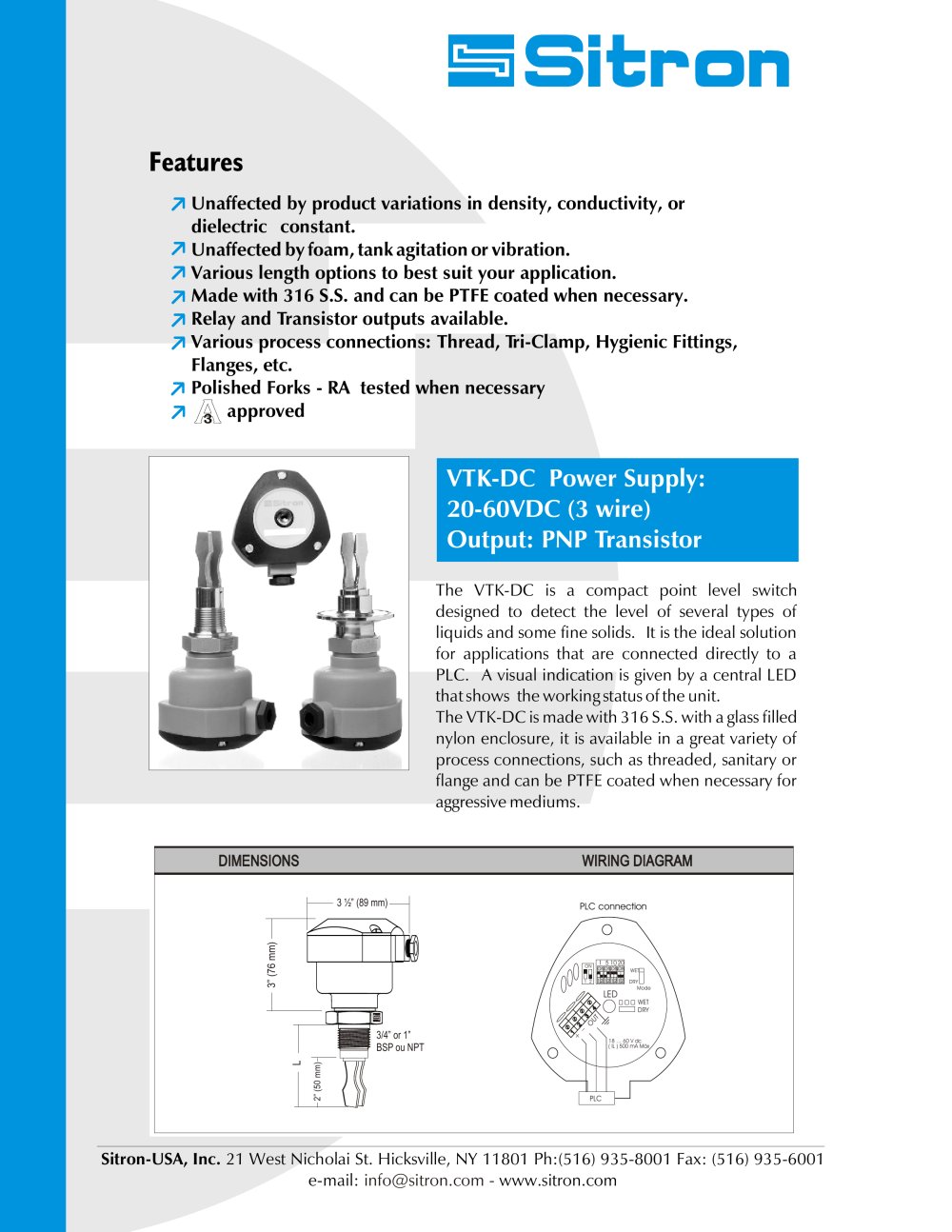

Features Unaffected by product variations in density, conductivity, or dielectric constant. Unaffected by foam, tank agitation or vibration. Various length options to best suit your application. Made with 316 S.S. and can be PTFE coated when necessary. Relay and Transistor outputs available. Various process connections: Thread, Tri-Clamp, Hygienic Fittings, Flanges, etc. Polished Forks - RA tested when necessary approved VTK-Dc power supply: 20-60VDC (3 wire) Output: PNP Transistor The VTK-DC is a compact point level switch designed to detect the level of several types of liquids and some fine solids. It is the ideal solution for applications that are connected directly to a PLC. A visual indication is given by a central LED that shows the working status of the unit. The VTK-DC is made with 316 S.S. with a glass filled nylon enclosure, it is available in a great variety of process connections, such as threaded, sanitary or flange and can be PTFE coated when necessary for aggressive mediums.

DIMENSIONS DIMENSIONS WIRING DIAGRAM WIRING DIAGRAM 3 ½” (89 mm)

12 12 12 12
3” (76 mm)

1234

L 2” (50 mm)
