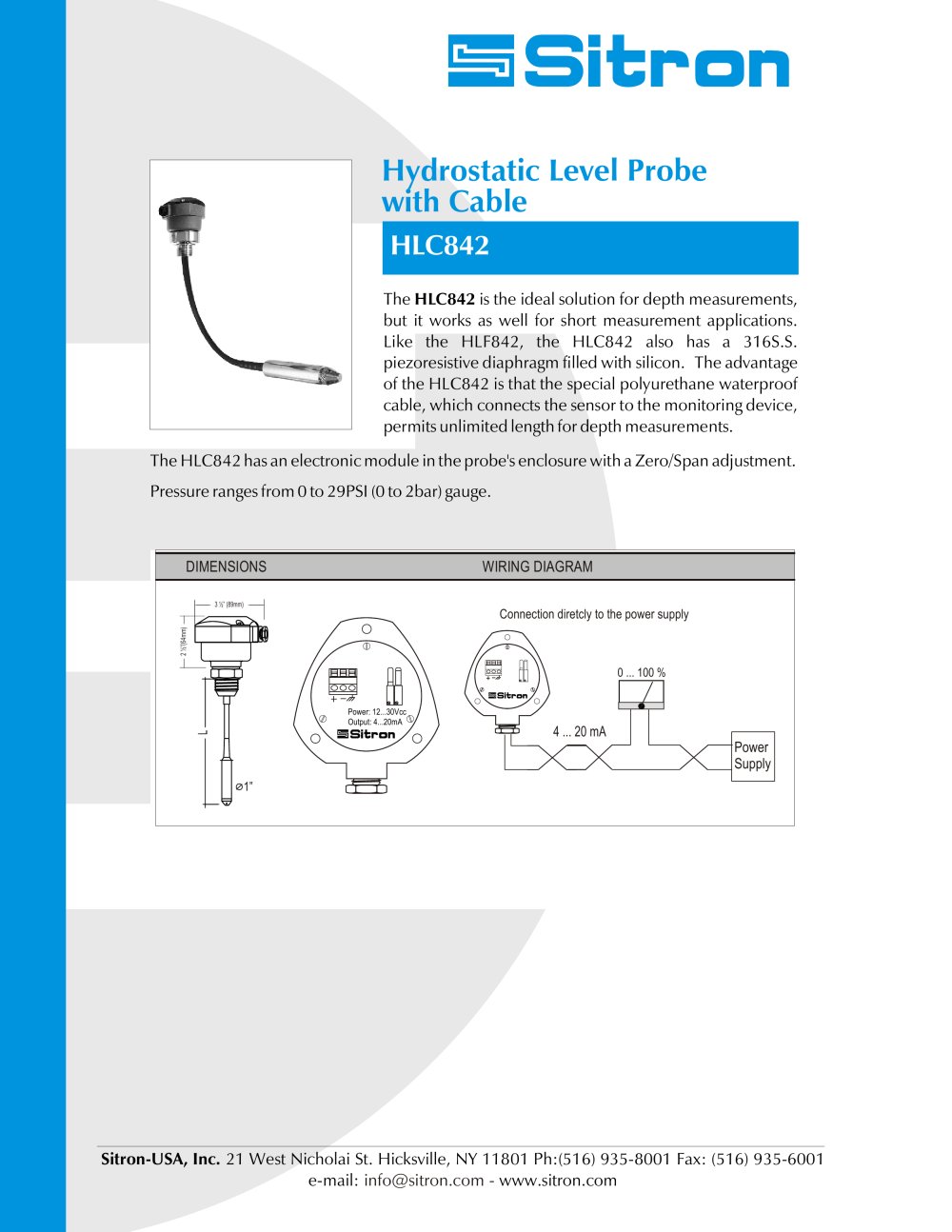

Hydrostatic Level Probewith Cable

HLC842

The HLC842 is the ideal solution for depth measurements, but it works as well for short measurement applications. Like the HLF842, the HLC842 also has a 316S.S. piezoresistive industrial diaphragm filled with silicon. The advantage of the HLC842 is that the special polyurethane waterproof cable, which connects the sensor to the monitoring device, permits unlimited length for depth measurements. The HLC842 has an electronic module in the probe's enclosure with a Zero/Span adjustment.Pressure ranges from 0 to 29PSI (0 to 2bar) gauge.
DIMENSIONSWIRING DIAGRAM 3 ½” (89mm) Connection diretcly to the power supply 2 ½”(64mm) 0 ... 100 % Power: 12...30VccOutput: 4...20mA L 4 ... 20 mA PowerSupply 1” Sitron-USA, Inc. 21 West Nicholai St. Hicksville, NY 11801 Ph:(516) 935-8001 Fax: (516) 935-6001 e-mail: www.sitron.cominfo@sitron.com -
