Features

Simple InstallationFully Submersible NEMA 6P (IP68) Special polyurethane cable for long lengths Ceramic or 316 S.S. Piezoresistive cells Analog output 4-20mA Zero and Span adjustment Long term stability Sanitary connections available for food processing and pharmaceutical industries

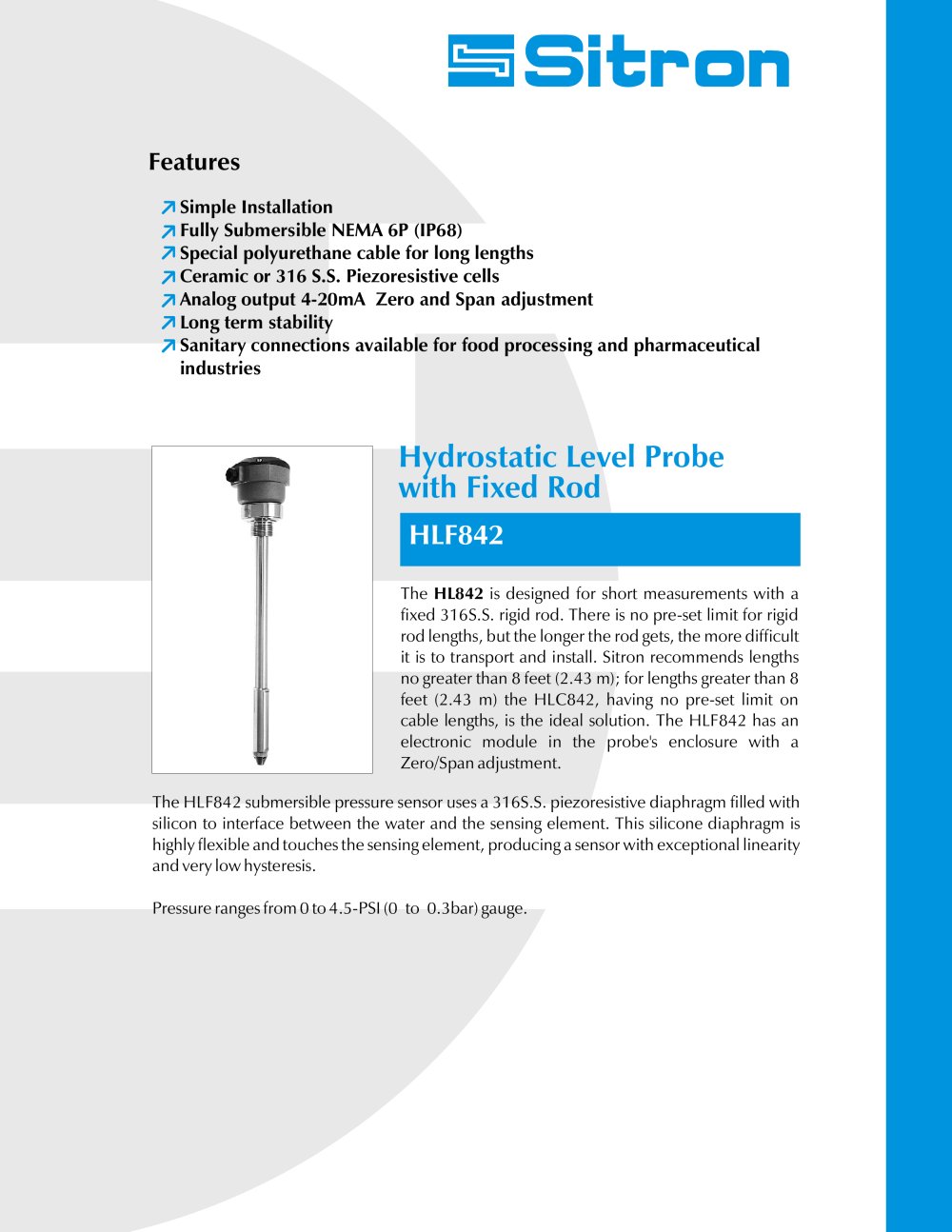

Hydrostatic Level Probewith Fixed Rod

HLF842

The HL842 is designed for short measurements with a fixed 316S.S. rigid rod. There is no pre-set limit for rigid rod lengths, but the longer the rod gets, the more difficult it is to transport and install. Sitron recommends lengths no greater than 8 feet (2.43 m); for lengths greater than 8 feet (2.43 m) the HLC842, having no pre-set limit on cable lengths, is the ideal solution. The HLF842 has an electronic module in the probe's enclosure with a Zero/Span adjustment.The HLF842 submersible pressure sensor manufacturer uses a 316S.S. piezoresistive diaphragm filled with silicon to interface between the water and the sensing element. This silicone diaphragm is highly flexible and touches the sensing element, producing a sensor with exceptional linearity and very low hysteresis.Pressure ranges from 0 to 4.5-PSI (0 to 0.3bar) gauge.
