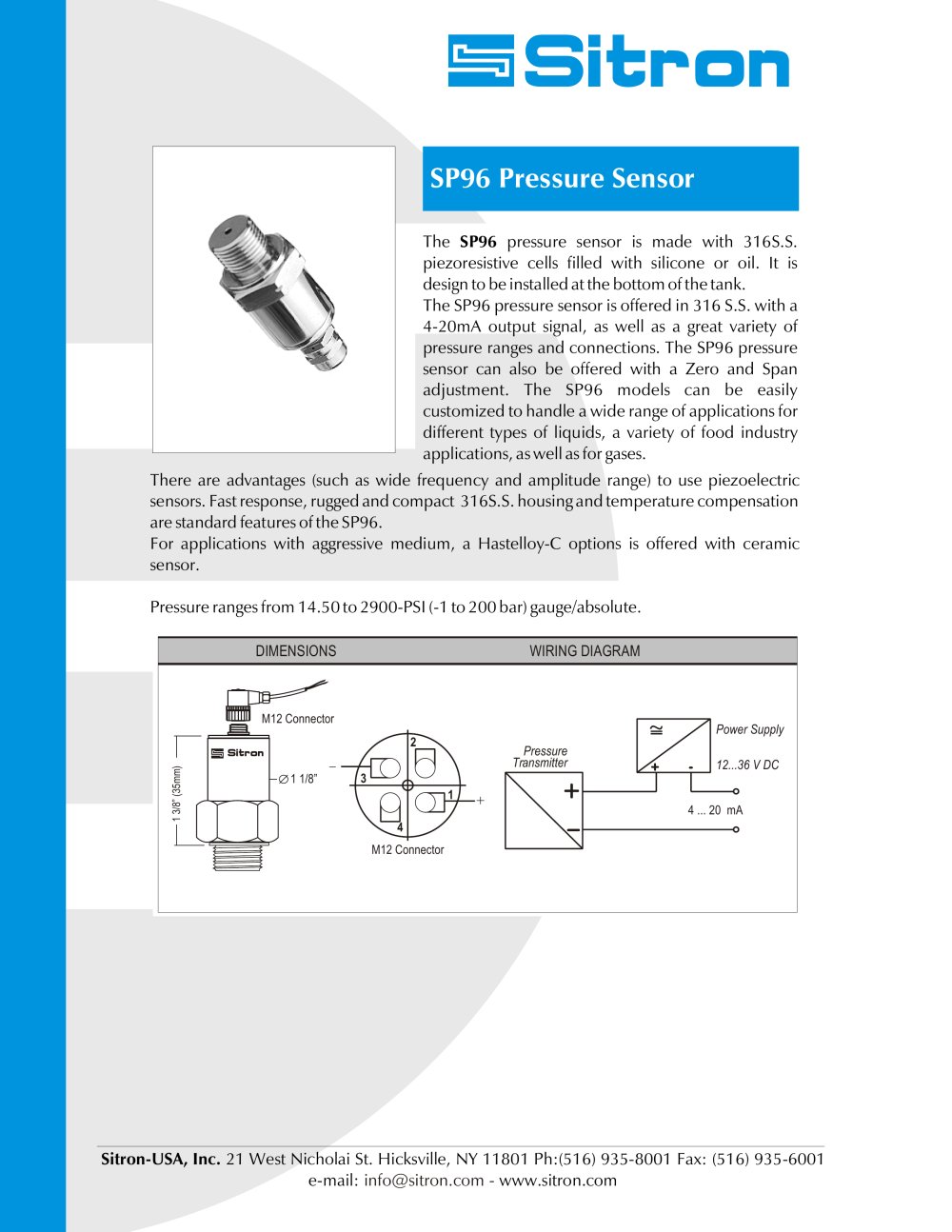

The SP96 pressure sensor is made with 316S.S. piezoresistive cells filled with silicone or oil. It is design to be installed at the bottom of the tank. The SP96 pressure sensor is offered in 316 S.S. with a 4-20mA output signal, as well as a great variety of pressure ranges and connections. The SP96 pressure sensor can also be offered with a Zero and Span adjustment. The SP96 models can be easily customized to handle a wide range of applications for different types of liquids, a variety of food industry applications, as well as for gases. There are advantages (such as wide frequency and amplitude range) to use
piezoelectric sensors. Fast response, rugged and compact 316S.S. housing and temperature compensation are standard features of the SP96.
For applications with aggressive medium, a Hastelloy-C options is offered with ceramic sensor.Pressure ranges from 14.50 to 2900-PSI (-1 to 200 bar) gauge/absolute.
DIMENSIONSWIRING DIAGRAM M12 Connector
M12 Connector Pressure TransmitterPower Supply12...36 V DC 1 1/8” 1234 +_ 1 3/8” (35mm) 4 ... 20 mA Sitron-USA, Inc. 21 West Nicholai St. Hicksville, NY 11801 Ph:(516) 935-8001 Fax: (516) 935-6001 e-mail: www.sitron.cominfo@sitron.com -
