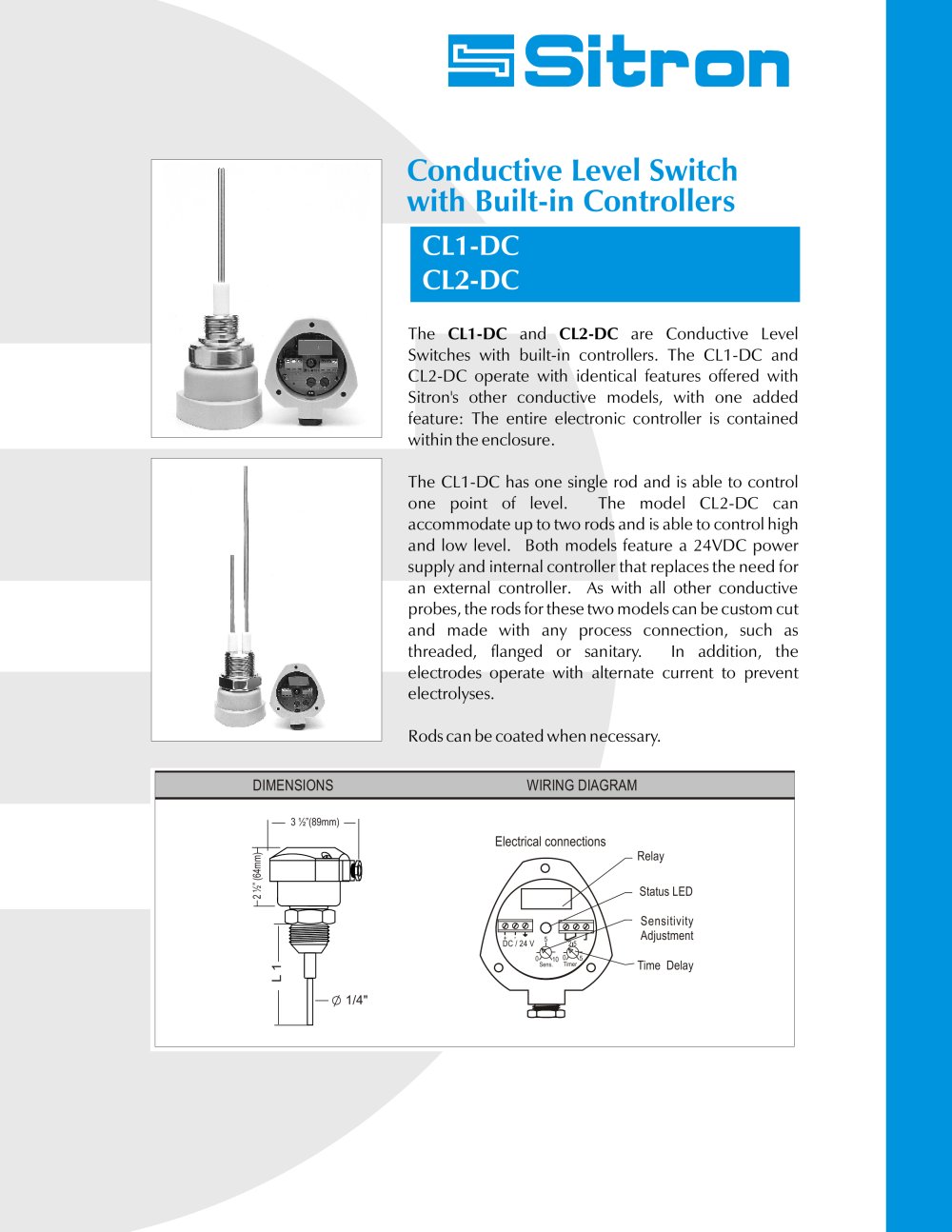

Conductive Level Switchwith Built-in Controllers

CL1-DCCL2-DC

The CL1-DC operate with identical features offered with Sitron's other conductive models, with one added feature: The entire electronic controller is contained within the enclosure. The CL1-DC has one single rod and is able to control one point of level. The model CL2-DC can accommodate up to two rods and is able to control high and low level. Both models feature a 24VDC power supply and internal controller that replaces the need for an external controller. As with all other conductive probes, the rods for these two models can be custom cut and made with any process connection, such as threaded, flanged or sanitary. In addition, the electrodes operate with alternate current to prevent electrolyses.Rods can be coated when necessary. and CL2-DC are Conductive Level switches with built-in controllers. The CL1-DC and CL2-DC
DIMENSIONSWIRING DIAGRAM 3 ½”(89mm) Electrical connections 2 ½” (64mm) Status LEDRelayTime DelaySensitivityAdjustment ( I. Max 5 A )( V. 250 AC ) ( I. Max 5 A )( V. 250 AC ) +- on on DC / 24 V Adjust Adjust 100052,5 5 TimerSens. L 1 1/4"
