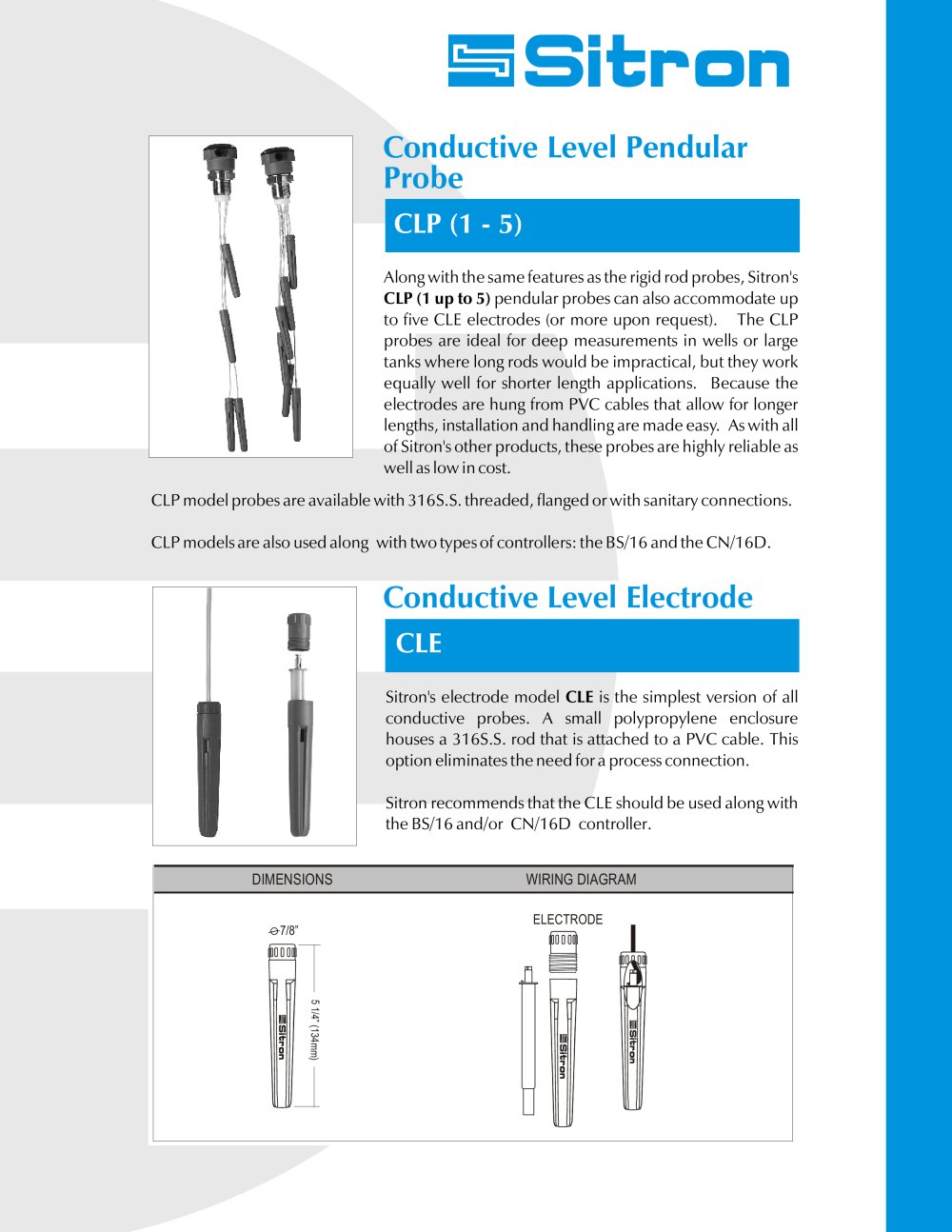

Conductive Level PendularProbe Conductive Level Industrial electrode

CLP (1 - 5) CLE

Along with the same features as the rigid rod probes, Sitron's CLP (1 up to 5) pendular probes can also accommodate up to five CLE electrodes (or more upon request). The CLP probes are ideal for deep measurements in wells or large industrial tanks where long rods would be impractical, but they work equally well for shorter length applications. Because the electrodes are hung from PVC cables that allow for longer lengths, installation and handling are made easy. As with all of Sitron's other products, these probes are highly reliable as well as low in cost. CLP model probes are available with 316S.S. threaded, flanged or with sanitary connections.CLP models are also used along with two types of controllers: the BS/16 and the CN/16D.Sitron's electrode model CLE is the simplest version of all conductive probes. A small polypropylene enclosure houses a 316S.S. rod that is attached to a PVC cable. This option eliminates the need for a process connection.Sitron recommends that the CLE should be used along with the BS/16 and/or CN/16D controller.
DIMENSIONSWIRING DIAGRAM ELECTRODE 7/8” 5 1/4” (134mm)
