S Sit ron

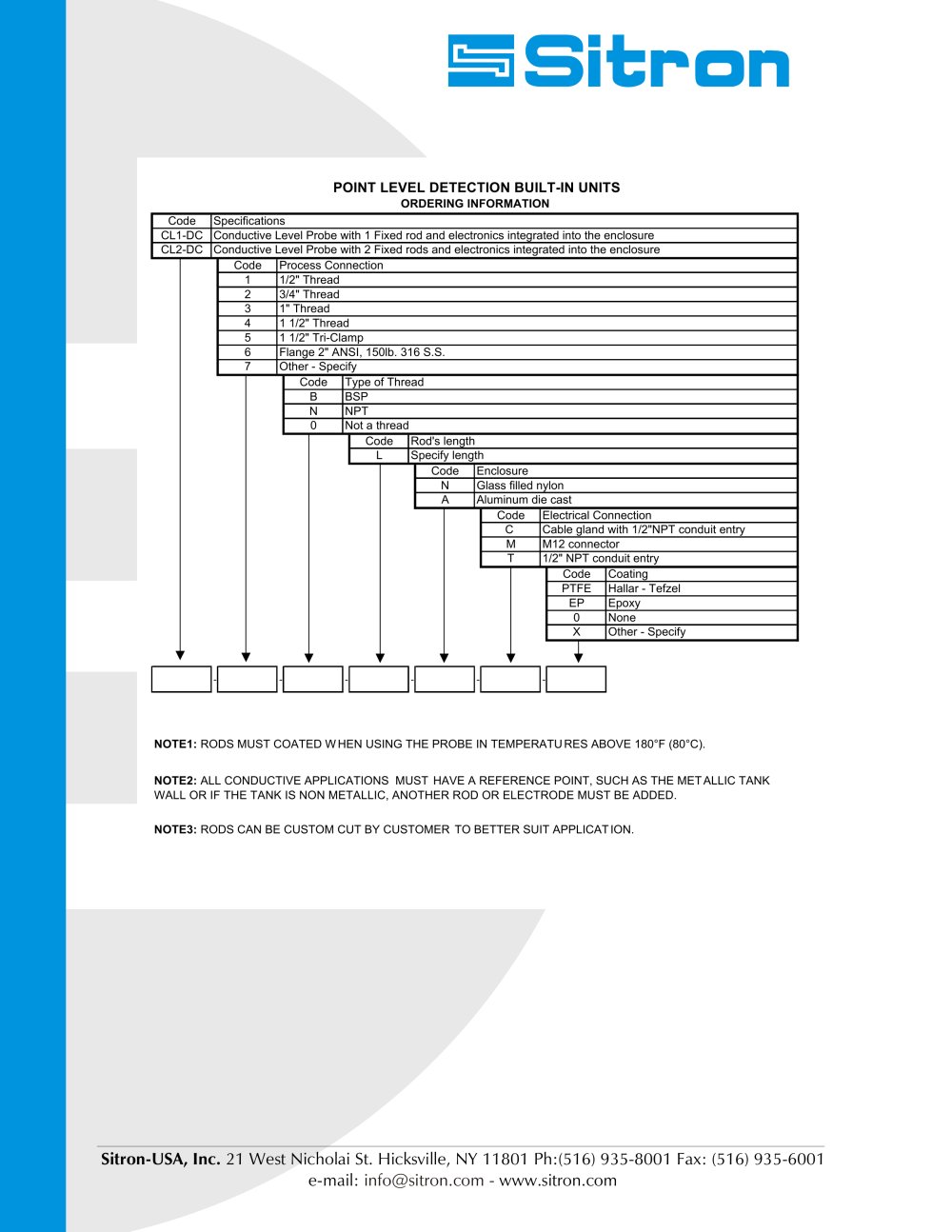

POINT LEVEL DETECTION BUILT-IN UNITS

ORDERING INFORMATION

Code Specifications

CL1-DC

Conductive Level Probe with 1 Fixed rod and electronics integrated into the enclosure

CL2-DC |Conductive Level Probe with 2 Fixed rods and electronics integrated into the enclosure


	Code	Process Connection
	1	1/2" Thread
	2	3/4" Thread
	3	1" Thread
	4	1 1/2" Thread
	5	1 1/2" Tri-Clamp
	6	Flange 2" ANSI, 150lb. 316 S.S.
	7	Other - Specify


	Code	Type of Thread
	B	BSP
	N	NPT
	0	Not a thread

Code Rod's length

Specify length


	Code	Enclosure
	N	Glass filled nylon
	A	Aluminum die cast


Code	Electrical Connection
C	Cable gland with 1/2"NPT conduit entry
M	M12 connector
T	1/2" NPT conduit entry
	Code	Coating
	PTFE	Hallar - Tefzel
	EP	Epoxy
	0	None
	X	Other - Specify
	▼ i-1

NOTE1: RODS MUST COATED WHEN USING THE PROBE IN TEMPERATURES ABOVE 180°F (80°C).

NOTE2: ALL CONDUCTIVE APPLICATIONS MUST HAVE A REFERENCE POINT, SUCH AS THE METALLIC TANK WALL OR IF THE TANK IS NON METALLIC, ANOTHER ROD OR ELECTRODE MUST BE ADDED.

NOTE3: RODS CAN BE CUSTOM CUT BY CUSTOMER TO BETTER SUIT APPLICATION.

Sitron-USA, Inc. 21 West Nicholai St. Hicksville, NY 11801 Ph:(516) 935-8001 Fax: (516) 935-6001

e-mail: info@sitron.com - www.sitron.com
