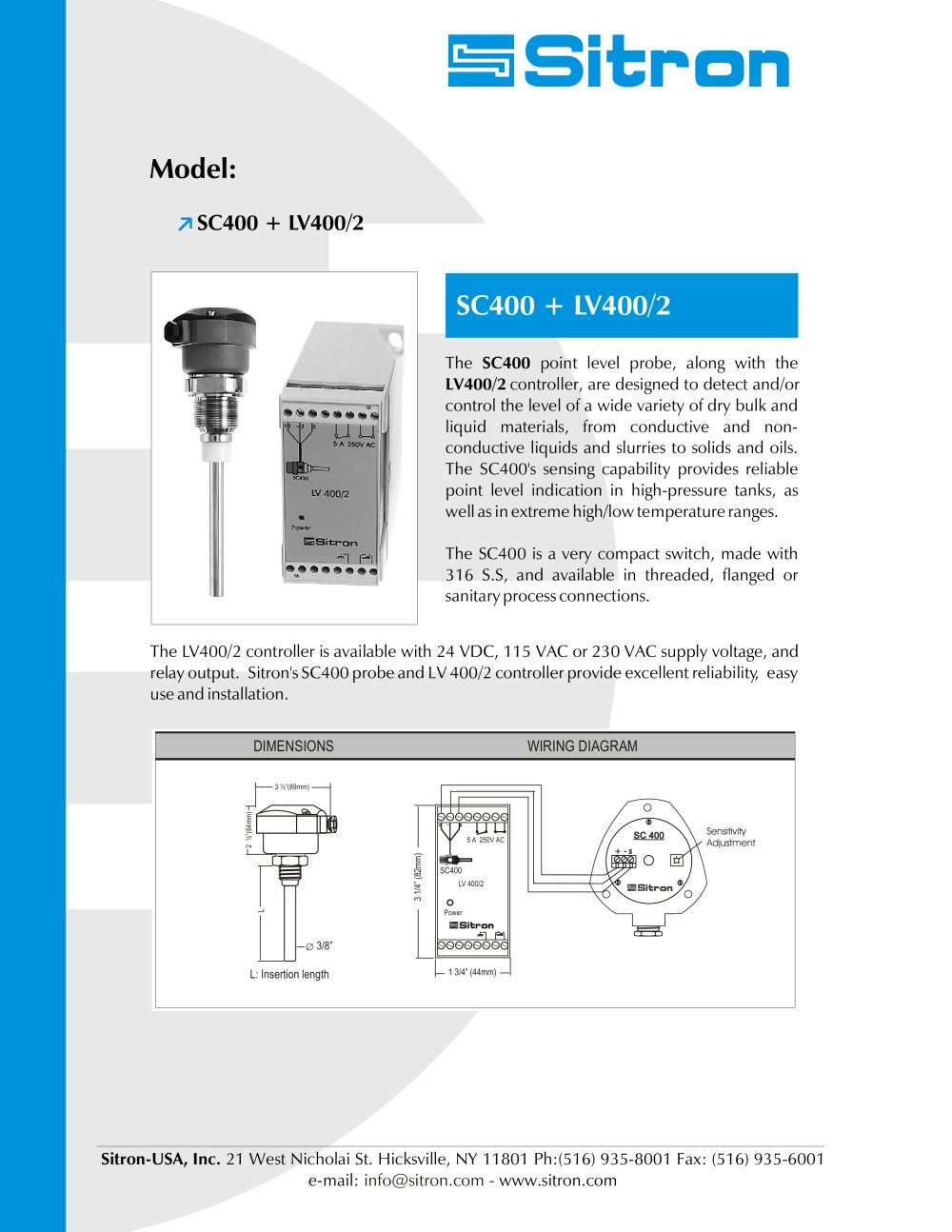

SC400 + LV400/2

SC400 + LV400/2Model:

The SC400 point level probe, along with the LV400/2 controller, are designed to detect and/or control the level of a wide variety of dry bulk and liquid materials, from conductive and non- conductive liquids and slurries to solids and oils. The SC400's sensing capability provides reliable point level indication in high-pressure tanks, as well as in extreme high/low temperature ranges.The SC400 is a very compact switch, made with 316 S.S, and available in threaded, flanged or sanitary process connections. The LV400/2 controller is available with 24 VDC, 115 VAC or 230 VAC supply voltage, and relay output. Sitron's SC400 probe and LV 400/2 controller provide excellent reliability, easy use and installation.
DIMENSIONSWIRING DIAGRAM 3 ‰ (89mm) +S - SC 400 SC 400 SensitivityAdjustment 2 ‰ (64mm) 5 A 250V ACPower + - s + - s SC400 LV 400/2 3 1/4” (82mm) L 3/8 L: Insertion length 1 3/4” (44mm) Sitron-USA, Inc. 21 West Nicholai St. Hicksville, NY 11801 Ph:(516) 935-8001 Fax: (516) 935-6001 e-mail: www.sitron.cominfo@sitron.com -
