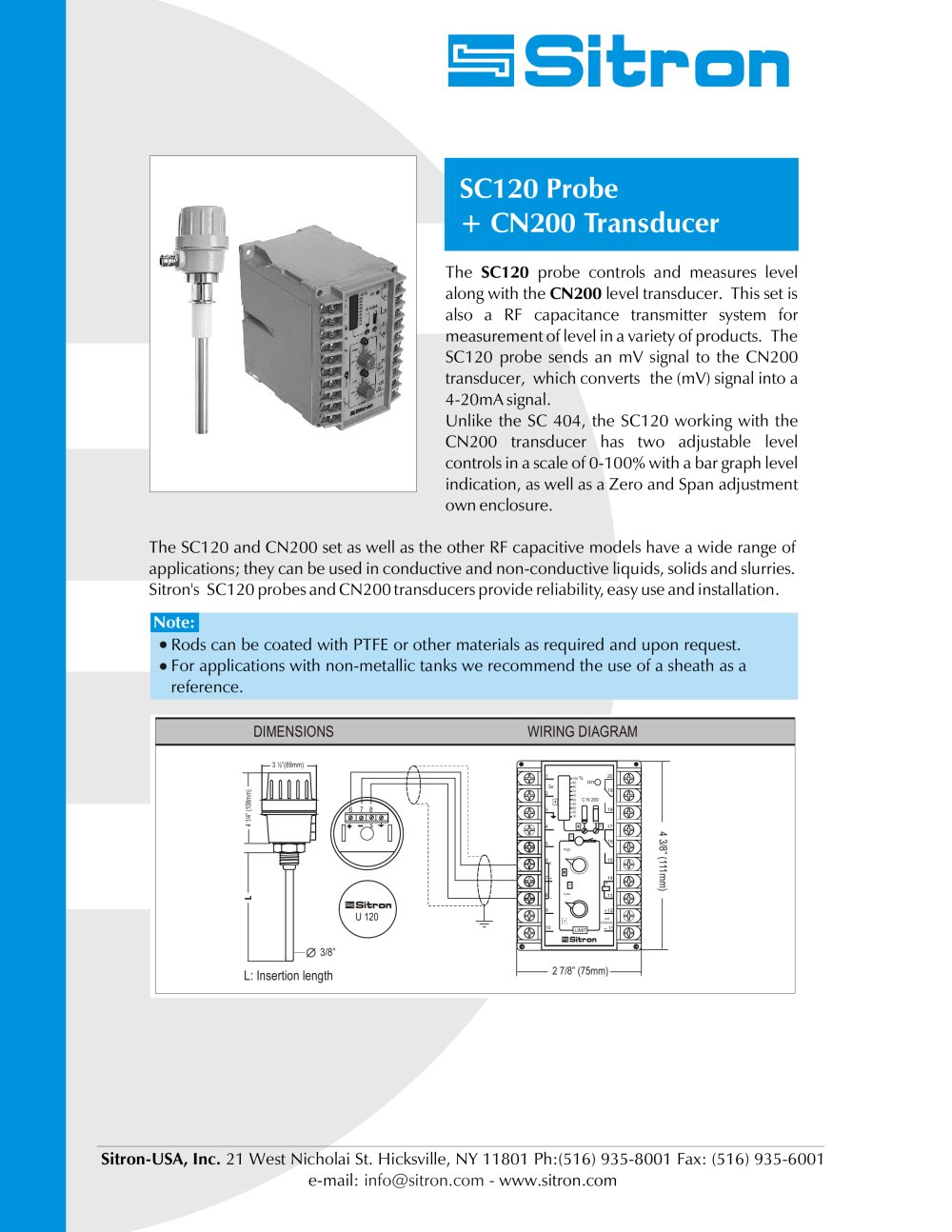

SC120 Probe + CN200 Transducer The SC120 probe controls and measures levelalong with the CN200 level transducer. This set is also a RF capacitance transmitter system for measurement of level in a variety of products. The SC120 probe sends an mV signal to the CN200 transducer, which converts the (mV) signal into a 4-20mA signal. Unlike the SC 404, the SC120 working with the CN200 transducer has two adjustable level controls in a scale of 0-100% with a bar graph level indication, as well as a Zero and Span adjustment own enclosure. The SC120 and CN200 set as well as the other RF capacitive models have a wide range of applications; they can be used in conductive and non-conductive liquids, solids and slurries. Sitron's SC120 probes and CN200 transducers provide reliability, easy use and installation. Note: Rods can be coated with PTFE or other materials as required and upon request.For applications with non-metallic industrial tanks we recommend the use of a sheath as a reference. DIMENSIONSWIRING DIAGRAM

3 ‰ (89mm)

123

100 908070605040302010

%

on

2

1

C N 200

678

4 1/4 (108mm)

+_ s

456871314151617192018 2

2

2

3 4 3/8” (111mm)

2

7 S

2

6

+_

100 1000208050%

2

5 test test
L

9101112 +_+

U 120

2

4 100 1000208050% out4/20mA. High Low

LIMIT

_

3/8 L: Insertion length 2 7/8” (75mm)
