SC404 SC120 + CN200

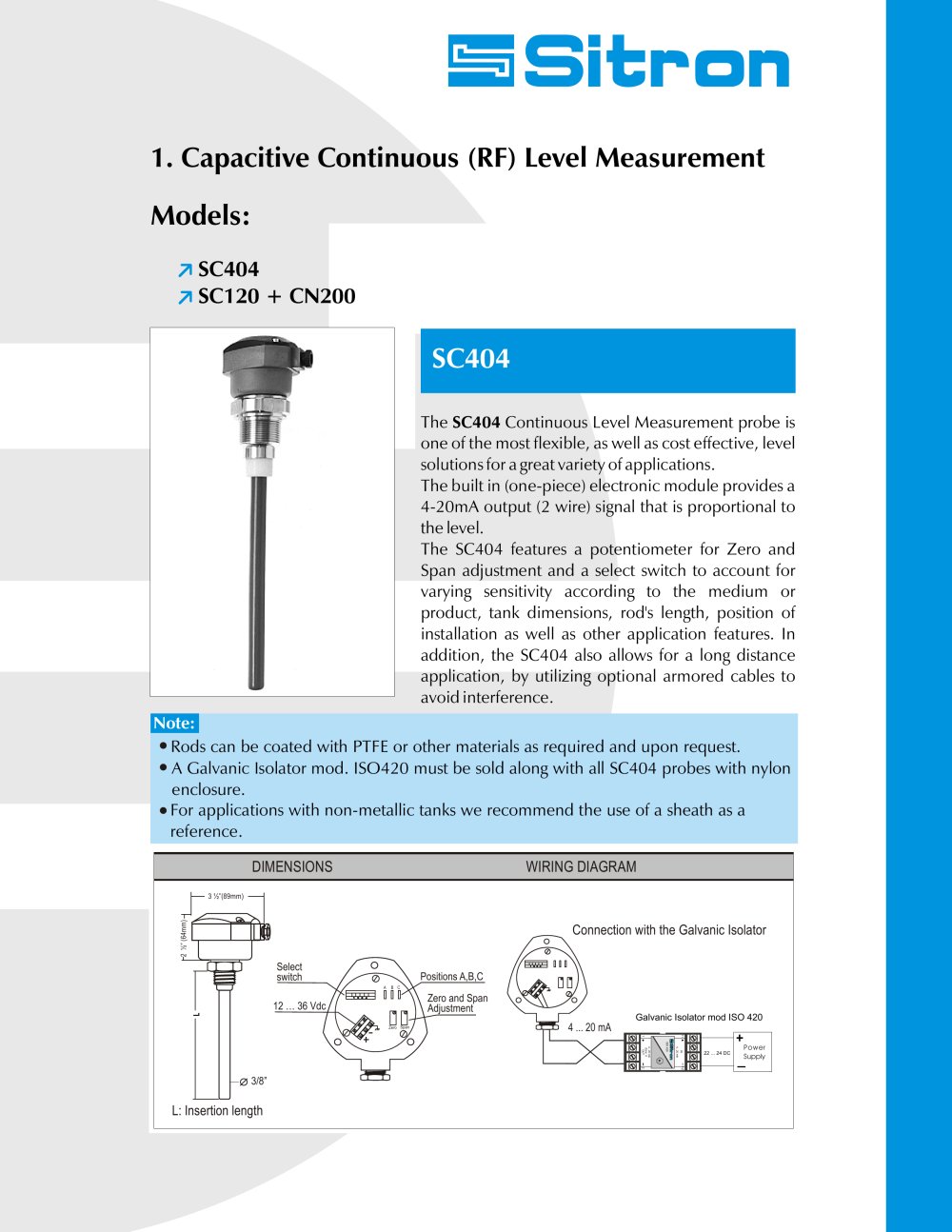

SC4041. Capacitive Continuous (RF) Level MeasurementModels:

The SC404 Continuous Level measurement probe is one of the most flexible, as well as cost effective, level solutions for a great variety of applications. The built in (one-piece) electronic module provides a 4-20mA output (2 wire) signal that is proportional to the level. The SC404 features a potentiometer for Zero and Span adjustment and a select switch to account for varying sensitivity according to the medium or product, tank dimensions, rod's length, position of installation as well as other application features. In addition, the SC404 also allows for a long distance application, by utilizing optional armored cables to avoid interference. Note: Rods can be coated with PTFE or other materials as required and upon request.A Galvanic isolator mod. ISO420 must be sold along with all SC404 probes with nylon enclosure.For applications with non-metallic tanks we recommend the use of a sheath as a reference.
DIMENSIONSWIRING DIAGRAM 3 ‰ (89mm) Connection with the Galvanic Isolator 2 ‰ (64mm) Selectswitch12 36 VdcPositions A,B,CZero and SpanAdjustment 2341 L1 ABC 2341 L L1 Galvanic Isolator mod ISO 420 SpanZero - 4 ... 20 mA 1112 12 + +_ +_ IN4...20 mA 4...20 mAISO 420Zone 0OUT 22 ... 24 Industrial dc power supply m x _+ 3/8 L: Insertion length
