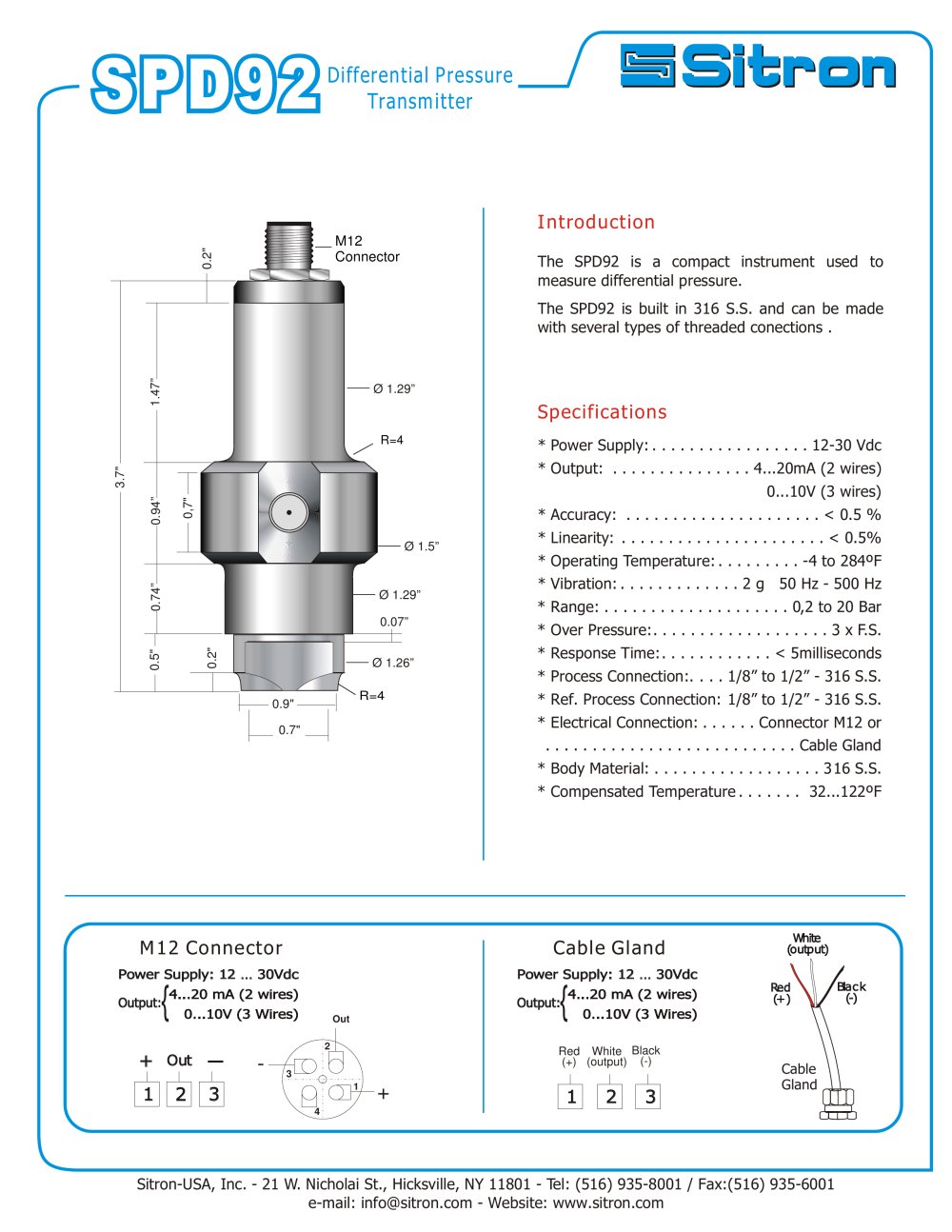

SPD92 SPD92
DifferentialPressureTransmitter
Introduction
Specifications
M12Connector
0.2" The SPD92 is a compact instrument used to measure pressure.The SPD92 is built in 316 S.S. and can be madewith several types of threaded conections .differential
* Power Supply:.................12-30 Vdc* Output:...............4...20mA (2 wires)0...10V (3 wires)* Accuracy:.....................< 0.5 %* Linearity:......................< 0.5%* Operating Temperature:.........-4 to 284บF* Vibration:.............2 g 50 Hz - 500 Hz* Range:....................0,2 to 20 Bar* Over Pressure:...................3 x F.S.* Response Time:............< 5milliseconds* Process Connection:....1/8 to 1/2 - 316 S.S.* Electrical connection:......Connector M12 or...........................Cable gland* Body Material:..................316 S.S.* Compensated Temperature....... 32...122บF
........................
* Ref. Process Connection:1/8 to 1/2 - 316 S.S.
ุ 1.29 1.47 R=4
ุ 1.29 3.7" 0,7" 0.94 ุ 15. 0.74 0.07 0.2" 0.5" ุ 1.26 0.9" R=4 0.7" M12 Connector Cable Gland
White(output) White (output) Po Power Supply: 12
30Vdc4...20mA(2 wires)0...10V (3Wires) w er S up pl y: 1 2
3 0V dc Po Power Supply: 12
30Vdc4...20mA(2 wires)0...10V (3Wires) w er S up pl y: 1 2
3 0V dc Output: Output:
{
4. ..2 0mA (2 w ire s) Output: Output:
{
4. ..2 0mA (2 w ire s)
Red(+) Red Black(-) Black (+) (-) 0. ..1 0V ( 3W ire s)
Out 0. ..1 0V ( 3W ire s)
+ +
Out Out
-
Red(+)Black(-)White(output) CableGland
123
1234 +-
123
Sitron-USA, Inc. - 21 W. Nicholai St., Hicksville, NY 11801 - Tel: (516) 935-8001 / Fax:(516) 935-6001e-mail: info@sitron.com - Website: www.sitron.com
