| | | SSitron | | |
| | | |

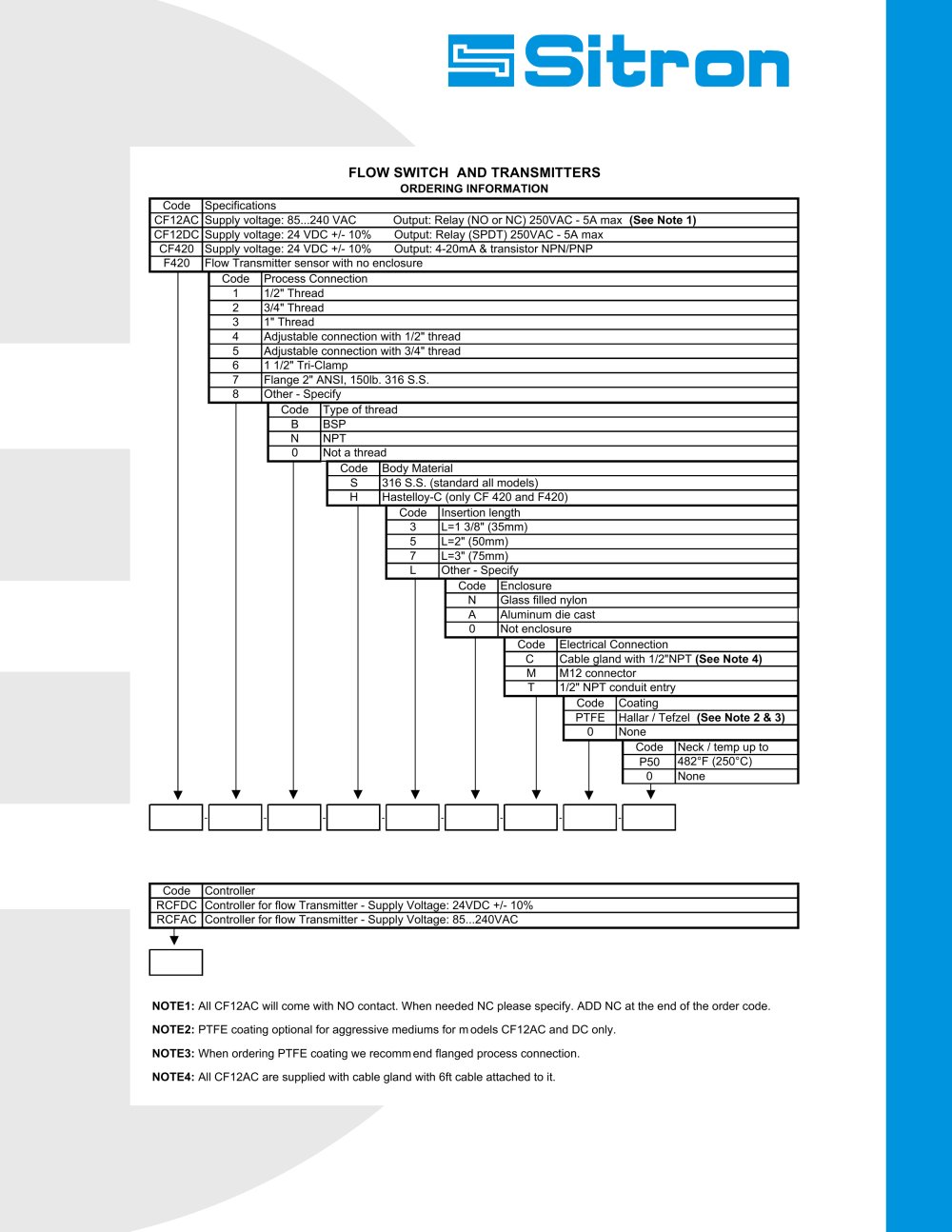

| | | FLOW SWITCH AND TRANSMITTERS ORDERING INFORMATION | | |
| | | |
| | | | | | | | | | | | Code | Specifications | | | | | CF12AC | Supply voltage | 85...240 VAC Output | Relay (NO or NC) 250VAC - 5A max (See Note 1) | | | | CF12DC | Supply voltage | 24 VDC +/- 10% Output | Relay (SPDT) 250VAC - 5A max | | | | CF420 | Supply voltage | 24 VDC +/- 10% Output | 4-20mA & transistor NPN/PNP | | | | F420 | Flow Transmitter sensor with no enclosure | | | | | | | | | | | | |
| | | | | | | | | | Code | Process Connection | | | | 1 | 1/2" Thread | | | | 2 | 3/4" Thread | | | | 3 | 1" Thread | | | | 4 | Adjustable connection with 1/2" thread | | | | 5 | Adjustable connection with 3/4" thread | | | | 6 | 1 1/2" Tri-Clamp | | | | 7 | Flange 2" ANSI, 150lb. 316 S.S. | | | | CO | Other - Specify | | | | | | | | |
| | | | | | | | | | Code | Type of thread | | | | B | BSP | | | | N | NPT | | | | 0 | Not a thread | | | | | | | | |
| | | |
| | | Code Body Material | | |
| | | |
| | | S | | 316 S.S. (standard all models) | | |
| | | |
| | | |
| | | Hastelloy-C (only CF 420 and F420) | | |
| | | H | | |
| | | |
| | | |
| | | | | | | | | | | | Code | nsertion length | | | | 3 | L=1 3/8" (35mm) | | | | 5 | L=2" (50mm) | | | | 7 | L=3" (75mm) | | | | L | Other - Specify | | | | | | Code | Enclosure | | | | N | Glass filled nylon | | | | A | Aluminum die cast | | | | 0 | Not enclosure | | | | | | | | | | | |
| | | | | | | | | | Code | Electrical Connection | | | | C | Cable gland with 1/2"NPT (See Note 4) | | | | M | M12 connector | | | | T | 1/2" NPT conduit entry | | | | | | | | | |
| | | | | | | | | | Code | Coating | | | | PTFE | Hallar / Tefzel (See Note 2 & 3) | | | | 0 | None | | | | | | | | |
| | | | | | | | | | Code | Neck / temp up to | | | | P50 | 482°F (250°C) | | | | 0 | None | | | | i | | | | | | | | |
| | | |
| | | | | | | | | | Code | Controller | | | | RCFDC | Controller for flow Transmitter - Supply Voltage: 24VDC +/- 10% | | | | RCFAC | Controller for flow Transmitter - Supply Voltage: 85...240VAC | | | | | | | | | |
| | | |
| | | NOTE1: All CF12AC will come with NO contact. When needed NC please specify. ADD NC at the end of the order code. NOTE2: PTFE coating optional for aggressive mediums for models CF12AC and DC only. NOTE3: When ordering PTFE coating we recomm end flanged process connection. NOTE4: All CF12AC are supplied with cable gland with 6ft cable attached to it. | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | |
