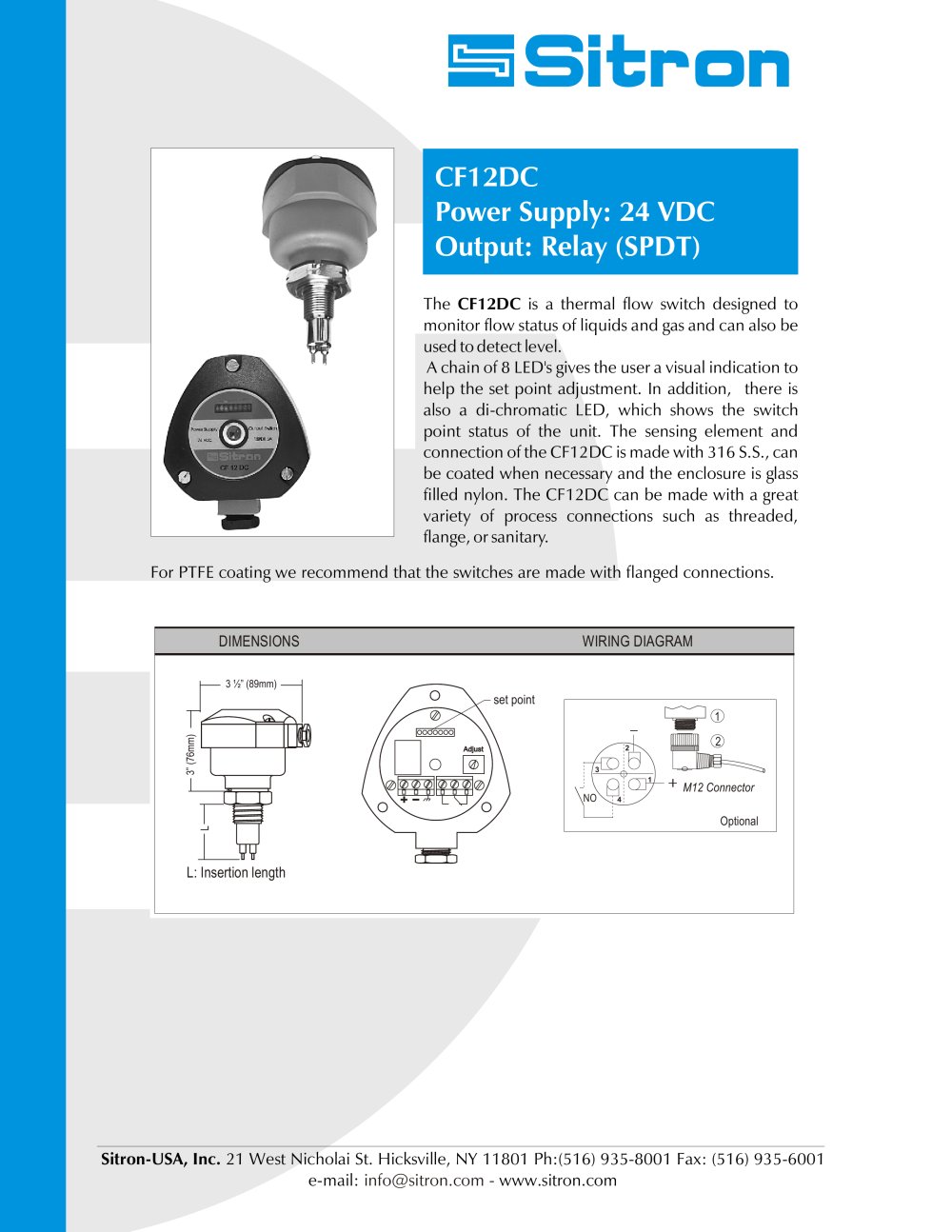

CF12DC Power Supply: 24 VDC Output: Relay (SPDT)

The CF12DC is a thermal flow switch designed to monitor flow status of liquids and gas and can also be used to detect level. A chain of 8 LED's gives the user a visual indication to help the set point adjustment. In addition, there is also a di-chromatic LED, which shows the switch point status of the unit. The sensing element and connection of the CF12DC is made with 316 S.S., can be coated when necessary and the enclosure is glass filled nylon. The CF12DC can be made with a great variety of process connections such as threaded, flange, or sanitary.For PTFE coating we recommend that the switches are made with flanged connections.
DIMENSIONSWIRING DIAGRAM 3 ½” (89mm) set point 1 Adjust Ad ju st 2 3” (76mm) 1234 M12 Connector +

_

NO L Optional L: Insertion length Sitron-USA, Inc. 21 West Nicholai St. Hicksville, NY 11801 Ph:(516) 935-8001 Fax: (516) 935-6001 e-mail: www.sitron.cominfo@sitron.com -
