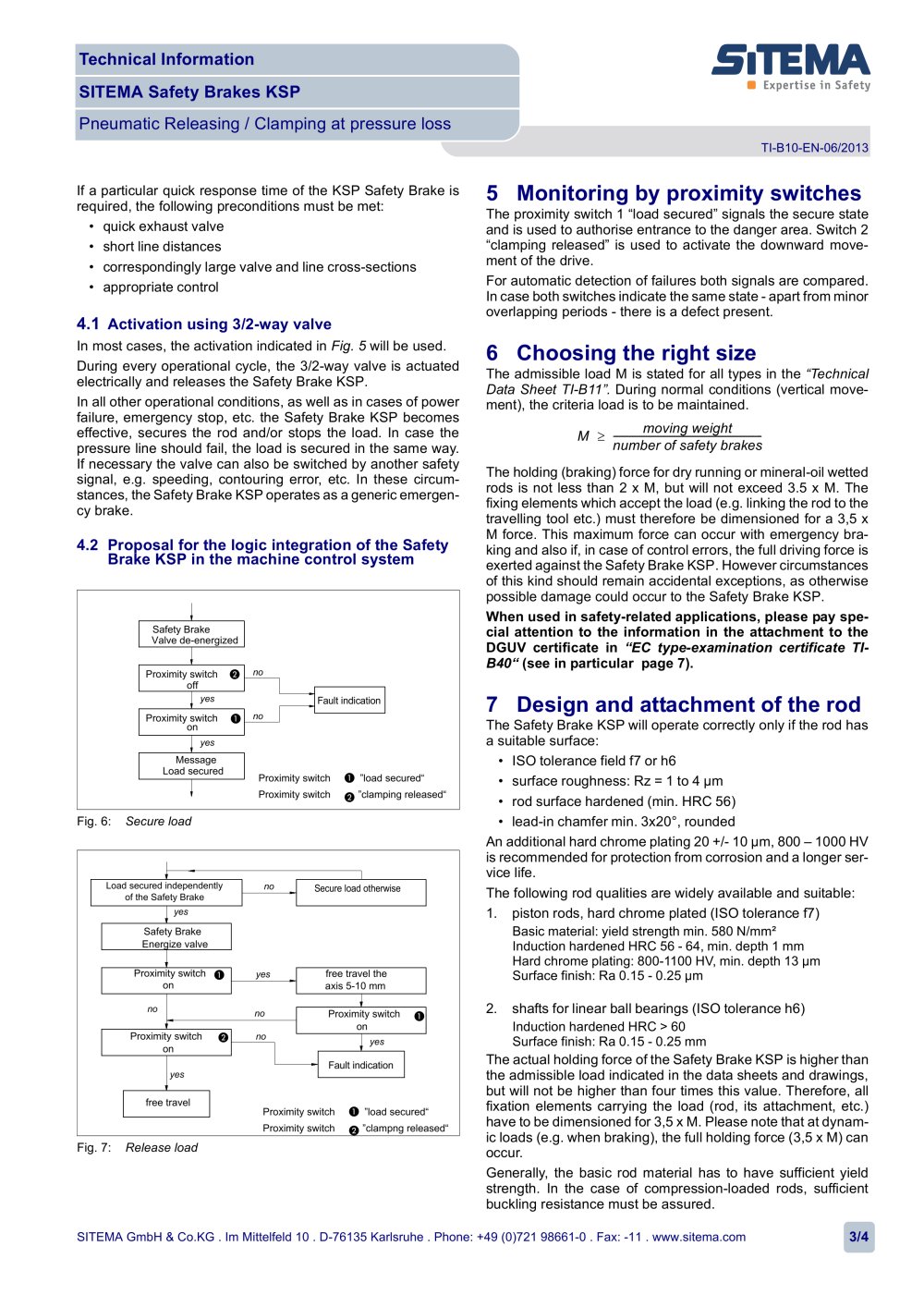

Pneumatic actuation SITEMA - Safety Brakes Technical Information TI-B10-EN-04/2009 SITEMA GmbH & Co.KG . Im Mittelfeld 10 . D-76135 Karlsruhe . Phone: +49 (0)721 98661-0 . Fax: -11 . www.sitema.com 3/3 In all other operational conditions, as well as in cases of power failure, emergency stop, etc. the Safety Brake becomes effective, secures the shaft and/or stops the load. In case the pressure line should fail, the load is secured in the same way. If necessary the valve can also be switched by another safety signal, e.g. speeding, contouring error, etc. In these circumstances, the KSP Safety Brake operates as a generic emergency brake. Monitoring by proximity switches The proximity switch 1 'Load secured' signals the secure state and is used to authorise entrance to the danger area. Switch 2 'released' is used to activate the downward movement of the drive. For automatic detection of failures both signals are compared. In case both switches indicate the same state - apart from minor overlapping periods - there is a defect present. 4 Choosing the right size The admissible load M is stated for all types in the „Technical Data Sheet TI-B11“ During normal conditions (vertical movement), the criteria load is to be maintained. The holding (braking) force for dry running or mineral-oil wetted shafts is not less than 2 x M, but will not exceed 3,5 x M. The fixing elements which accept the load (e.g. linking the rod to the travelling tool etc.) must therefore be dimensioned for a 3.5 x M force. This maximum force can occur with emergency braking and also if, in case of control errors , the fuill driving force is exerted against the KSP Safety Brake. However circumstances of this kind should remain accidental exceptions, as otherwise possible damage could occur to the KSP Safety Brake. 5 Rod requirements The KSP Safety Brake is designed for operation on smooth round rods. Fig. 6: Rod end with lead-in chamfer Rod design requirements: • The rod end is fitted with a lead-in chamfer (min. 3×20°, rounded) as a mounting aid. • The rod surface is hardened (at least HRC 52), burnished and within ISO tolerance f7 or h6 and a surface finish Rz= 1 to 4 ėm or Ra 0.15 - 0.25 ėm • The material has a yield strength sufficient to withstand the maximum posible load (up to 3.5 x M, see § "Dynamic braking of a falling mass"). In the case of compressionloaded rods buckling resistance must be assured. Most recommended are: Piston rods, hard chrome-plated (ISO-tolerance f7 or h6) basic material: yield strength min 580 N/mm˛ induction-hardened HRC 52 - 64 / min. 1 mm deep hard chrome plating: 800-1100 HV min 13 ėm thickness surface finish: Ra 0.15 - 0.25 ėm 6 Operating conditions The KSP Safety Brake is designed to operate in usual clean and dry shop atmosphere. In case of other environments at least the port T for breathing purposes is to be connected to a clen and dry volume (tank). Should heavy soiling conditions (grinding dust, chips, other liquids, etc.) exist, please contact SITEMA. Grease on the rod may reduce the holding force. The permissible ambient temperature is 0 - 60°C. 7 Required risk assessment If SITEMA - Safety Brakes are used in safety-relevant applications the following has to be carefully attended: It must be ensured that the size, the dimensions and arrangement of SITEMA - Safety meet the requirements of the risk evaluation EN ISO 14121-1 for the complete machine and also comply with any further standards and regulations applying to the intended use. This is generally the duty of the system manufacturer/user. 8 Overall documentation and CE mark The KSP Safety Brake is designed as a component for integration into a machine or system. The seller of the machine or system must provide information on the KSP Safety Brake with the overall documentation and - if applicable - ensure that the machine or system carries the CE mark. 9 Regular functional checks The KSP Safety Brake must be functionally checked at regular intervals. Regular checking is the only way to ensure that the unit will operate safely in the long run. Please see „Operating Manual BA-B10“ for further details. 10 Maintenance The maintenance of the SITEMA Safety Brakes is limited to the prescribed regular functional check. Should the KSP Safety Brake cease to comply with the required characteristics, the aforementioned safety of working with the machine or system is no longer given. In this case the KSP Safety Brake must be removed immediately and professionally repaired by SITEMA. Any repair or refurbishing must be carried out by SITEMA. SITEMA cannot take any responsibility for repairs by another party. M Moving weight Number of safety brakes -----------------------------------------------------------------
