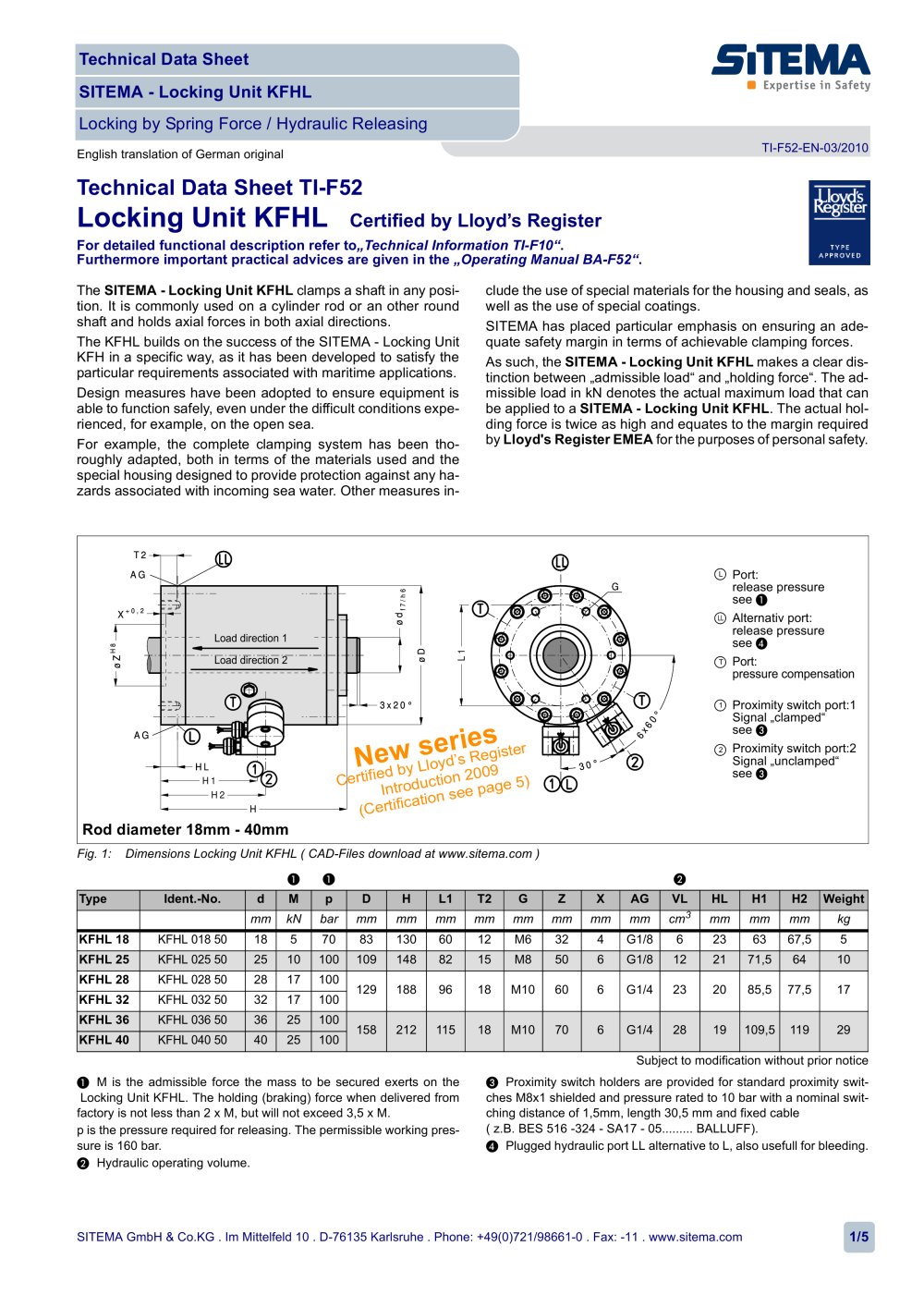

Locking by Spring Force / Hydraulic Releasing SITEMA - Locking Unit KFHL Technical Data Sheet TI-F52-EN-03/2010 SITEMA GmbH & Co.KG . Im Mittelfeld 10 . D-76135 Karlsruhe . Phone: +49(0)721/98661-0 . Fax: -11 . www.sitema.com 1/5 Fig. 1: Dimensions Locking Unit KFHL ( CAD-Files download at www.sitema.com ) Subject to modification without prior notice 1 M is the admissible force the mass to be secured exerts on the Locking Unit KFHL. The holding (braking) force when delivered from factory is not less than 2 x M, but will not exceed 3,5 x M. p is the pressure required for releasing. The permissible working pressure is 160 bar. 2 Hydraulic operating volume. 3 Proximity switch holders are provided for standard proximity switches M8x1 shielded and pressure rated to 10 bar with a nominal switching distance of 1,5mm, length 30,5 mm and fixed cable ( z.B. BES 516 -324 - SA17 - 05......... BALLUFF). 4 Plugged hydraulic port LL alternative to L, also usefull for bleeding. 1 1 2 Type Ident.-No. d M p D H L1 T2 G Z X AG VL HL H1 H2 Weight mm kN bar mm mm mm mm mm mm mm mm cm3 mm mm mm kg KFHL 18 KFHL 018 50 18 5 70 83 130 60 12 M6 32 4 G1/8 6 23 63 67,5 5 KFHL 25 KFHL 025 50 25 10 100 109 148 82 15 M8 50 6 G1/8 12 21 71,5 64 10 KFHL 28 KFHL 028 50 28 17 100 129 188 96 18 M10 60 6 G1/4 23 20 85,5 77,5 17 KFHL 32 KFHL 032 50 32 17 100 KFHL 36 KFHL 036 50 36 25 100 158 212 115 18 M10 70 6 G1/4 28 19 109,5 119 29 KFHL 40 KFHL 040 50 40 25 100 øZH 8 H ød f 7 / h 6 øD 3 x 2 0 ° H2 H1 HL AG X + 0 , 2 AG T2 3 0 ° 6 x 6 0 ° G L 1 Port: release pressure see 1 Alternativ port: release pressure see 4 Port: pressure compensation Proximity switch port:1 Signal „clamped“ see 3 Proximity switch port:2 Signal „unclamped“ see 3 L T 1 2 LL Load direction 1 Load direction 2 Rod diameter 18mm - 40mm New series Certified by Lloyd’s Register Introduction 2009 (Certification see page 5) Technical Data Sheet TI-F52 Locking Unit KFHL Certified by Lloyd’s Register For detailed functional description refer to„Technical Information TI-F10“. Furthermore important practical advices are given in the „Operating Manual BA-F52“. The SITEMA - Locking Unit KFHL clamps a shaft in any position. It is commonly used on a cylinder rod or an other round shaft and holds axial forces in both axial directions. The KFHL builds on the success of the SITEMA - Locking Unit KFH in a specific way, as it has been developed to satisfy the particular requirements associated with maritime applications. Design measures have been adopted to ensure equipment is able to function safely, even under the difficult conditions experienced, for example, on the open sea. For example, the complete clamping system has been thoroughly adapted, both in terms of the materials used and the special housing designed to provide protection against any hazards associated with incoming sea water. Other measures include the use of special materials for the housing and seals, as well as the use of special coatings. SITEMA has placed particular emphasis on ensuring an adequate safety margin in terms of achievable clamping forces. As such, the SITEMA - Locking Unit KFHL makes a clear distinction between „admissible load“ and „holding force“. The admissible load in kN denotes the actual maximum load that can be applied to a SITEMA - Locking Unit KFHL. The actual holding force is twice as high and equates to the margin required by Lloyd's Register EMEA for the purposes of personal safety. English translation of German original
