CONVERTER SUPPORT US 400
2Pages

{{requestButtons}}

Catalog excerpts

CONVERTER SUPPORT US 400 - 1

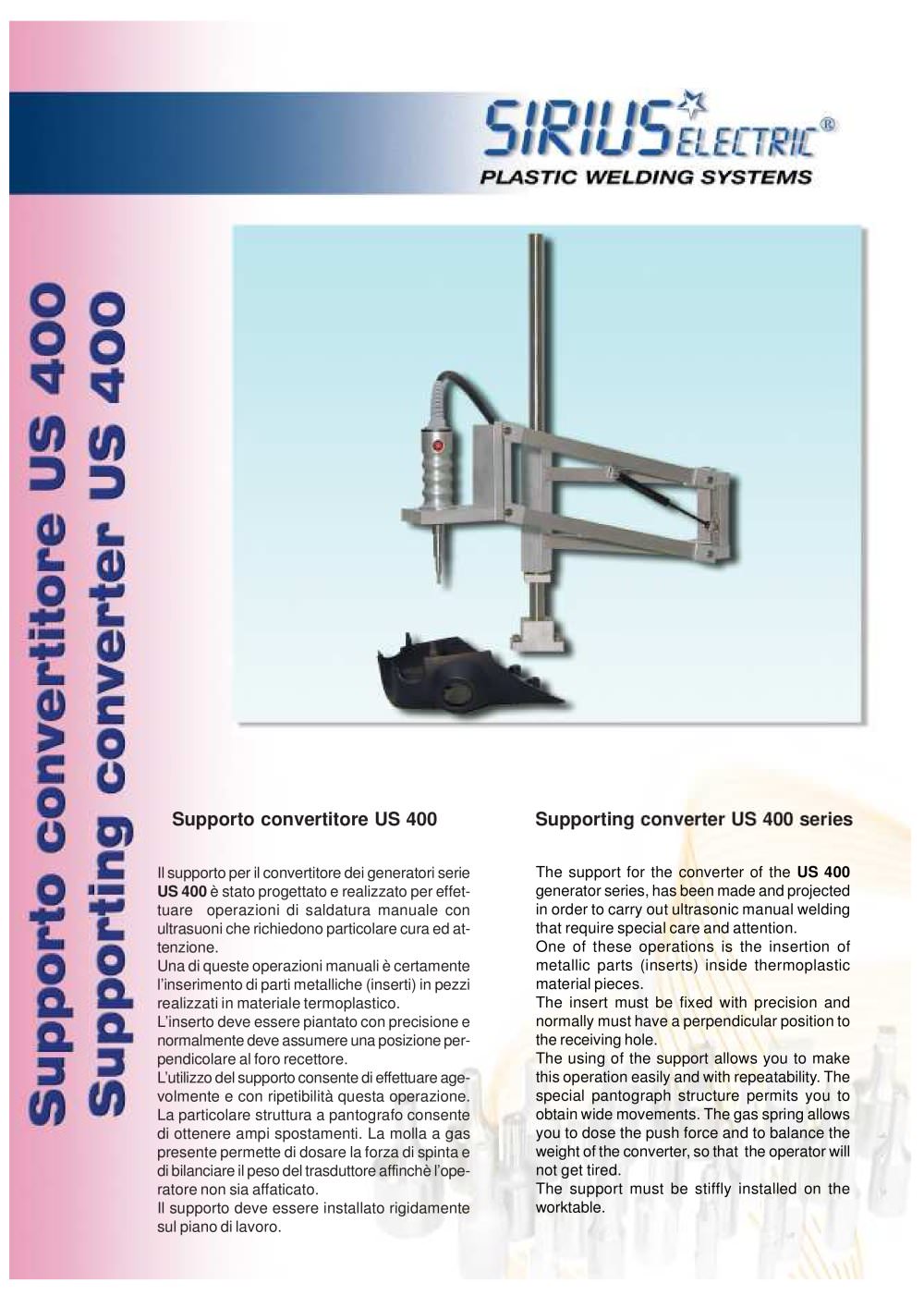

PLASTIC WELDING SYSTEMS Il supporto per ¡I convertitore dei generatori serie US 400 è stato progettato e realizzato per effet- tuare operazioni di saldatura manuale con ultrasuoni che richiedono particolare cura ed at- Una di queste operazioni manuali è certamente l'inserimento di parti metalliche (inserti) in pezzi realizzati in materiale termoplastico. L'inserto deve essere piantato con precisione e normalmente deve assumere una posizione per- pendicolare al foro recettore L'utilizzo del supporto consente di effettuare age- volmente e con ripetibilità questa operazione. La particolare struttura a pantografo consente di ottenere ampi spostamenti. La molla a gas presente permette di dosare la forza di spinta e di bilanciare il peso del trasduttore affinchè l'ope- Il supporto deve essere installato rigidamente Supporting converter US 400 series generator series, has been made and projected in order to carry out ultrasonic manual welding that require special care and attention. One of these operations is the insertion of metallic parts (inserts) inside thermoplastic material pieces. The insert must be fixed with precision and normally must have a perpendicular position to The using of the support allows you to make this operation easily and with repeatability. The special pantograph structure permits you to obtain wide movements. The gas spring allows you to dose the push torce and to balance the weight of the converter, so that the operator will The support must be stiffly installed on the

Open the catalog to page 1
CONVERTER SUPPORT US 400 - 2

Il supporto a pantografo per il convertitore serie US 400 permette di ottenere spostamenti e movimenti per applicazioni con ultrasuoni dove è richiesta attenzione e qualità. Le dimensioni e gli spostamenti possibili sono indicati nelle due figure. The Pantograph support for the converter US 400 series, allows you to obtain displacement and movement for ultrasonic applications where quality and attention are required. The dimensions and possible moving are indicated on the drawing.
