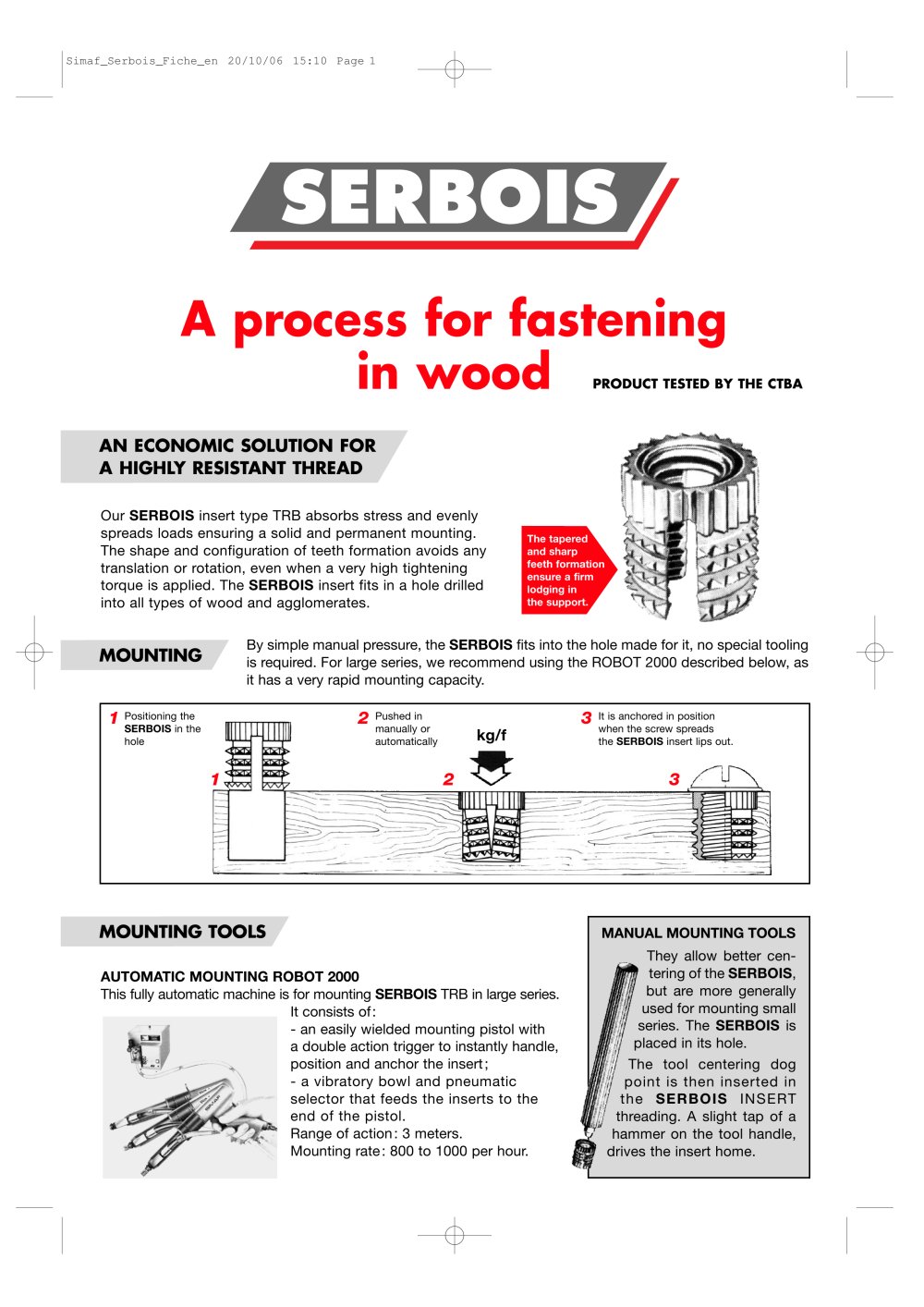

Notice for Serbois Simaf 2006 - 28445 A process for fasteningin wood

PRODUCT TESTED BY THE CTBA

AN ECONOMIC SOLUTION FORA HIGHLY RESISTANT THREAD

SERBOIS insert fits in a hole drilledinto all types of wood and agglomerates. Our SERBOIS insert type TRB absorbs stress and evenlyspreads loads ensuring a solid and permanent mounting. The shape and configuration of teeth formation avoids any translation or rotation, even when a very high tightening torque is applied. The
The taperedand sharp feeth formation ensure a firm lodging in the support.

MOUNTING

By simple manual pressure, the SERBOIS fits into the hole made for it, no special toolingis required. For large series, we recommend using the ROBOT 2000 described below, as it has a very rapid mounting capacity.
SERBOIS insert lips out.

112323

Positioning the SERBOIS in theholePushed inmanually or automaticallyIt is anchored in positionwhen the screw spreads the

kg/f

MOUNTING TOOLS

MANUAL MOUNTING TOOLS They allow better cen-tering of the AUTOMATIC MOUNTING ROBOT 2000 This fully automatic machine is for mounting SERBOIS TRB in large series.It consists of: - an easily wielded mounting pistol with a double action trigger to instantly handle, position and anchor the insert; - a vibratory bowl and pneumatic selector that feeds the inserts to the end of the pistol. Range of action: 3 meters. Mounting rate: 800 to 1000 per hour. SERBOIS ,but are more generallyused for mounting smallseries. The SERBOIS isplaced in its hole.The tool centering dogpoint is then inserted inthe SERBOIS INSERTthreading. A slight tap of ahammer on the tool handle,drives the insert home.
