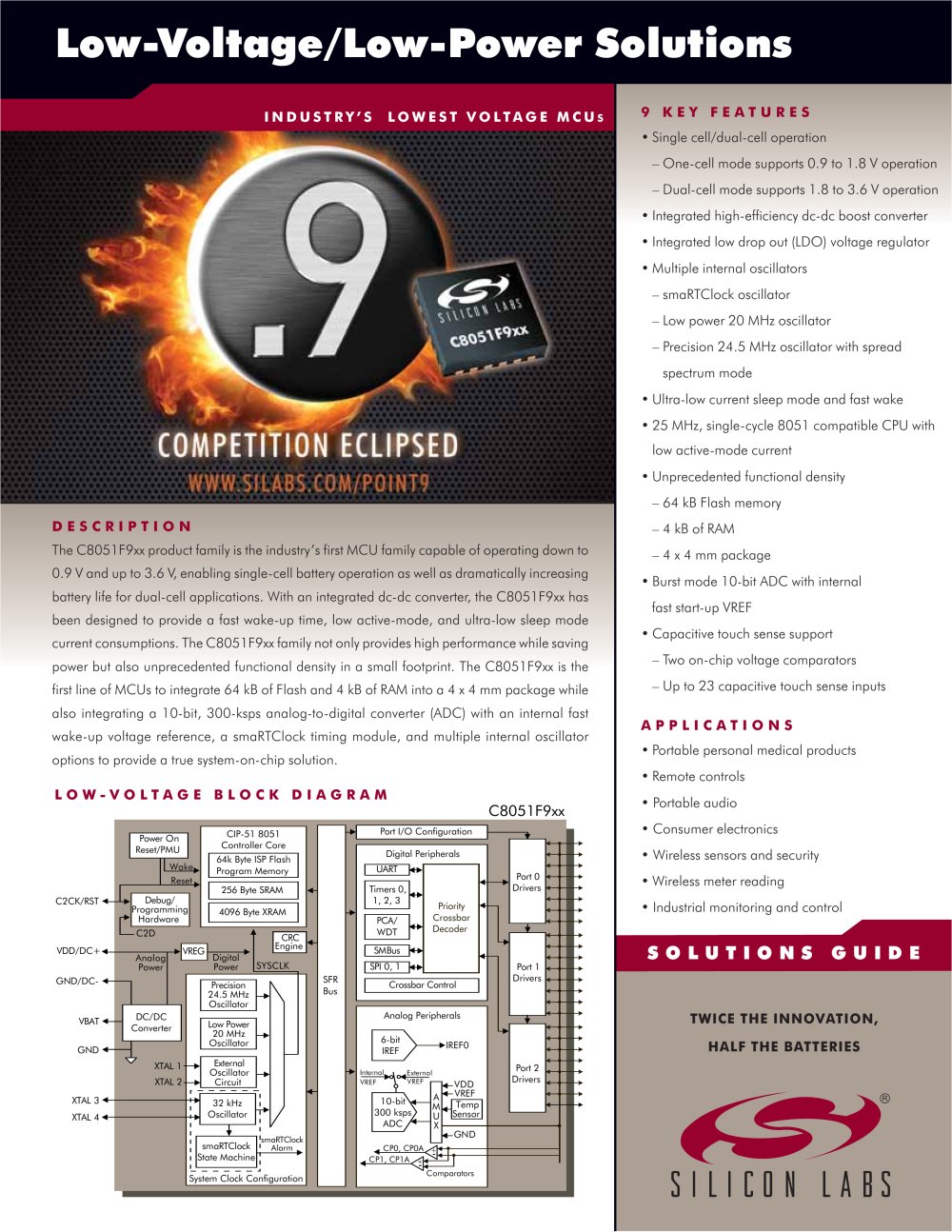

Low-Voltage/Low-Power Solutions
9 KEY FEATURES
• Single cell/dual-cell operation
- One-cell mode supports 0.9 to 1.8 V operation
- Dual-cell mode supports 1.8 to 3.6 V operation
• Integrated high-efficiency dc-dc boost converter
• Integrated low drop out (LDO) voltage regulator
• Multiple internal oscillators
- smaRTClock oscillator
- Low power 20 MHz oscillator
- Precision 24.5 MHz oscillator with spread spectrum mode
• Ultra-low current sleep mode and fast wake
• 25 MHz, single-cycle 8051 compatible CPU with low active-mode current
• Unprecedented functional density
- 64 kB Flash memory
- 4 kB of RAM
- 4 x 4 mm package
• Burst mode 10-bit ADC with internal fast start-up VREF
• Capacitive touch sense support
- Two on-chip voltage comparators
- Up to 23 capacitive touch sense inputs
APPLICATIONS
• Portable personal medical products
• Remote controls
• Portable audio
• Consumer electronics
• Wireless sensors and security
• Wireless meter reading
• Industrial monitoring and control
COMPETITION ECLIPSE
WWW.SILABS.COM/P0INT9
■V • * * « * * <
DESCRIPTION
The C8051F9xx product family is the industry's first MCU family capable of operating down to 0.9 V and up to 3.6 V, enabling single-cell battery operation as well as dramatically increasing battery life for dual-cell applications. With an integrated dc-dc converter, the C8051F9xx has been designed to provide a fast wake-up time, low active-mode, and ultra-low sleep mode current consumptions. The C8051F9xx family not only provides high performance while saving power but also unprecedented functional density in a small footprint. The C8051F9xx is the first line of MCUs to integrate 64 kB of Flash and 4 kB of RAM into a 4 x 4 mm package while also integrating a 10-bit, 300-ksps analog-to-digital converter (ADC) with an internal fast wake-up voltage reference, a smaRTClock timing module, and multiple internal oscillator options to provide a true system-on-chip solution.
LOW-VOLTAGE BLOCK DIAGRAM
C8051F9xx
Port I/O Configuration
CIP-51 8051 Controller Core
Power On Reset/PMU
Digital Peripherals
64k Byte ISP Flash Program Memory
Wake.
UART
Port 0
Drivers
Reset
Timers 0, 1, 2, 3
256 Byte SRAM
Debug/ Programming Hardware
C2CK/RST
Priority Crossbar
Decoder
4096 Byte XRAM
PCA/
WDT
\1
C2D
Port 1
Drivers
■+
~*
"*
"*
"*
_^
-*■
CRC Engine
OLUTIONS GUID
SMBus
VDD/DC+-4— GND/DC- ■*-
♦ VREG
Digital Power
Analog
Power
SYSCLK
SPI 0, 1
Crossbar Control
Precision 24.5 MHz Oscillator
Analog Peripherals
DC/DC Converter
VBAT"
Low Power 20 MHz Oscillator
6-bit
IREF
3T
GND-
External
Oscillator
Circuit
XTAL 1
XTAL 2
Port 2 Drivers
Internal
dto< External T~ VREF I—
VDD VREF I Temp IsensQr
XTAL 3
10-bit
32 kHz
Oscillator
V
py u *
300
XTAL 4-«
ADC
GND
smaRTClock Alarm „
smaRTClock State Machine
Comparators
System Clock Configuration
