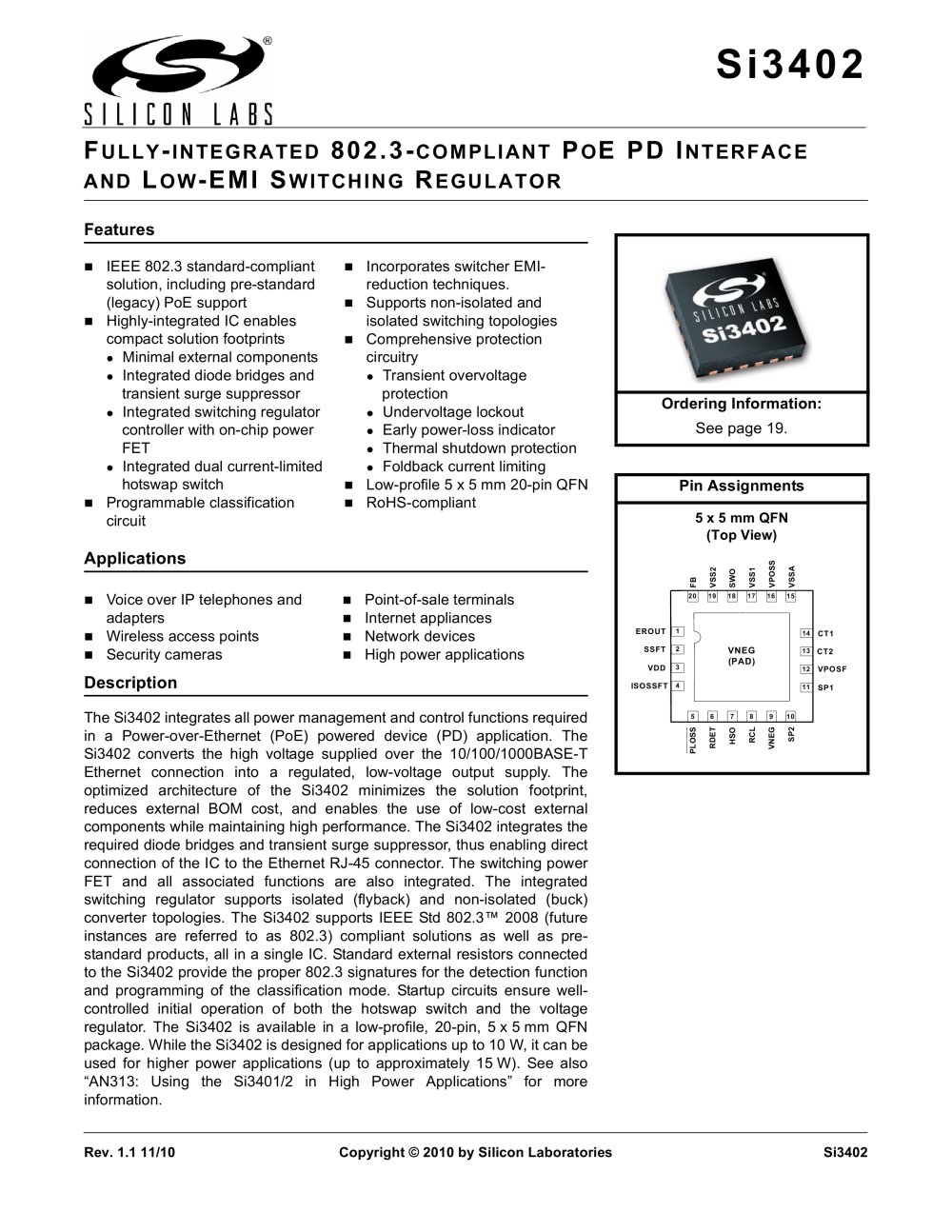

Rev. 1.1 11/10 Copyright © 2010 by Silicon Laboratories Si3402 Si3402 FULLY-INTEGRATED 802.3-COMPLIANT POE PD INTERFACE AND LOW-EMI SWITCHING REGULATOR Features Applications Description The Si3402 integrates all power management and control functions required in a Power-over-Ethernet (PoE) powered device (PD) application. The Si3402 converts the high voltage supplied over the 10/100/1000BASE-T Ethernet connection into a regulated, low-voltage output supply. The optimized architecture of the Si3402 minimizes the solution footprint, reduces external BOM cost, and enables the use of low-cost external components while maintaining high performance. The Si3402 integrates the required diode bridges and transient surge suppressor, thus enabling direct connection of the IC to the Ethernet RJ-45 connector. The switching power FET and all associated functions are also integrated. The integrated switching regulator supports isolated (flyback) and non-isolated (buck) converter topologies. The Si3402 supports IEEE Std 802.3™ 2008 (future instances are referred to as 802.3) compliant solutions as well as prestandard products, all in a single IC. Standard external resistors connected to the Si3402 provide the proper 802.3 signatures for the detection function and programming of the classification mode. Startup circuits ensure wellcontrolled initial operation of both the hotswap switch and the voltage regulator. The Si3402 is available in a low-profile, 20-pin, 5 x 5 mm QFN package. While the Si3402 is designed for applications up to 10 W, it can be used for higher power applications (up to approximately 15 W). See also “AN313: Using the Si3401/2 in High Power Applications” for more information. ƒÞ IEEE 802.3 standard-compliant solution, including pre-standard (legacy) PoE support ƒÞ Highly-integrated IC enables compact solution footprints ƒÜƒnMinimal external components ƒÜƒnIntegrated diode bridges and transient surge suppressor ƒÜƒnIntegrated switching regulator controller with on-chip power FET ƒÜƒnIntegrated dual current-limited hotswap switch ƒÞ Programmable classification circuit ƒÞ Incorporates switcher EMIreduction techniques. ƒÞ Supports non-isolated and isolated switching topologies ƒÞ Comprehensive protection circuitry ƒÜƒnTransient overvoltage protection ƒÜƒnUndervoltage lockout ƒÜƒnEarly power-loss indicator ƒÜƒnThermal shutdown protection ƒÜƒnFoldback current limiting ƒÞ Low-profile 5 x 5 mm 20-pin QFN ƒÞ RoHS-compliant ƒÞ Voice over IP telephones and adapters ƒÞ Wireless access points ƒÞ Security cameras ƒÞ Point-of-sale terminals ƒÞ Internet appliances ƒÞ Network devices ƒÞ High power applications Ordering Information: See page 19. Pin Assignments 5 x 5 mm QFN (Top View) EROUT SSFT RDET HSO RCL SP1 SP2 VPOSF CT1 PLOSS ISOSSFT VDD 5 6 7 8 9 10 20 19 18 17 16 15 1 2 3 4 11 12 13 14 VNEG VSSA VPOSS VSS1 SWO VSS2 FB VNEG (PAD) CT2
