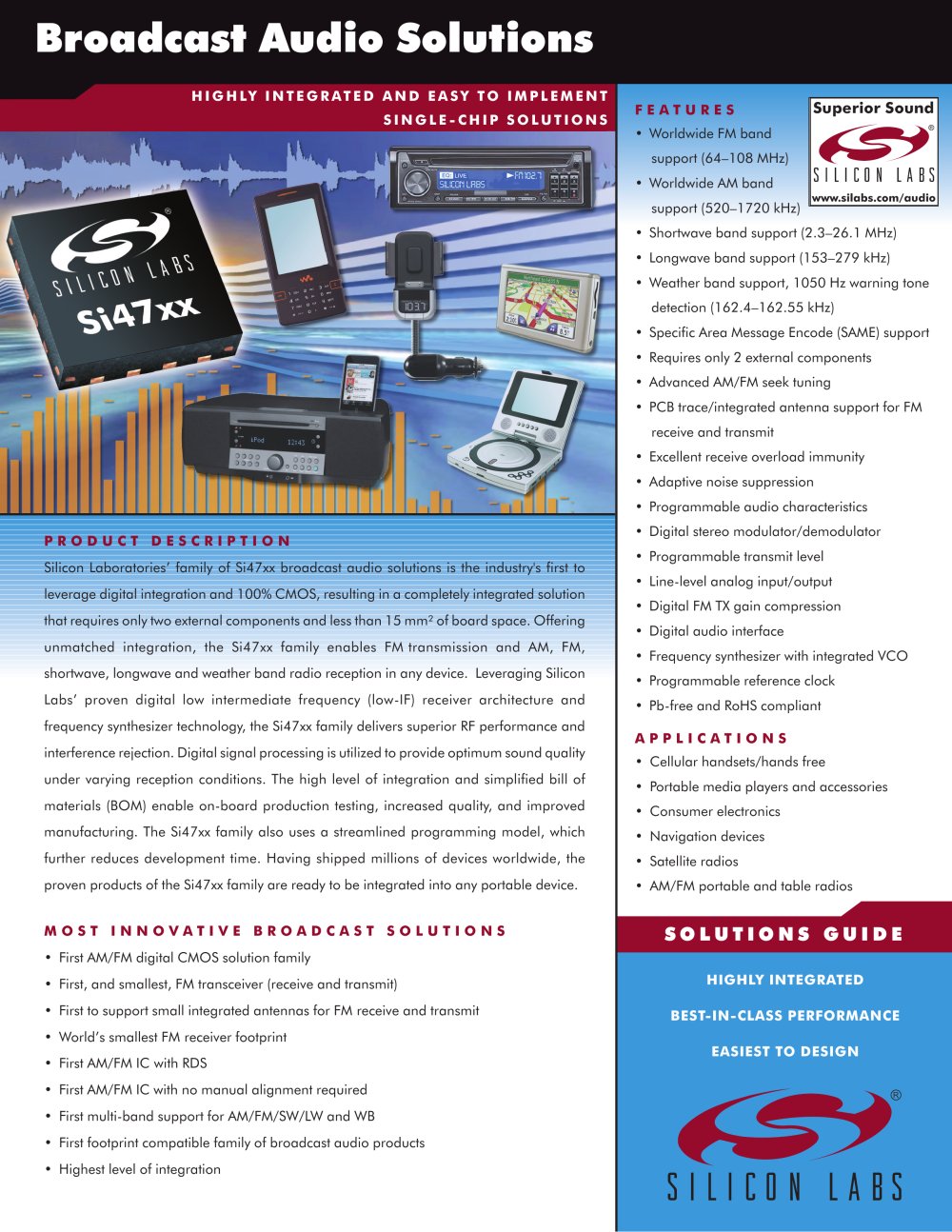

Broadcast Audio Solutions

• Worldwide FM band support (64-108 MHz)

• Worldwide AM band

support (520-1720 kHz)

• Shortwave band support (2.3-26.1 MHz)

• Longwave band support (153-279 kHz)

• Weather band support, 1050 Hz warning tone detection (162.4-162.55 kHz)

• Specific Area Message Encode (SAME) support

• Requires only 2 external components

• Advanced AM/FM seek tuning

• PCB trace/integrated antenna support for FM receive and transmit

• Excellent receive overload immunity

• Adaptive noise suppression

• Programmable audio characteristics

• Digital stereo modulator/demodulator

• Programmable transmit level

• Line-level analog input/output

• Digital FM TX gain compression

• Digital audio interface

• Frequency synthesizer with integrated VCO

• Programmable reference clock

• Pb-free and RoHS compliant

• Cellular handsets/hands free

• Portable media players and accessories

• Consumer electronics

• Navigation devices

• Satellite radios

• AM/FM portable and table radios

Silicon Laboratories' family of Si47xx broadcast audio solutions is the industry's first to leverage digital integration and 100% CMOS, resulting in a completely integrated solution that requires only two external components and less than 15 mm² of board space. Offering unmatched integration, the Si47xx family enables FM transmission and AM, FM, shortwave, longwave and weather band radio reception in any device. Leveraging Silicon Labs' proven digital low intermediate frequency (low-IF) receiver architecture and frequency synthesizer technology, the Si47xx family delivers superior RF performance and interference rejection. Digital signal processing is utilized to provide optimum sound quality under varying reception conditions. The high level of integration and simplified bill of materials (BOM) enable on-board production testing, increased quality, and improved manufacturing. The Si47xx family also uses a streamlined programming model, which further reduces development time. Having shipped millions of devices worldwide, the proven products of the Si47xx family are ready to be integrated into any portable device.

• First AM/FM digital CMOS solution family

• First, and smallest, FM transceiver (receive and transmit)

• First to support small integrated antennas for FM receive and transmit

• World's smallest FM receiver footprint

• First AM/FM IC with RDS

• First AM/FM IC with no manual alignment required

• First multi-band support for AM/FM/SW/LW and WB

• First footprint compatible family of broadcast audio products

• Highest level of integration

SOLUTIONS GUIDE
