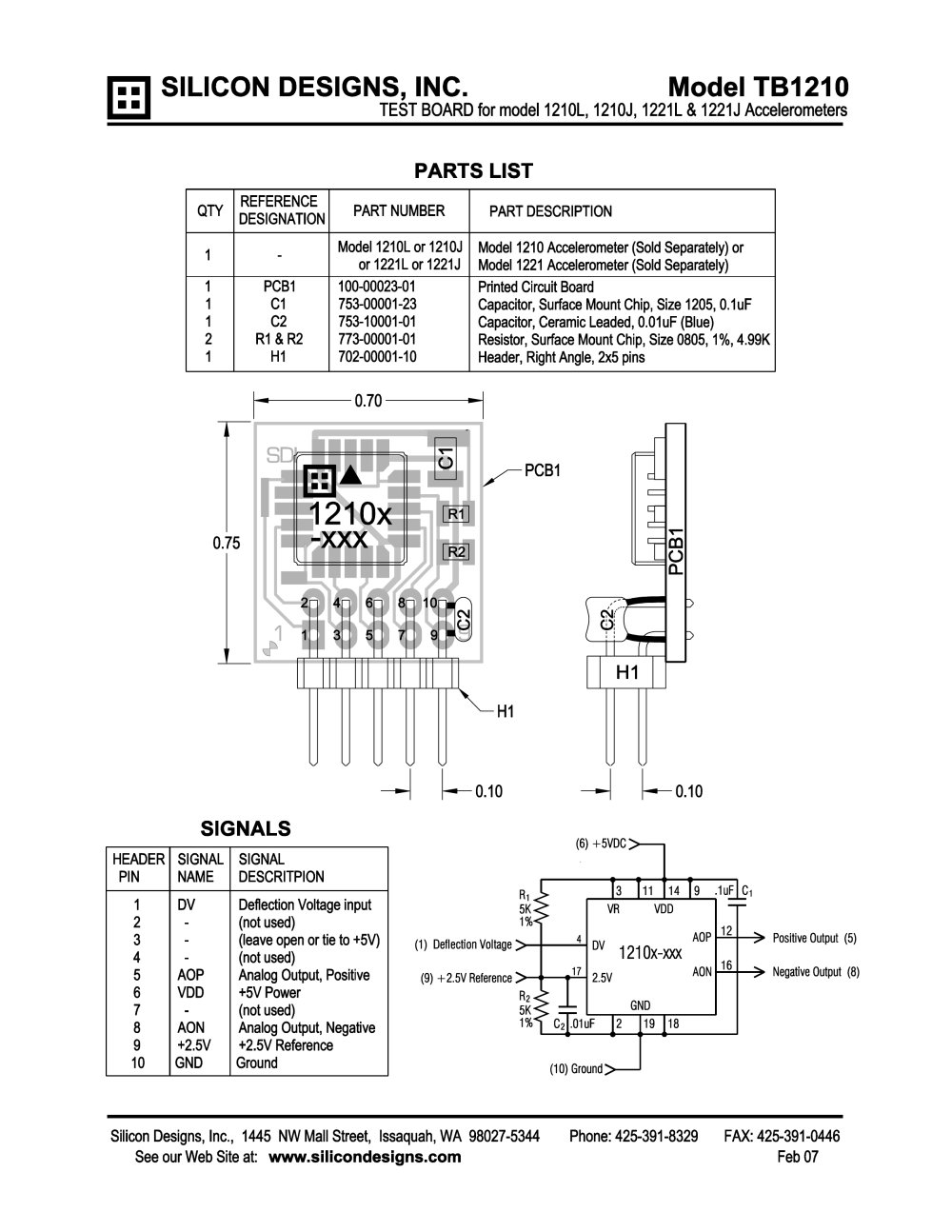

SILICON DESIGNS, INC. Model TB1210 TEST BOARD for model 1210L, 1210J, 1221L & 1221J Accelerometers PARTS LIST QTY REFERENCE DESIGNATION 1 - 1 PCB1 1 C1 1 C2 2 R1&R2 1 H1 PART NUMBER Model 1210L or 1210J or 1221Lor 1221J 100-00023-01 753-00001-23 753-10001-01 773-00001-01 702-00001-10 PART DESCRIPTION Model 1210 Accelerometer (Sold Separately) or Model 1221 Accelerometer (Sold Separately) Printed Circuit Board Capacitor, Surface Mount Chip, Size 1205,0.1 uF Capacitor, Ceramic Leaded, 0.01 uF (Blue) Résister, Surface Mount Chip, Size 0805,1%, 4.99K Header, Right Angle, 2x5 pins h -0.70- rr il O PCB1 0.75 1210I -xxx ix m _| [M] ■a 2n 4n 6n 8n 1Tncv,i * 1 H1 0.10 0.10 SIGNALS HEADER SIGNAL SIGNAL PIN NAME DESCRITPION 1 DV Deflection Voltage input 2 - (not used) 3 - (leave open or tie to +5V) 4 - (not used) 5 AOP Analog Output, Positive 6 VDD +5V Power 7 - (not used) 8 AON Analog Output, Négative 9 +2.5V +2.5V Référence 10 GND Ground I+5VDC: ni. 5K- (1) Deflection Voltage >— (9) +2.5V Référence >— r2 -5K< 1%' non VR 14 h ÏÛfIc, VDD -> Positive Output (5) -> Négative Output (8) DV AOP 1210X-xxx 2.5V GND AON 19 18 (10) Ground: Silicon Designs, Inc., 1445 NW Mail Street, Issaquah, WA 98027-5344 Phone: 425-391-8329 FAX: 425-391-0446 Seeour Web Site at: www.silicondesigns.com Feb07
